The Octree's Recursive Subdivision: How Spatial Indexing Reduces Draw Calls and Enables Seamless Open-World Streaming

When Epic Games deployed Unreal Engine 5's World Partition system in 2021, it finalized a shift that had been tearing down loading screens across the industry. The engine stopped loading discrete maps and started streaming coordinates. The stakes for this transition were absolute: a modern open world contains millions of individual objects, and sending all of them to the graphics processing unit (GPU) simultaneously would instantly crash the frame rate. The central processing unit (CPU) needed a ruthless, high-speed method to determine exactly what the player could not see.[6]

The solution to that bottleneck is spatial indexing, and its most prominent three-dimensional form is the octree. "Octrees are most often used to partition a three dimensional space by recursively subdividing it into eight octants," the 2004 Wikipedia specification notes. It is a mathematical filter that allows the engine to discard vast amounts of geometry in a single calculation, preserving the strict 16.6-millisecond rendering budget required to maintain 60 frames per second.[3]

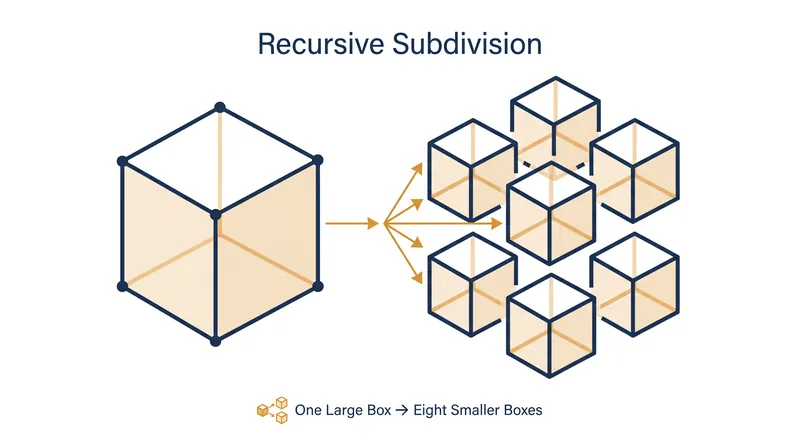

The mechanics of the octree rely on recursive subdivision. The engine places a single, massive bounding box around the entire game world. If that box contains more than a predetermined threshold of objects—often as few as 10 to 50—the box splits perfectly in half along its X, Y, and Z axes. This creates eight smaller cubes. The engine then evaluates each of those eight cubes. If a child cube still exceeds the object limit, it splits again into eight smaller cubes.[1]

This recursion continues until every object in the world is assigned to a leaf node—a cube small enough that it falls below the object threshold. The result is a hierarchical tree of space. Dense areas, like a cluttered interior room, might subdivide ten or twelve times, creating a tight grid of tiny boxes. Empty areas, like the open sky, might not subdivide at all, remaining as a single massive volume.[4]

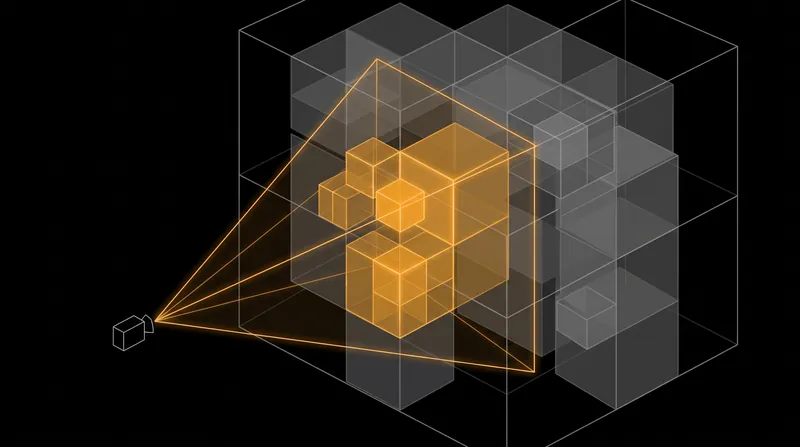

The performance gains from this structure are exponential. When the player's camera moves, the engine performs frustum culling—checking which objects intersect with the camera's field of view. Without an octree, the CPU would have to test every single object in the world against the camera frustum. In a world with 100,000 objects, that means 100,000 mathematical intersection tests per frame.[2]

With an octree, the engine tests the camera against the massive root box. It then tests the eight child boxes. If the camera is facing north, the four southern boxes are instantly discarded. Every object inside those southern boxes is ignored without ever being individually checked. "A spatial partition is a data structure that organizes objects by their positions," software engineer Robert Nystrom writes in Game Programming Patterns, noting that the goal is to quickly query which objects are near a specific location.[2]

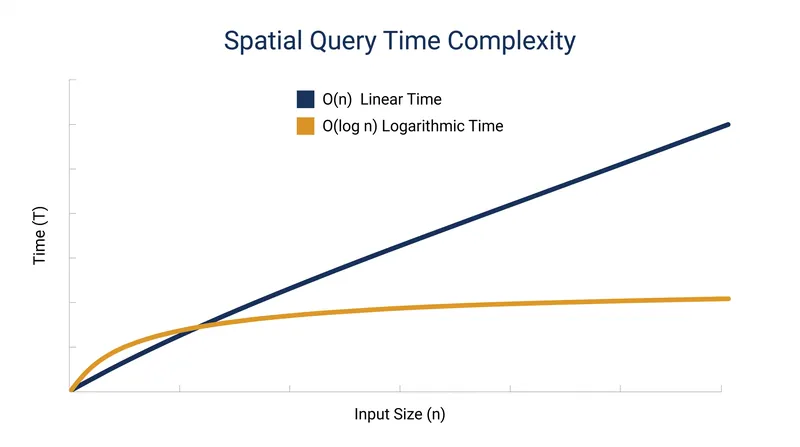

By discarding entire branches of the tree at once, the octree reduces the time complexity of spatial queries from linear time, or O(n), to logarithmic time, or O(log n). A query that would take 100,000 operations drops to roughly 17. This efficiency is what prevents the CPU from being overwhelmed by draw calls—the commands sent from the CPU to the GPU instructing it to render a specific mesh with a specific material.[4]

Draw calls are the primary bottleneck in modern rendering. While a modern GPU can process billions of polygons, the CPU can only issue a few thousand draw calls per frame before the pipeline stalls. By using the octree to aggressively cull invisible objects, the engine ensures that only the geometry directly in front of the camera generates a draw call.[1]

Implementing an octree introduces its own engineering trade-offs, primarily regarding dynamic objects. Static geometry—terrain, buildings, and large rocks—can be baked into an octree during the game's compilation phase. Because these objects never move, their position in the tree never changes, making queries exceptionally fast.[5]

Dynamic objects, such as players, vehicles, and physics props, complicate the structure. When an object moves across a boundary from one octant to another, the engine must remove it from the old node and insert it into the new one. If a game features thousands of moving projectiles, updating the octree can consume the exact CPU cycles the structure was designed to save.[5]

To mitigate this, engine architects often deploy hybrid systems. Static geometry lives in a heavily optimized, read-only octree, while dynamic objects are tracked in a looser, more easily updated spatial hash grid or a secondary, shallow octree. This bifurcation ensures that the static world streams seamlessly without bogging down the physics simulation.[6]

The octree also dictates how assets are streamed from the solid-state drive (SSD) into system memory. Because the tree inherently groups objects by proximity, the engine can use the player's position in the octree to predict which assets will be needed next. If the player enters a specific parent node, the engine begins loading the high-resolution textures for the child nodes in the background, eliminating the need for a loading screen.[4]

While newer technologies shift much of the culling burden directly to the GPU using hardware-accelerated compute shaders, the spatial index remains the foundational map of the digital world. The CPU still relies on recursive subdivision to manage physics collisions, audio propagation, and artificial intelligence navigation. The octree ensures that no matter how vast the simulation grows, the hardware only ever has to think about the space immediately surrounding the player.[6]
