Double Versus Triple Buffering: How GPU Swap Chains Trade Display Latency Against Screen Tearing

Double buffering minimizes input latency but forces players to choose between severe screen tearing or catastrophic frame-rate drops when the hardware misses a cycle. Triple buffering eliminates those drops by adding a third memory buffer, trading a guaranteed one-frame latency penalty for perfectly smooth motion.[1]

In competitive gaming, milliseconds dictate who wins a duel and who loses. The mechanism delivering those critical frames to the monitor is the swap chain, a queue of memory buffers managed by the graphics application programming interface.[2]

To understand the trade-off, you have to look at how a graphics processing unit talks to a display. Monitors refresh at fixed intervals, typically requiring a new image every 16.67 milliseconds for a standard 60Hz screen.[3]

The graphics card renders frames as fast as its silicon allows, but the monitor can only draw them sequentially from top to bottom. If the hardware overwrites the memory while the monitor is actively drawing, the image splits.

This split is called screen tearing, a jarring visual artifact where the top half of the screen shows the old frame and the bottom shows the new one. Fixing it requires synchronizing the hardware.[4]

The Double Buffering Baseline

The foundational solution to tearing is double buffering. The system allocates two distinct memory spaces: a front buffer that the monitor reads from, and a back buffer where the graphics card draws the next frame.[4]

When the rendering finishes, the system swaps the two buffers. If vertical synchronization is disabled, this swap happens instantly, giving the player the freshest possible data at the cost of continuous screen tearing.

Enabling vertical synchronization locks the buffer exchange to the monitor's vertical blanking interval, which is the microscopic pause between screen refreshes. This eliminates tearing but creates a severe pipeline bottleneck under heavy loads. The hardware must wait for permission to swap.[3]

If the graphics card takes 17 milliseconds to render a frame on a 60Hz display, it misses the strict 16.67-millisecond synchronization window. The back buffer remains full and waiting for the next refresh cycle to begin.

Because the back buffer is occupied, the graphics card has nowhere to put new data. It stalls completely, doing zero work while the monitor displays the old frame a second time. This creates a noticeable visual stutter.

This stall instantly cuts the effective frame rate in half, dropping a 60 FPS target to 30 FPS. The player feels this as a massive, jarring spike in input lag that ruins precision aiming.[3]

The Triple Buffering Trade-Off

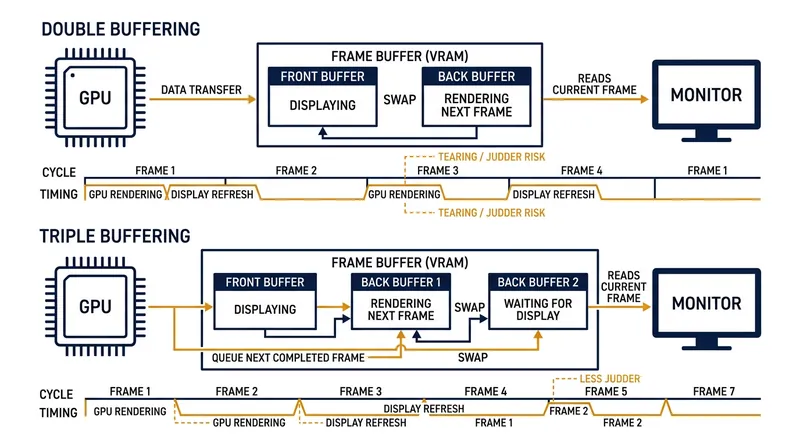

Triple buffering solves the stall by adding a second back buffer to the swap chain. When the first back buffer finishes and waits for the synchronization window, the graphics card does not stop working. It simply moves to the next slot.[4]

Instead, the hardware immediately begins rendering the next frame into the third buffer. The graphics pipeline stays fully fed, and the processor never sits idle waiting for the monitor to catch up. Efficiency remains at its absolute peak.

This eliminates the catastrophic frame-rate halving. If the graphics card misses a refresh window, the monitor simply grabs the most recently completed frame from the two available back buffers when it is ready. The user sees a continuous, fluid animation.[3]

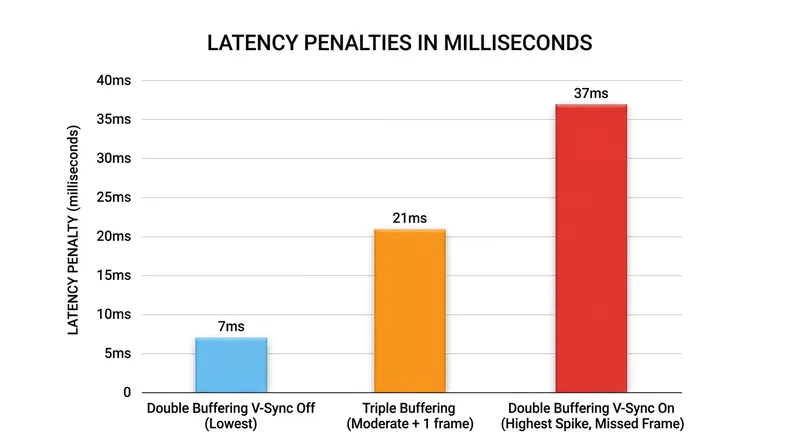

However, this smoothness comes at a strict cost to input latency. Because there is an extra buffer in the chain, the frame displayed on the screen is always one step older than it would be in an unlocked system.

At 60Hz, that extra buffer adds roughly 16.7 milliseconds of delay between a mouse click and the resulting action on screen. For a competitive esports professional, that permanent delay is often an unacceptable compromise. They prefer tearing over sluggish controls.[1]

Modern Flip Models

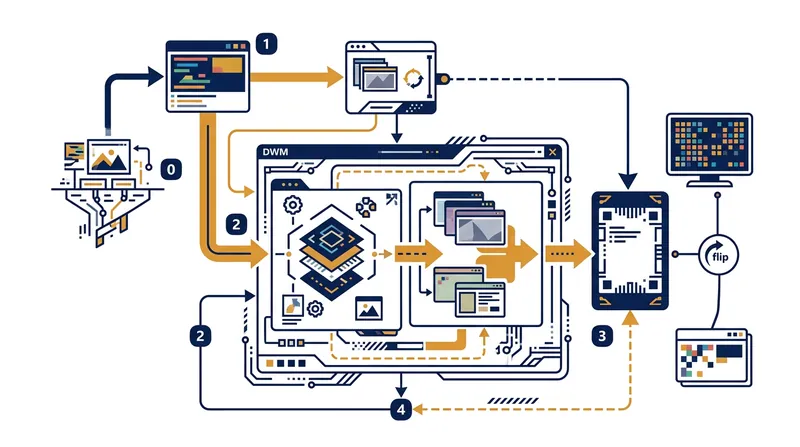

Modern graphics interfaces like DirectX 12 and Vulkan have evolved how these swap chains operate. Windows introduced the flip presentation model, replacing older bit-block transfer methods that copied data inefficiently across the system. This architectural shift changed the latency math.[2]

The flip model allows the operating system's desktop compositor to directly read the back buffer without copying the data. This reduces memory bandwidth and shaves precious milliseconds off the total presentation time. It represents a massive leap in rendering efficiency.[2]

Developers can also use advanced swap chain configurations like mailbox mode. In this setup, the graphics card continuously renders into the back buffers, but the system simply overwrites the older unpresented frame. Only the newest data survives the cycle.

Mailbox mode provides the tear-free experience of vertical synchronization alongside the unthrottled rendering speed of an unlocked pipeline. It wastes power by discarding frames, but it guarantees the monitor receives the absolute freshest data.

The Variable Refresh Solution

Hardware solutions have largely bypassed the software buffering debate for high-end gaming setups. Variable refresh rate technologies flip the entire paradigm by changing how the monitor behaves during the rendering cycle. The display becomes a slave to the graphics card.

Instead of forcing the graphics card to wait for the monitor's fixed schedule, variable refresh rate forces the monitor to wait for the graphics card. The display dynamically adjusts its timing to match the exact moment a frame finishes.

With variable refresh active, double buffering provides the ultimate sweet spot. Players get the lowest possible input latency without any screen tearing, rendering the traditional triple buffering latency penalty completely obsolete. It is the definitive solution for modern gaming.[1]

Unoptimized swap chains can still inflict 50 to 60 milliseconds of baseline input lag if configured poorly. Understanding the buffering pipeline remains critical for developers aiming to deliver a responsive interactive experience. Every millisecond counts when designing a fluid digital environment.[2]

The Memory Footprint

Triple buffering also demands a larger memory footprint from the graphics hardware. Storing an extra full-resolution color buffer, along with its associated depth and stencil data, consumes valuable video memory. This overhead scales directly with the display resolution.

While modern graphics cards boast massive memory pools that easily absorb this cost, older hardware or mobile chipsets can struggle. Developers must weigh this memory tax against the undeniable benefits of tear-free, stutter-free motion. Optimization requires balancing these strict hardware constraints.
