The 24-Bit Depth Buffer: How Floating-Point Precision Dictates Maximum Draw Distance and Causes Z-Fighting

When a distant mountain flickers violently against the sky in a massive open-world game, the graphics hardware is not struggling to render the geometry. The engine has mathematically run out of numbers to determine which rock sits in front of the other. This phenomenon, known as Z-fighting, is a direct consequence of how 3D space is translated into a 24-bit depth buffer.[8]

Every pixel rendered on a screen requires a depth value—a Z-coordinate—to ensure that objects closer to the camera obscure those further away. Historically, the industry standard has been a 24-bit integer format, which provides exactly 16,777,216 discrete depth values to map the entire visible world.[3][8]

While 16.7 million values sounds mathematically vast, the problem lies in how they are distributed. Standard graphics APIs like OpenGL and DirectX traditionally map depth using a reciprocal function (1/z).[3][7]

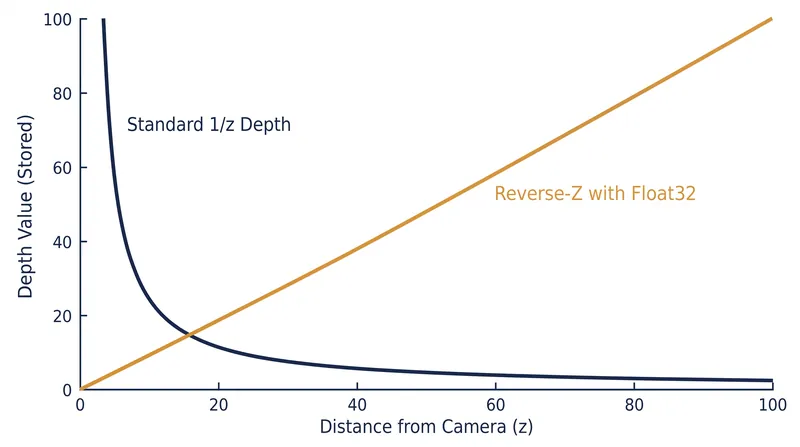

This non-linear distribution means that precision is heavily clustered right in front of the virtual camera. In a standard setup, fully 50 percent of all available depth values are consumed in the first two units of distance from the player's viewpoint.[1][5]

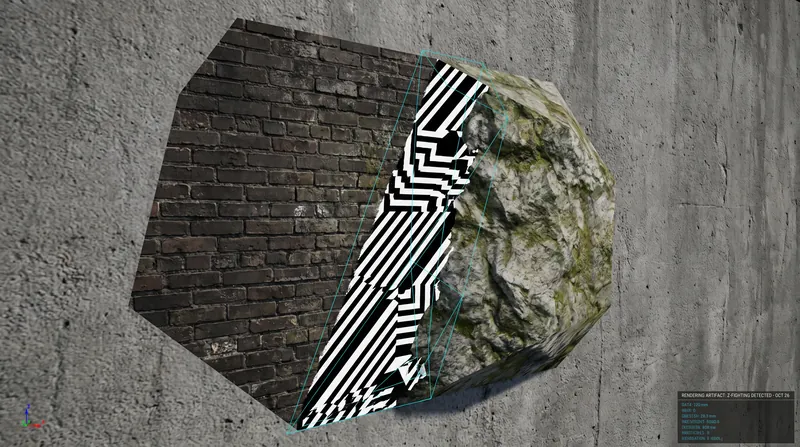

By the time the engine attempts to render a mountain 10,000 units away, it may only have a handful of depth values left to assign. If two polygons fall into the same mathematical bucket, the GPU cannot determine which is closer, causing them to rapidly alternate visibility frame by frame.[5][8]

The LearnOpenGL documentation notes that depth testing is a fundamental concept in 3D rendering, explaining that the depth buffer automatically discards fragments that are occluded by previously rendered geometry. But when that precision fails at a distance, developers have historically been forced into a compromise: push the "near plane" further away from the camera.[3]

Moving the near plane from 0.01 units to 0.1 units reallocates millions of depth values to the distant horizon. However, this introduces a new problem: objects too close to the camera, like a character's weapon or hands, get clipped and disappear entirely.[1][8]

In 2012, the developers of the Outerra engine, a planetary rendering platform, published a foundational analysis on "Maximizing Depth Buffer Range and Precision." They demonstrated that standard logarithmic depth buffers were insufficient for seamless ground-to-space transitions, requiring a fundamental rethink of how depth is calculated.[1]

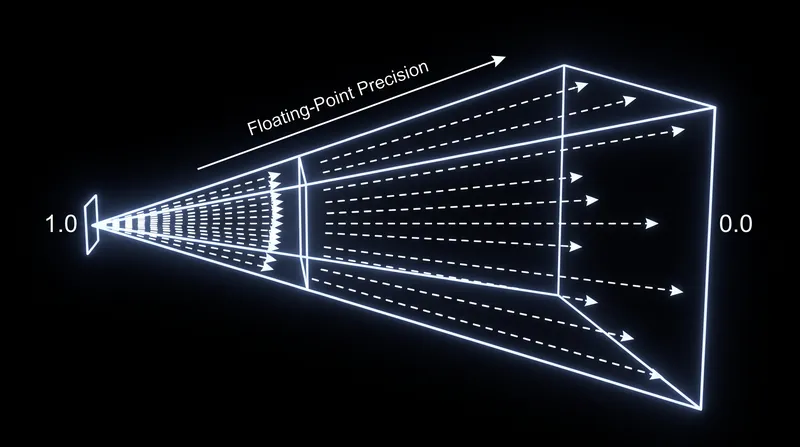

The solution that has since swept the industry is a mathematical inversion known as "Reverse-Z." Instead of mapping the near plane to 0.0 and the far plane to 1.0, the values are flipped.[4][7]

When combined with a 32-bit floating-point depth buffer, Reverse-Z fundamentally alters the precision curve. Floating-point numbers naturally have higher precision closer to 0.0, because the exponent allows for incredibly small fractions.[5][7]

By mapping the distant horizon to 0.0, the floating-point format's inherent precision perfectly counteracts the 1/z non-linear drop-off. The two curves cancel each other out, resulting in an almost perfectly linear distribution of depth values across the entire view frustum.[2][5]

In 2016, graphics engineer Nicolas Guillemot published a definitive guide to implementing "Reversed-Z in OpenGL," proving that the technique could virtually eliminate Z-fighting without requiring new hardware architectures.[7]

The transition has not been without friction. Implementing Reverse-Z requires rewriting core rendering shaders and changing how engines handle culling. As the Godot Engine team famously titled their update on the transition: "Introducing Reverse Z (AKA I'm sorry for breaking your shader)."[4]

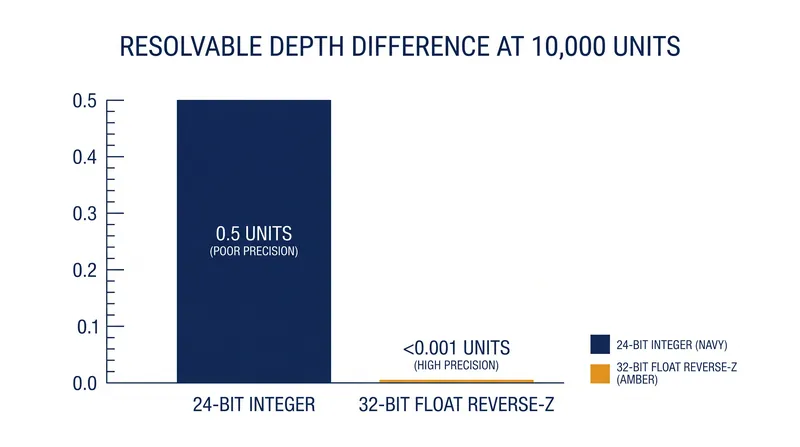

In 2020, a quantitative analysis by Zero Radiance confirmed the mathematical superiority of the technique, showing that a 32-bit float Reverse-Z buffer maintains sub-millimeter precision even at extreme distances, effectively solving the open-world rendering problem.[5]

By 2021, NVIDIA's technical team was publishing tools for "Visualizing Depth Precision," urging developers to adopt 32-bit floating-point depth to handle the massive scale of modern virtual environments.[2]

The Evergine development team documented their own engine-level shift in May 2026, noting that "Changing to Reverse Z-Buffer" was a necessary evolution to support massive industrial digital twins and expansive game worlds without visual artifacts.[6]

The result is a silent revolution in game design. Developers no longer have to build artificial fog banks or sightline-blocking mountains simply to hide depth precision errors from the player.[8]

The mathematical ceiling on draw distance has been lifted. The next verifiable checkpoint for the industry is the complete deprecation of 24-bit integer depth buffers in mobile graphics APIs, standardizing 32-bit float Reverse-Z across all hardware tiers.[8]
