The Inverse Kinematics (IK) Chain: How Game Engines Calculate Joint Angles to Place a Character's Foot on Uneven Terrain

A player drives their character up a jagged, rubble-strewn hill in a modern AAA title. The character's left foot lands on a raised rock, the knee bends deeply to absorb the height, and the right foot extends down into a rut. To place a foot on uneven terrain without clipping through the geometry, game engines use a mathematical process called Inverse Kinematics (IK). Instead of rotating the hip and knee to see where the foot ends up, the engine casts a ray to find the ground, pins the foot to that exact coordinate, and calculates backward to determine the joint angles required to connect the foot to the hip.

This reverse-engineering is the backbone of procedural animation. Since the release of foundational 3D titles like Half-Life in 1998, IK setups have allowed characters to react dynamically to environments that cannot be predicted during the authoring phase, as Epic Games notes in its Unreal Engine documentation.[1]

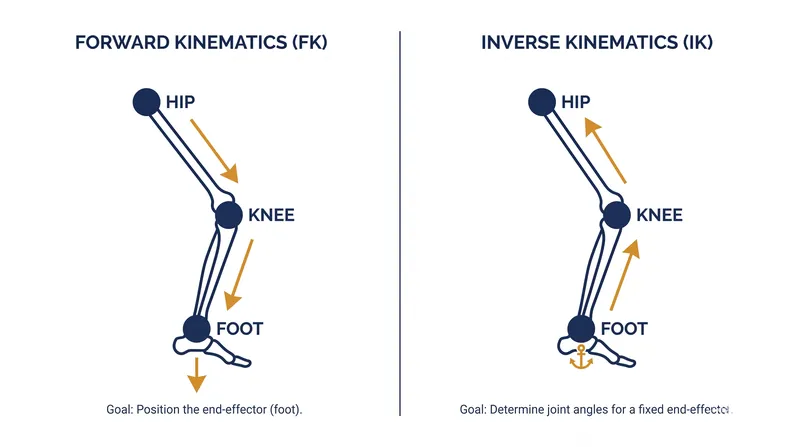

To understand why IK is necessary, you have to understand its opposite: Forward Kinematics (FK). In FK, an animator rotates the upper leg by 30 degrees, the lower leg by 45 degrees, and the ankle by 10 degrees. The foot ends up wherever the math puts it.

"Forward kinematics determines where the end effector will be if the joints are set to a specific position," explains RoboDK, a robotics programming firm whose principles apply directly to game engines. "There is only ever one solution to the forward kinematic equation."

But in a dynamic game world, the ground is never perfectly flat. If a game relies purely on FK, a character running up a 15-degree slope will either float in the air above the incline or clip their shins directly through the polygon mesh.

Enter the IK chain. In a standard humanoid rig containing over 100 individual bones, the foot is designated as the "end effector." The engine tells the end effector exactly where it needs to be in 3D space—for instance, the exact point where a physics raycast intersects with a stair step.[4]

The engine must then solve a complex geometric puzzle: what angles must the hip and knee assume to bridge the gap between the character's pelvis and the newly pinned foot?

"IK operations are computationally much more complex than forward kinematics," notes Wikipedia's technical breakdown of the subject. Because the system is working backward, it often encounters nonlinear constraints and multiple possible solutions.[5]

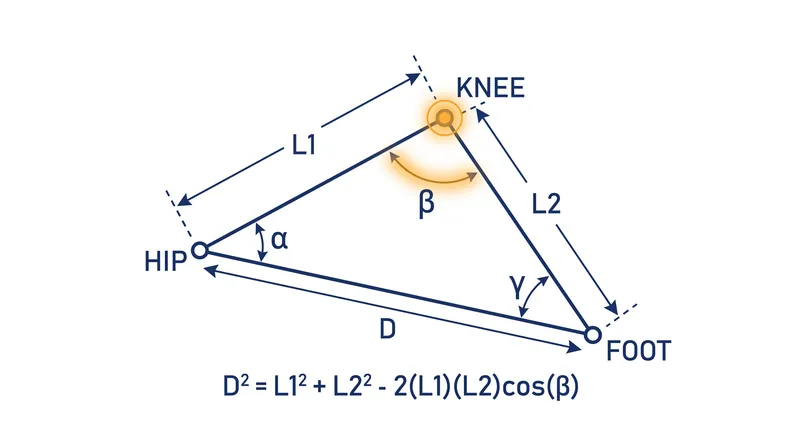

For a simple human leg, engines typically use a Two-Bone IK solver. This analytical approach uses the Law of Cosines to calculate the exact angles of the hip and knee. Because a leg only has two primary bending joints, the math can be reduced to a closed-form expression that solves almost instantly.[2]

"An analytical inverse kinematic solver will be able to take the desired end effector pose and (almost) immediately spit out the required joint positions," RoboDK states. This efficiency is why Two-Bone IK remains the industry standard for foot placement in real-time rendering.

However, the math gets exponentially harder when the chain involves more than two bones—such as a spine, a tentacle, or a robotic arm. In these cases, analytical geometry fails, and the engine must rely on iterative numerical solvers.[5]

Algorithms like Cyclic Coordinate Descent (CCD) or Forward and Backward Reaching Inverse Kinematics (FABRIK) handle these complex chains. They loop through the joints repeatedly, making micro-adjustments until the end effector reaches the target.

Valve's Source engine, for example, utilizes the $ikchain parameter to define these kinematic links, allowing developers to specify which bones belong to the chain and how much they are allowed to bend before breaking the illusion of anatomy.[3]

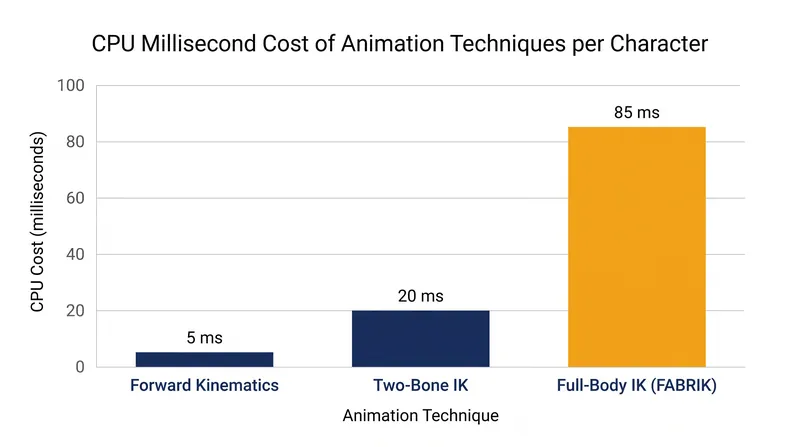

This mathematical heavy lifting comes with a strict performance budget. While a Two-Bone IK solver might cost a fraction of a millisecond per character, running Full-Body IK on a crowd of 50 non-player characters would instantly bottleneck the CPU.

To maintain a 60 frames-per-second target—which allows just 16.67 milliseconds of render time per frame—developers must aggressively optimize. They reserve complex IK for the player character and major enemies, while distant crowds revert to cheaper, baked FK animations.

The result is a seamless illusion. The player never sees the trigonometry firing under the hood; they only see a character who feels physically grounded in a virtual world, stepping over roots and rocks with lifelike precision.
