The Gradient Vector and Lattice: How Perlin Noise Creates Organic-Looking Procedural Terrain

In 2002, the mathematics of digital reality were fundamentally rewired. Ken Perlin, who had invented his namesake noise algorithm in 1983 to generate textures for the movie Tron, published a critical update that solved a fatal flaw in procedural generation. The stakes were high for the burgeoning 3D graphics industry: the original algorithm suffered from directional artifacts that made procedural terrain look like a faint, artificial grid when viewed from a distance. If game engines were ever going to render infinite, natural-looking worlds, the math had to change.[1][7]

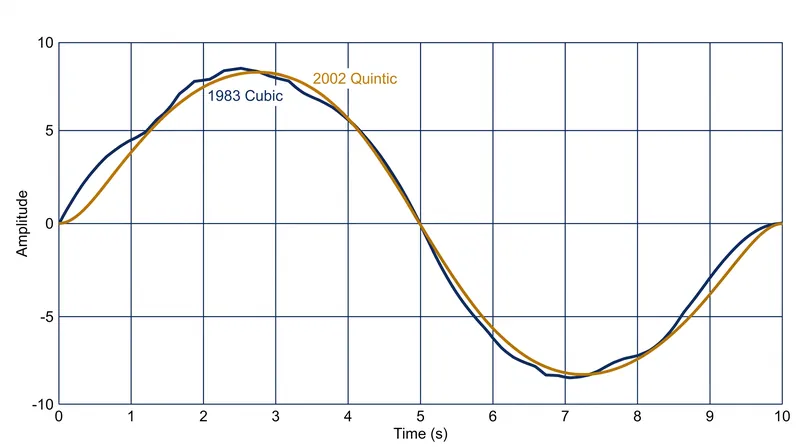

The fix was a structural mathematical shift. Perlin swapped the original cubic interpolation curve for a fifth-degree polynomial, specifically 6t^5 - 15t^4 + 10t^3. This seemingly minor adjustment erased the second-derivative discontinuities that caused the visible grid lines. The result was a foundational shift in how games render reality. Today, when a player steps into an infinite, procedurally generated world, they are walking on a mathematical lattice defined by that exact 2002 equation.[7][8]

To understand the mechanism, you have to look at the lattice. Perlin noise does not generate random static. Pure white noise produces chaotic, unreadable static—like a broken television. Nature is not pure static; it has structure, slopes, and continuous transitions. Instead of generating random pixels, the algorithm drops a mathematical grid—a lattice—over the digital space.[2][8]

At each intersection point of this grid, the algorithm assigns a random "gradient vector," which is essentially an arrow pointing in a random direction. The magic happens in the spaces between the grid points. When the game engine needs to determine the height of a mountain or the texture of a cloud at a specific pixel, it looks at the four surrounding grid corners in 2D space.[2][6]

It calculates the dot product between the gradient vectors at those corners and the distance vectors to the pixel itself. This math creates a smooth gradient of values that rise and fall organically, rather than spiking randomly. But the 1983 version used a smoothing function (3t^2 - 2t^3) that could not maintain a smooth transition when calculating lighting and surface normals. The math broke down at the edges of the grid cells, creating visible seams.[1][7]

The 2002 update, detailed extensively in NVIDIA's GPU Gems, replaced this with the quintic curve. It also optimized the gradient selection, replacing a costly random number generator with a bitwise hash function using a pre-calculated 256-element permutation table. This hash function is crucial for modern game engines. As developers on the Roblox Developer Forum note, the permutation table allows the engine to instantly look up a pseudo-random value without calculating it on the fly.[5][6][7]

This speed is what makes infinite worlds possible. The algorithm runs in constant time, O(1), meaning it takes the same amount of CPU cycles to generate the terrain right in front of the player as it does to generate terrain a million virtual miles away. When a player loads a new "seed" in a game, they are simply passing a new offset into that permutation table, guaranteeing a unique but mathematically stable world.[6][8]

The technique is not limited to terrain heightmaps. By layering multiple passes of Perlin noise—called "octaves"—at different frequencies and amplitudes, developers create complex textures. A low-frequency pass creates the rolling hills. A higher-frequency pass adds the boulders. An even higher-frequency pass adds the gravel. Combined, this "fractal Brownian motion" mimics the self-similarity found in real-world geology.[2][6]

Researchers are now pushing the algorithm beyond visual rendering. A 2024 paper on arXiv details how cellular automata combined with procedural noise can predict wildfire spread, using the organic gradients to model unpredictable wind and fuel patterns. Similarly, "Noisy Gradient Meshes" are being used to augment vector graphics, injecting procedural noise directly into the mesh topology to create scalable, resolution-independent textures that do not rely on pixel grids.[3][4]

The foundational papers from ACM SIGGRAPH and NVIDIA rely entirely on mathematical proofs and code implementations rather than direct quotations from engineers, but the impact of those proofs is visible in every modern game engine. Despite the rise of AI and neural rendering, the efficiency and predictability of the gradient lattice make it irreplaceable for real-time generation. The math guarantees that the world will be unique, infinite, and—most importantly—natural.[1][7][8]
