The β' Crystal Structure: How the Polymorphism of Solid Fat Dictates Aeration and Flakiness in Baked Goods

The commercial baker standing in front of a 50-quart mixer decides whether a cake will rise or a pie crust will shatter before a single drop of water hits the flour. That decision rests entirely on the physical structure of the fat they choose to drop into the bowl.

When they next formulate a laminated dough or a high-ratio cake, they are not just selecting a flavor profile; they are selecting a microscopic crystal lattice. If the fat molecules align incorrectly, no amount of mechanical mixing or chemical leavening will save the final product from collapsing on the baking sheet.

The mechanism that dictates this structural fate is known as fat polymorphism. The International Union of Pure and Applied Chemistry (IUPAC) defines a polymorphic transition as "a reversible transition of a solid crystalline phase at a certain temperature and pressure... to another phase of the same chemical composition with a different crystal structure."

For baking fats, this means the triglyceride molecules can pack themselves into multiple distinct shapes while remaining chemically identical. The fat in the bowl is not a single uniform solid, but a dynamic network of crystals that can change shape depending on how they were cooled and stored.[4]

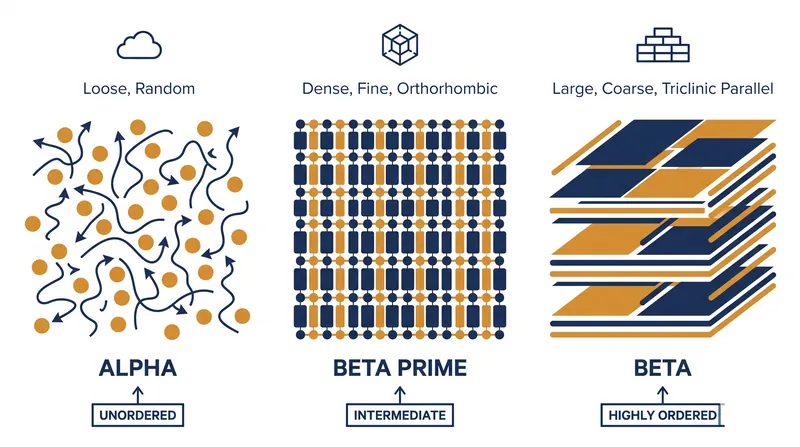

As liquid fat cools from a melt into a solid, its molecules align into one of three primary subcell structures: alpha (α), beta prime (β'), or beta (β). The specific form that emerges depends heavily on the cooling rate, the ambient temperature, and the specific fatty acid composition of the oil. A fat that is flash-cooled will form a completely different internal architecture than the exact same fat cooled slowly over several hours, fundamentally altering how it behaves when it meets flour and sugar.

The α crystals are the least stable of the three primary forms. Formed during rapid chilling, they are highly transient and quickly reorganize into more stable configurations as soon as the temperature shifts. Because they melt at lower temperatures and lack the necessary structural integrity to withstand mechanical mixing, food scientists and bakers do not rely on α crystals for dough aeration or lamination. They are merely a temporary stepping stone on the way to a more useful lattice.

The β' (beta prime) crystal is the foundational structure of the commercial baking industry. These crystals are tiny, measuring just a few micrometers across, and they pack together into a dense, fine-grained orthorhombic network. This specific microscopic geometry gives the fat a smooth, creamy texture that feels uniform to the touch, making it the ideal candidate for applications that require the fat to stretch, spread, and hold its shape under pressure without separating into oil and solid fractions.

Because β' crystals are so small and numerous, they excel at trapping air. During the creaming process, the sharp edges of sugar crystals drag through the shortening, carving out microscopic air pockets. The dense β' lattice is strong enough to hold those air bubbles in place without collapsing under the intense mechanical shear of an industrial mixer. The fat essentially forms a microscopic scaffolding around the air, locking it into the batter.

This aeration dictates the final volume and crumb of the baked good. When the batter hits the heat of the oven, the fat melts, but the trapped air bubbles remain, expanding as steam and leavening gases fill them. Commercial cakes typically contain 10% to 20% shortening by weight, and without the initial β' structure to hold that air, the gas simply escapes. The result is a cake that bakes into a dense, unappealing brick rather than a light, towering sponge.[5]

The β' structure is equally critical for laminated doughs, such as puff pastry, danishes, and croissants. In these applications, the fat must be highly plastic, meaning it can be rolled into paper-thin, continuous sheets without tearing the dough or breaking apart under the immense pressure of a commercial rolling pin. The fat must stretch alongside the gluten network, maintaining a distinct, unbroken barrier between the alternating layers of dough to ensure they do not fuse together before baking.

The fine, smooth texture of β' crystals allows the fat to stretch seamlessly without fracturing. During baking, these intact fat layers melt, creating bursts of steam that push the dough apart into distinct, flaky layers. A patent filed for a β'-stable pastry shortening notes that the fat must remain functional and untempered over a working temperature range of 50°F to 90°F to survive the rigorous lamination process without melting prematurely or shattering.[2]

Conversely, β crystals represent the most thermodynamically stable form of fat, but they are large, coarse, and tend to clump together into a triclinic parallel structure. When β' crystals are subjected to severe temperature fluctuations or prolonged storage, they often recrystallize into this larger β form. This transition destroys the smooth network, leading to a grainy texture that can ruin the mouthfeel and functional properties of a carefully formulated shortening.

Fats that naturally tend toward the β form, such as traditional lard or certain fully hydrogenated oils, do not trap air well and cannot form continuous thin sheets. Instead of spreading smoothly, they form distinct, separate chunks within a dough matrix. While this makes them entirely unsuitable for a delicate cake crumb or a continuously laminated croissant, this exact clumping behavior is highly prized in other specific corners of the pastry world where a different texture is the ultimate goal.

This clumping behavior is highly desirable for specific applications like pie crusts, which often contain over 30% fat by weight. When a β-tending fat is cut into flour, it remains in discrete, isolated pockets rather than coating the flour evenly. As the pie bakes, these pockets melt, leaving behind voids that create a shattered, crumbly flakiness rather than the uniform, aerated lift of a cake.[5]

Formulating the right fat requires controlling this polymorphism at the manufacturing level before it ever reaches the bakery. Palm oil naturally crystallizes into the β' form due to its specific ratio of palmitic and oleic acids, making it a staple in commercial shortenings. According to SMART Tbk, a major palm oil producer, achieving the correct structure requires strict thermal control: bakers must "allow the fat temperature to stabilise before lamination to achieve a stable β′ network ahead of lamination stress."[1]

The history of manipulating these crystals dates back to June 1911, when Procter & Gamble introduced Crisco, the first shortening made entirely of hydrogenated vegetable oil. By hardening liquid cottonseed oil, chemists were able to engineer a shelf-stable fat that mimicked the β' creaming properties of butter without the 20% water content. Because shortening is 100% fat, it creates no steam from water during the initial bake, fundamentally altering how the dough sets and allowing for a softer, more tender crumb.[5]

AI

Today, the industry is searching for ways to replicate these crystal structures without relying on highly saturated fats. In September 2026, researchers reported in Bioengineer.org that they had successfully used plant sterol bigels to rebuild fat crystal networks. This approach mimics the β' aeration capacity and structural support required for cookies, but significantly reduces the saturated fat load, offering a potential pathway to healthier commercial baked goods that do not sacrifice texture.[3]

The commercial transition toward these engineered bigels and tailored palm fractions marks the next phase of large-scale bakery formulation. When a manufacturer swaps out a traditional shortening for a lower-saturated alternative, the deciding metric is whether the new lipid can hold a stable β' lattice at a standard 70°F room temperature. If the crystal grows into a β form instead, the trapped air escapes, the delicate pastry layers fuse, and the entire product fails on the production line.[6]
