The Neutron Fluence and Displacement Per Atom (DPA) That Dictate a Reactor Pressure Vessel's Lifespan

Nuclear regulators evaluating the next wave of 80-year license extensions face a hard physical limit that no maintenance budget can bypass. While utilities can swap out steam turbines, upgrade control systems, and replace coolant pumps, the reactor pressure vessel—the massive, 8-inch-thick steel cylinder containing the nuclear core—cannot be replaced. Its structural survival dictates the absolute lifespan of the power plant, and that survival is governed by a microscopic accounting metric known as displacements per atom, or DPA.[4][7]

Inside the core, the fission of uranium-235 releases immense heat, but it also releases fast neutrons traveling at roughly 14,000 kilometers per second. These uncharged particles radiate outward, passing through the water coolant and striking the steel wall of the pressure vessel. The total accumulated traffic of these particles over decades of operation is measured as neutron fluence, typically expressed in neutrons per square centimeter.[1][5]

Fluence measures the traffic, but DPA measures the actual structural damage. When a fast neutron—defined by the ASTM International standard E0261 as having an energy greater than 1 mega-electron volt (MeV)—collides with an iron atom in the vessel wall, it transfers kinetic energy. If that energy exceeds the lattice binding energy of roughly 40 electron volts, the iron atom is violently knocked out of its position.[6]

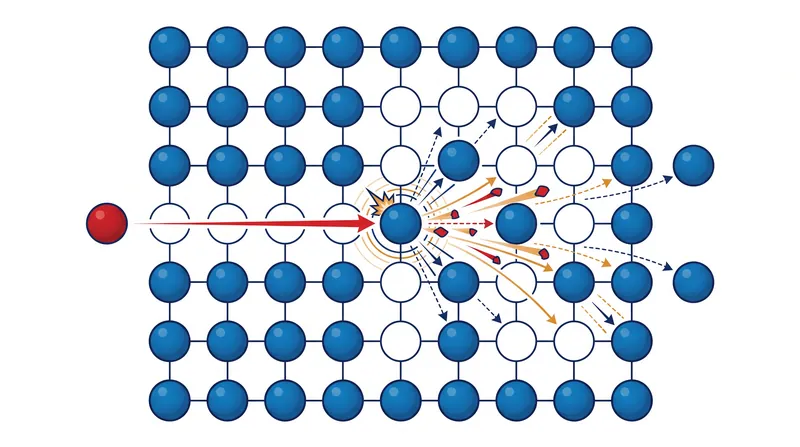

That primary knocked-on atom then ricochets through the surrounding steel matrix, striking other atoms like a cue ball breaking a rack of billiards. A single fast neutron strike can trigger a collision cascade that displaces hundreds of atoms before the kinetic energy dissipates as heat. The DPA metric quantifies this cumulative chaos: a value of 1 DPA means that, on average, every single atom in the steel lattice has been knocked out of its original position once.[1][7]

Commercial light-water reactors operate with thick water gaps that shield the vessel wall, meaning their lifetime DPA accumulation is relatively low compared to experimental fast reactors. Over a standard 60-year operating license, the inner wall of a commercial reactor pressure vessel typically accumulates a fast neutron fluence of 1 × 10^19 to 5 × 10^19 neutrons per square centimeter, which translates to roughly 0.015 to 0.08 DPA.[1][4]

While displacing a fraction of a percent of the atoms might sound trivial, the metallurgical consequences are profound. Most displaced atoms instantly fall back into empty lattice spaces, a process called recombination. However, a small fraction remain stranded between lattice points as "interstitials," leaving behind empty "vacancies." Over decades, these microscopic defects migrate and cluster together.[3]

These defect clusters act as roadblocks to the natural movement of dislocations within the steel. In standard metallurgy, the ability of dislocations to slide past one another is what gives steel its ductility—its ability to bend and absorb impact without shattering. As neutron irradiation pins these dislocations in place, the reactor vessel becomes harder, stronger, and significantly more brittle.[2][3]

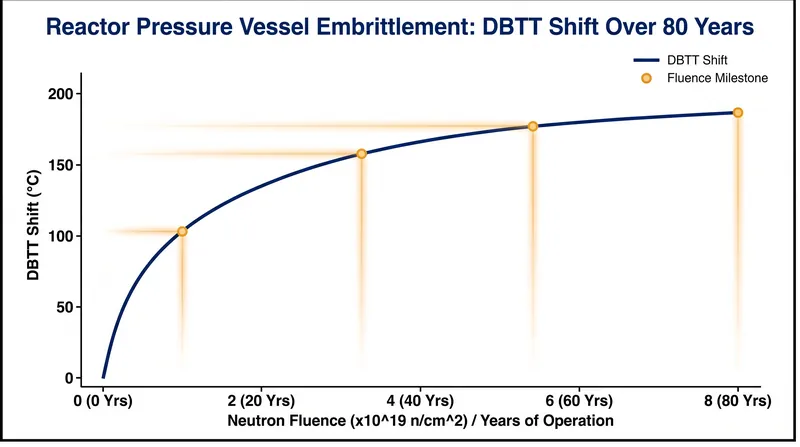

The primary operational consequence of this embrittlement is an upward shift in the steel's ductile-to-brittle transition temperature (DBTT). When the vessel was forged, it could remain ductile down to freezing temperatures. After 40 years of neutron bombardment, that transition temperature can shift upward by 30°C to over 100°C, depending on the exact copper and nickel impurities in the specific steel heat.[2][4]

This thermal shift creates a specific vulnerability known as pressurized thermal shock. If a reactor undergoes an emergency shutdown, cold water is injected into the core to cool it. If the vessel wall has become too brittle, the sudden thermal contraction against the high internal pressure could theoretically initiate a micro-crack, compromising the containment boundary.[2][7]

Because these foundational engineering standards and metallurgical studies consist entirely of mathematical frameworks and testing protocols, they contain no conversational quotes from researchers; however, their quantitative mandates dictate the industry's operational limits. Regulators require utilities to prove that the vessel's transition temperature remains safely below any plausible emergency cooling scenario.[2][6]

To track this invisible degradation, engineers rely on surveillance capsules. When the reactor is first built, small "coupons" of the exact same steel used to forge the vessel are loaded into capsules and suspended inside the reactor, closer to the core than the vessel wall itself. Because they sit closer to the fuel, these samples accumulate neutron fluence and DPA faster than the actual vessel.[4]

Every 10 to 15 years, a capsule is physically removed during a refueling outage. The highly radioactive steel coupons are transported to hot cells at facilities like Oak Ridge National Laboratory, where remote manipulator arms subject them to Charpy V-notch impact tests. By physically breaking the steel, metallurgists measure exactly how much the transition temperature has shifted.[1][4]

The data extracted from these capsules feeds directly into the VERLIFE guidelines and ASTM standards, dictating whether a plant can safely operate for another two decades. If the surveillance data shows the embrittlement curve flattening out, the regulator can grant an 80-year license. If the curve steepens, the plant must either undergo a highly complex thermal annealing process to heal the steel, or permanently shut down.[2][6]

To buy more time, utilities have universally adopted "low-leakage" core loading patterns since the late 1980s. By placing partially depleted uranium fuel assemblies on the outer perimeter of the core and keeping the fresh, highly reactive fuel in the center, operators create a buffer zone. This geometric optimization reduces the fast neutron flux hitting the vessel wall by up to 50 percent, drastically slowing the DPA accumulation rate.[5][7]

Looking forward to the 2030s, the industry is transitioning from purely destructive testing of surveillance capsules to hybrid non-destructive electromagnetic testing. As detailed in recent materials science evaluations, measuring changes in the steel's magnetic coercivity and electrical conductivity can provide real-time proxies for lattice damage. Until those methods are fully codified by regulators, the physical counting of displaced atoms remains the ultimate clock ticking down on the global nuclear fleet.[3][7]
