The Physics of How Concrete, Water, and Lead Shield Alpha, Beta, Gamma, and Neutron Radiation

The fundamental requirement for containing ionizing radiation is that the shielding material's atomic structure must match the specific physical interaction mechanism of the particle it is designed to halt. Mass alone cannot stop every threat. If a facility deploys high-density lead to block a neutron flux, the material will fail to capture the particles, allowing them to pass through while potentially generating secondary gamma radiation. As the Nuclear Regulatory Commission's foundational documentation on radiation basics outlines, the interactions of these emissions with matter depend entirely on their mass, charge, and kinetic energy. While the technical reference materials provided by the agency detail the mathematical frameworks of attenuation, they rely on quantitative data rather than direct qualitative statements from individual researchers. [1][1]

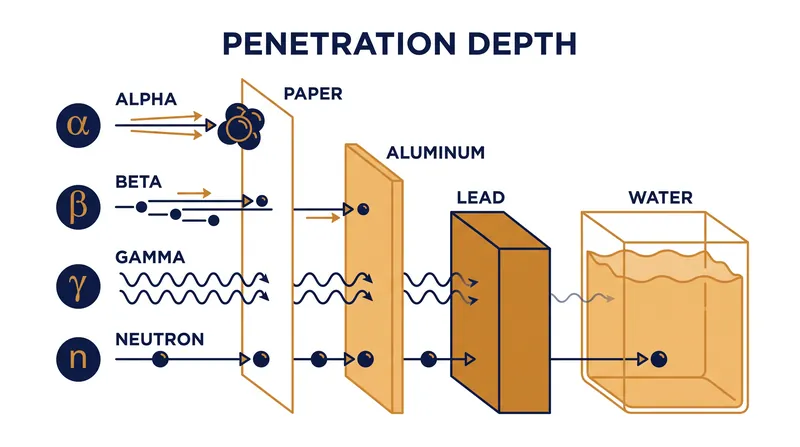

The physics of attenuation begins with particulate radiation: alpha and beta particles. Alpha particles, consisting of two protons and two neutrons, carry a +2 charge and possess substantial mass relative to other emissions. Because of this heavy charge, they interact intensely with the electron clouds of any material they encounter, stripping electrons and losing their kinetic energy rapidly. The Harvard Natural Sciences Lecture Demonstrations establish that alpha particles are halted by a single sheet of paper or the dead outer layer of human skin, making them an internal ingestion hazard rather than an external penetration threat. [3][3]

Beta particles—high-speed electrons or positrons—penetrate deeper than alpha particles but are still relatively easy to stop. However, the choice of shielding material introduces a secondary physical constraint. If a high-atomic-number (high-Z) material like lead is used to stop beta particles, the rapid deceleration of the electron produces Bremsstrahlung, or "braking radiation," emitting secondary X-rays. Therefore, low-Z materials like plastic, acrylic, or aluminum are preferred for beta shielding, as outlined by the Radiation Detection Company's 2023 material guidelines. [8][8]

Gamma rays present a fundamentally different challenge. As high-energy electromagnetic photons with no mass and no charge, they do not interact through Coulomb forces. Instead, they are attenuated through the photoelectric effect, Compton scattering, and pair production. The probability of these interactions increases dramatically with the electron density of the shielding material. Lead, with an atomic number of 82 and a density of 11.34 grams per cubic centimeter, provides an exceptionally dense electron cloud that efficiently absorbs these photons. [7][7]

The effectiveness of gamma shielding is quantified by its half-value layer (HVL)—the thickness required to reduce the radiation intensity by 50 percent. According to MarShield's 2022 attenuation data, the HVL of lead for a 1 megaelectron-volt (MeV) gamma source is approximately 0.9 centimeters. [7] To achieve the same 50 percent reduction using standard concrete, a facility would need roughly 6 centimeters of material. This makes lead the standard for volume-constrained environments like medical radiography rooms and compact transport casks. [6][6][7]

Neutrons, however, render lead highly ineffective. Because neutrons carry no electrical charge, they ignore the electron cloud entirely and interact only with the atomic nucleus. A fast neutron colliding with a heavy lead nucleus changes direction but loses almost no kinetic energy, much like a small marble bouncing off a bowling ball. This dynamic is detailed in the HyperPhysics framework developed at Georgia State University, which explains why heavy metals fail as neutron moderators. [4][4]

To slow down, or "moderate," fast neutrons, the shielding material must contain nuclei of a similar mass to the neutron itself. Hydrogen, consisting of a single proton, is the ideal moderator. When a neutron collides with a hydrogen nucleus, elastic scattering transfers a significant portion of the neutron's kinetic energy to the proton. Water, being rich in hydrogen (H2O), is therefore one of the most effective neutron shields available. [4][4]

This principle dictates the design of light-water reactors, where water serves simultaneously as the coolant and the neutron moderator. By submerging the reactor core in water, the fast neutrons emitted by fission are rapidly decelerated to thermal energies. This allows the nuclear chain reaction to continue while simultaneously shielding the external environment from the intense neutron flux generated within the core. [2][2]

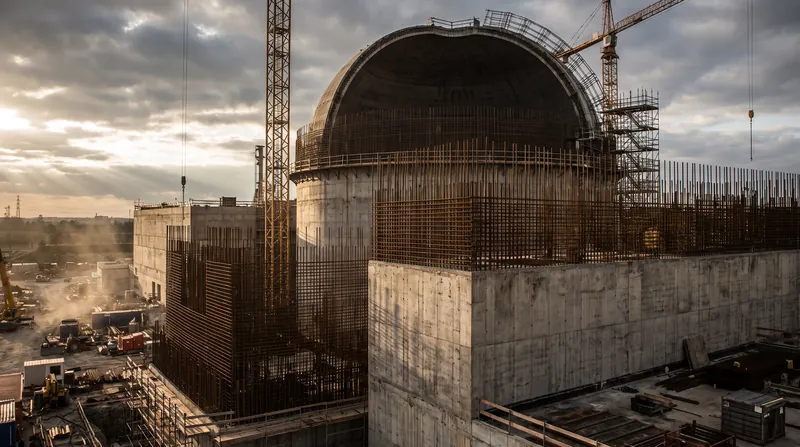

In commercial nuclear power plants and particle accelerators, facilities must shield against a mixed-field environment containing both high-energy gamma rays and fast neutrons. Neither lead nor water alone can handle this dual threat efficiently as a structural building material. The engineering solution is concrete. Standard concrete is a composite material that inherently provides both mass for gamma attenuation and hydrogen, bound in the hydrated cement paste, for neutron moderation. [9][9]

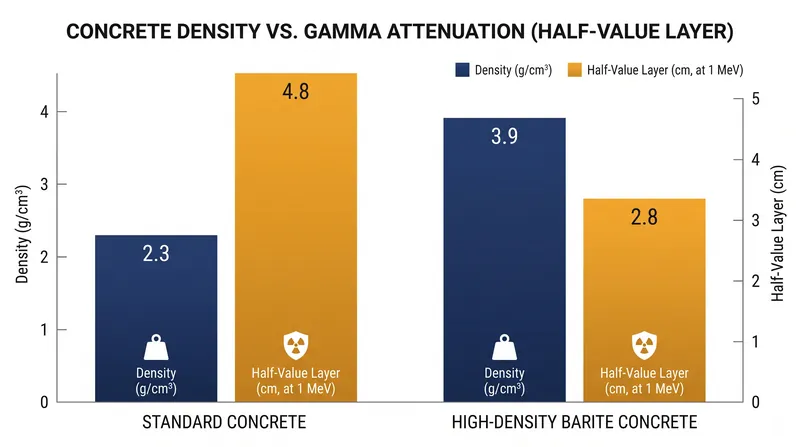

The shielding capacity of concrete can be engineered by altering its aggregate composition. A 2023 assessment evaluated five concrete types for compact radiation sources, finding that replacing standard sand and gravel with high-density aggregates like barite, magnetite, or steel punchings increases the concrete's density from 2.3 grams per cubic centimeter to over 3.9 grams per cubic centimeter. [5][5]

This high-density concrete significantly reduces the required wall thickness for gamma shielding while maintaining the hydrogen content necessary to thermalize neutrons. The International Atomic Energy Agency's DS524 safety standards mandate precise calculations of this water-to-cement ratio, noting that if the concrete loses its bound water due to prolonged thermal exposure, its neutron shielding capacity degrades exponentially. [2][2]

The physics of attenuation dictates that modern radiological containment is rarely a single material. A spent fuel dry cask utilizes a layered defense: an inner steel canister for structural integrity and alpha/beta containment, surrounded by a thick concrete overpack for gamma and neutron shielding, often supplemented with specialized hydrogenous polymers. By matching the atomic properties of the shield to the quantum mechanics of the particle, engineers ensure that the energy is safely dissipated before it reaches the external environment. [6][6]
