The Physics of Decay Heat: Why Nuclear Reactors Require Cooling Long After the Chain Reaction Stops

When a nuclear reactor SCRAMs and the fission chain reaction stops completely, the reactor core does not go cold. It continues to generate massive amounts of thermal energy—known as decay heat—because the newly created fission products in the fuel rods are highly radioactive and release energy as they decay.[2]

This lingering heat represents the fundamental engineering challenge of nuclear safety. It dictates the design of every emergency core cooling system and is the physical mechanism behind the most significant nuclear accidents in history. If the chain reaction is the engine of a nuclear plant, decay heat is the momentum that prevents it from stopping instantly.[7]

To understand decay heat, one must look at the fission process itself. When a uranium-235 atom splits, it releases about 200 megaelectron-volts (MeV) of energy. Most of this is instantaneous kinetic energy. However, about 6 to 7 percent of the total energy is delayed, locked inside unstable fission fragments like iodine-131, cesium-137, and strontium-90.[2]

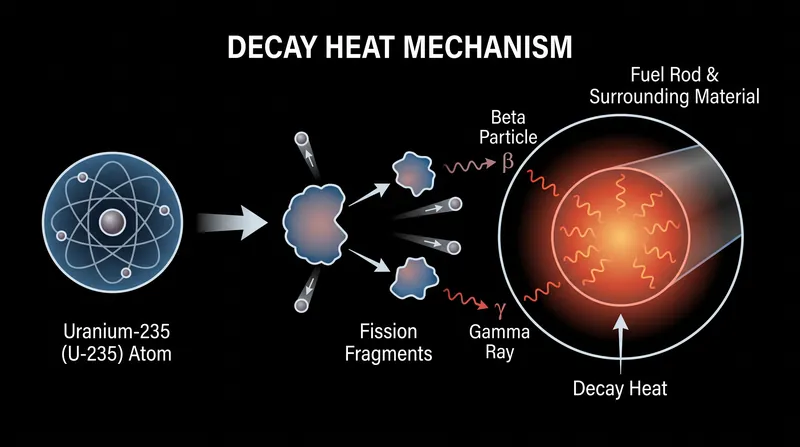

These fragments undergo beta decay, releasing high-energy electrons and gamma rays that strike the surrounding fuel and cladding, converting their kinetic energy into heat. Because there are hundreds of different isotopes, each with its own half-life, the heat does not drop off in a simple single exponential curve.[3]

In 1948, physicists Katharine Way and Eugene Wigner formulated the Wigner-Way equation to approximate this complex statistical decay. They found that the aggregate heat drops off roughly as an inverse power of time. "The amount of decay heat being generated in a fuel assembly at any time after shutdown can be exactly calculated by the determination of the number of fission products present at the time of shutdown," notes Nuclear-Power.com.[3]

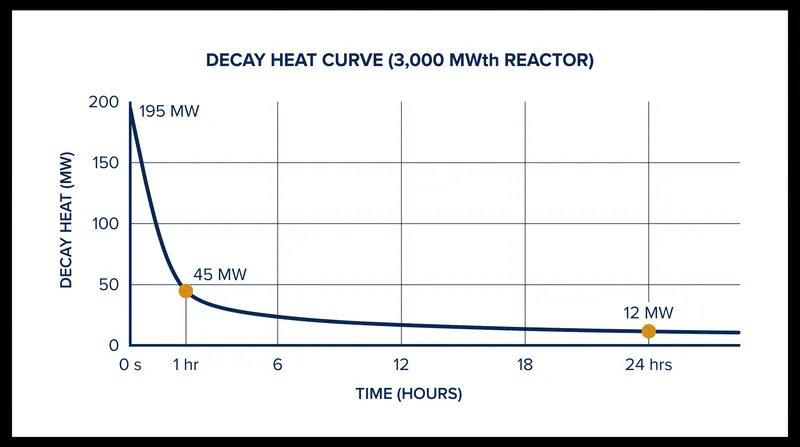

Quantitatively, the numbers are staggering. For a standard commercial light-water reactor operating at 3,000 megawatts thermal (MWth), the decay heat immediately after shutdown is about 6.5 percent of full power, or roughly 195 megawatts.[2][4]

One hour after shutdown, the short-lived isotopes have burned themselves out, and the heat load drops to 1.5 percent, or 45 megawatts. After 24 hours, it falls to 0.4 percent, or 12 megawatts. While this is a steep decline, 12 megawatts is still enough energy to boil away thousands of gallons of water per hour.[2][7]

This is why reactors require continuous, active cooling. The U.S. Nuclear Regulatory Commission mandates that every light-water reactor possess an Emergency Core Cooling System (ECCS) capable of maintaining the core at an acceptably low temperature. The NRC notes that "Decay heat removal (DHR), residual heat removal (RHR), and shutdown cooling (SDC) are common names for systems used to cool the reactor coolant system (RCS) during some phases of shutdown operation."[1]

Systems like the Reactor Core Isolation Cooling (RCIC) system in boiling water reactors are designed specifically for this phase. The RCIC uses the decay heat's own steam to drive a turbine pump, injecting makeup water into the vessel even if all off-site power is lost.[6]

If these systems fail, or if gas accumulation blocks the coolant flow, the consequences are severe. In 2008, the NRC issued Generic Letter 2008-01 to address gas accumulation in emergency core cooling systems, warning that voids in the piping could render the pumps inoperable when they are needed most. Without water to carry the heat away, the zirconium cladding surrounding the fuel pellets will overheat, oxidize, and eventually melt.[1][5]

Advanced reactor designs, such as sodium-cooled fast reactors, attempt to solve the decay heat problem through passive safety. The International Atomic Energy Agency highlights that "Decay heat removal includes a combination of providing coolant flow, heat rejection, and keeping the core covered," and evaluates new systems that use natural convection to remove heat through secondary sodium loops, reducing reliance on active pumps.[5]

The physics of decay heat means that shutting down a nuclear reactor is only the first step in securing it. The reactor's "memory" of its power history means that the cooling systems must operate flawlessly for days, weeks, and months after the control rods are fully inserted.[4]
