Fast Neutrons Sputter Cladding and Displace Lattice Atoms, Capping Reactor Fuel Lifespans

When a utility company powers down a light water reactor to replace its core, the discharged assemblies are still packed with viable fissile material. The uranium-235 pellets have barely been consumed, yet they must be permanently removed from the active cycle. The limitation lies entirely in the engineered containment vessel.[2][6]

The containment barrier is formed by zirconium alloy tubes, which must survive an extreme environment of heat, pressure, and radiation. While zirconium is highly resistant to water corrosion and allows slow neutrons to pass through seamlessly, it is highly vulnerable to high-energy kinetic impacts. This vulnerability ultimately dictates the lifespan of the entire assembly.[1][6]

Inside the reactor core, the conditions are punishing. The cladding serves as the primary barrier between the radioactive fuel pellets and the high-pressure water coolant. It must maintain its precise geometry to ensure coolant can flow freely between the rods, preventing the core from overheating.[2][6]

The physics of the collision cascade

When a uranium atom splits, it releases fast neutrons carrying kinetic energies above 1 megaelectron-volt. These particles do not just sustain the chain reaction; they slam violently into the zirconium atoms comprising the cladding wall. The impact transfers massive kinetic energy to the metal's crystalline lattice.[1][6]

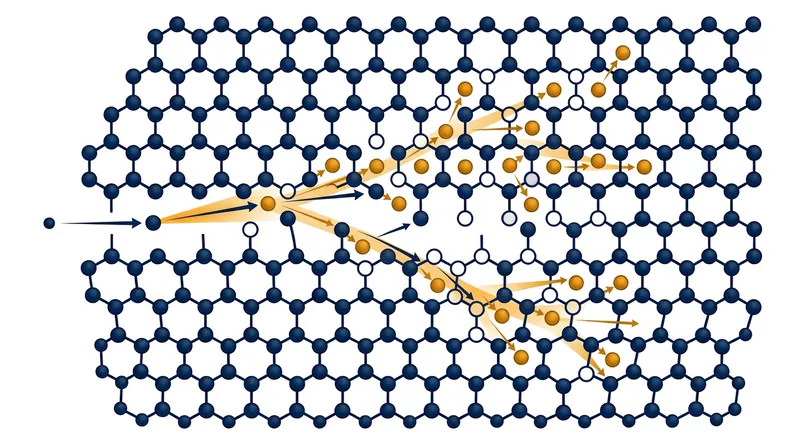

A single fast neutron strikes a zirconium atom with enough force to knock it completely out of its structural position. This primary knock-on atom then acts like a microscopic billiard ball, ricocheting through the surrounding lattice and displacing dozens of other atoms. This chain reaction of kinetic impacts is known as a collision cascade.[1][6]

Each displaced atom leaves behind an empty space, known as a vacancy, and comes to rest squeezed between other atoms, creating an interstitial defect. Together, they form a Frenkel pair. While many displaced atoms eventually vibrate back into empty slots, a significant fraction remain permanently stranded out of position.[1][6]

It is crucial to distinguish between the thermal neutrons that sustain fission and the fast neutrons that cause damage. Thermal neutrons have been slowed down by the water moderator to energies of a fraction of an electron-volt. Fast neutrons, fresh from the fission event, carry millions of times more kinetic energy.[2][6]

Measuring destruction by the atom

Materials scientists quantify this structural devastation using a metric called displacements per atom. It measures the average number of times every single atom in a material has been violently ejected from its lattice site. In a typical light water reactor, the cladding accumulates damage at a staggering rate.[1][6]

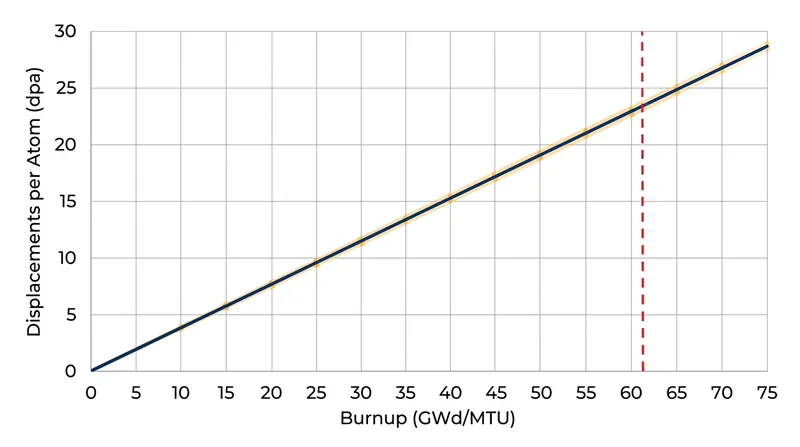

By the time a fuel rod reaches its regulatory retirement age, its cladding may have sustained 20 to 28 displacements per atom. This means that, on average, every single zirconium atom in the metal tube has been knocked out of its position and relocated more than two dozen times. The original crystalline structure has been entirely rearranged.[1][6]

At the outer surface of the cladding, this kinetic bombardment causes a phenomenon known as fast neutron sputtering. When collision cascades reach the boundary of the metal, the momentum ejects zirconium atoms entirely out of the material and into the surrounding coolant. This atomic erosion slowly thins the protective wall over years of operation.[3][6]

This sputtering effect is not uniform across the entire fuel rod. It is highly concentrated in the regions of the core experiencing the most intense neutron flux, typically the middle third of the assembly. As the cladding thins unevenly, it creates localized stress concentrations that serve as focal points for future mechanical failure.[3][6]

The intense radiation also forces chemical changes within the alloy itself. Zirconium cladding contains small amounts of tin, iron, and niobium to improve its strength. Under severe neutron flux, these alloying elements are knocked out of their intended distributions, forming unintended clusters that further weaken the material's structural cohesion.[1][6]

Beyond physical displacement, fast neutrons also trigger nuclear transmutation within the cladding. When a zirconium or niobium atom absorbs a neutron, it can become unstable and decay into an entirely different element, such as molybdenum. This chemical alteration introduces foreign atoms into the lattice, further degrading the alloy's original engineered properties.[5][6]

Swelling, creeping, and snapping

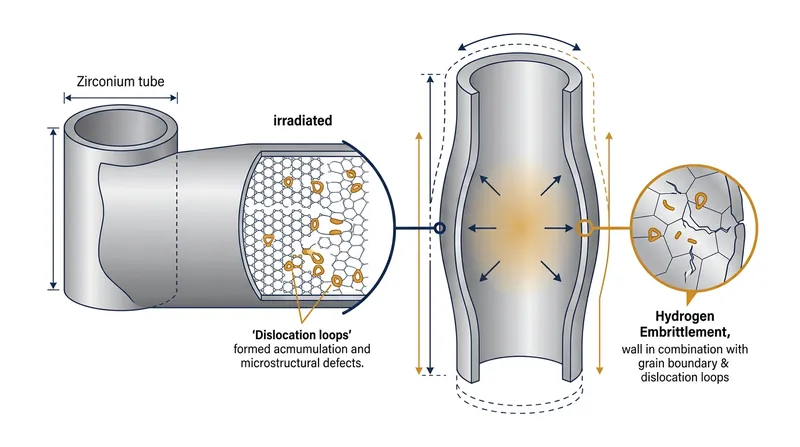

Deep inside the metal, the accumulation of vacancies and interstitial atoms causes the cladding to physically distort. The stranded atoms cluster together to form microscopic dislocation loops, which warp the surrounding crystal lattice. As these loops multiply, the bulk material begins to swell and change its macroscopic shape.[1][6]

This radiation-induced distortion manifests as irradiation growth, where the zirconium tube permanently elongates along its vertical axis without any applied mechanical stress. If a fuel rod grows too much, it can bow or warp, restricting the vital flow of cooling water through the reactor assembly.[1][6]

Simultaneously, the constant neutron flux accelerates irradiation creep. Inside the rod, fission gases like xenon and krypton build up, exerting immense outward pressure on the cladding. The radiation-softened lattice slowly stretches outward under this pressure, ballooning the tube and bringing it dangerously close to neighboring rods.[2][6]

The most critical consequence of this atomic rearrangement is a severe loss of ductility. The pristine zirconium alloy, initially tough and flexible, becomes rigid and brittle as the dislocation loops pin the metal's internal slip planes in place. The yield strength increases, but the material loses its ability to bend without snapping.[1][6]

The radiation damage is compounded by a chemical assault from the outside. As the zirconium reacts with the high-temperature water coolant, it absorbs hydrogen atoms into its matrix. These hydrogen atoms migrate through the radiation-damaged lattice and precipitate as solid zirconium hydrides, which act like microscopic glass shards embedded in the metal.[1][6]

The combination of atomic displacement, fast neutron sputtering, and hydrogen embrittlement creates a synergistic failure mechanism. The dislocation loops make the metal rigid, while the hydrides provide perfect initiation sites for microscopic cracks. Under the immense pressure of the internal fission gases, these cracks can rapidly propagate through the weakened tube wall.[1][6]

The operational margins are constantly monitored to ensure these combined degradation mechanisms do not compromise the core. Engineers use sophisticated predictive models to track the accumulated displacements per atom and the corresponding loss of ductility. When the models indicate the cladding is approaching its mechanical limit, the fuel must be discharged.[1][6]

The regulatory burnup ceiling

The nuclear industry measures the lifespan of a fuel rod in burnup, representing the thermal energy extracted per metric ton of uranium. Currently, the United States Nuclear Regulatory Commission limits peak rod average burnup to 62 gigawatt-days per metric ton. This limit is strictly enforced to prevent catastrophic cladding failure.[2][6]

Regulators require that the cladding remain intact not only during normal operation but also during hypothetical loss-of-coolant accidents. If a brittle, highly irradiated zirconium tube were subjected to a sudden temperature spike, it could shatter. A ruptured tube would release highly radioactive fission products directly into the reactor's primary coolant loop.[4][6]

At high burnup levels, the uranium fuel pellets themselves begin to fracture and pulverize. If the brittle cladding were to burst during an accident, these fine radioactive particles could be dispersed into the coolant. Preventing this fuel fragmentation and dispersal is a primary reason the burnup limit remains firmly in place.[2][6]

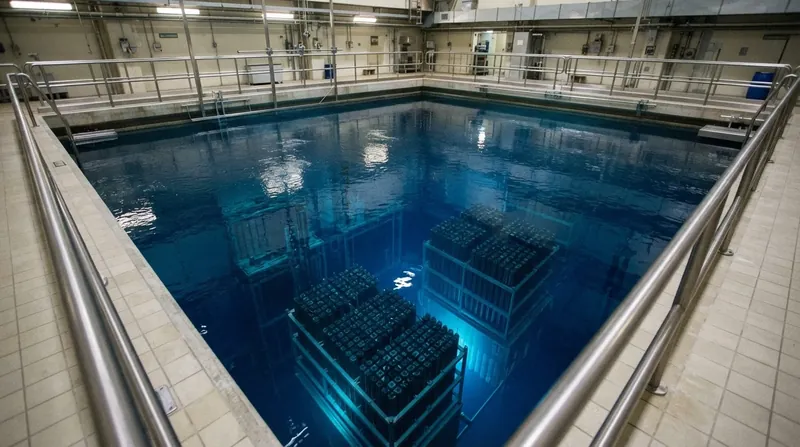

The structural integrity of the cladding must also survive decades of post-reactor life. Spent fuel is transferred to water pools and eventually to dry storage casks, where the zirconium must continue to contain the radioactive pellets. Heavily degraded cladding complicates this long-term storage, as the brittle metal is more susceptible to cracking during transport.[2][6]

The push for accident-tolerant fuels

Reactor operators are highly motivated to push the burnup limit higher. Extracting more energy from each assembly would reduce the volume of nuclear waste generated and significantly lower fuel purchasing costs. However, standard zirconium alloys simply cannot survive the additional displacement damage required to reach this milestone.[4][6]

To break this physical ceiling, the industry is developing accident-tolerant fuels. One leading approach involves coating the traditional zirconium tubes with a thin layer of chromium. This metallic shield provides a hardened barrier against surface sputtering and high-temperature oxidation, though the underlying zirconium still suffers bulk lattice displacement.[4][6]

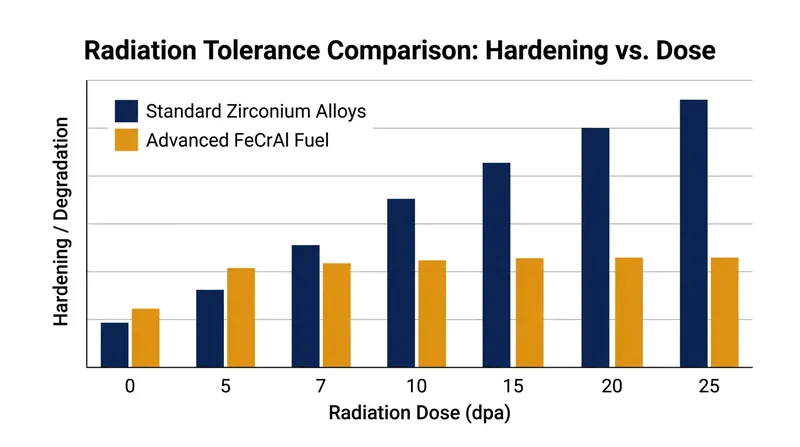

A more radical alternative replaces zirconium entirely with advanced iron-chromium-aluminum alloys. These ferritic steels exhibit a much higher tolerance for radiation damage, with their hardening effects saturating at lower displacement levels. While they absorb slightly more thermal neutrons, their robust lattice structure could finally allow reactors to burn a much larger fraction of their uranium.[4][6]

The financial cost of this material limitation is staggering. Because fuel assemblies must be replaced while the vast majority of their energy remains, utilities spend billions of dollars annually procuring fresh uranium and managing the premature waste. Overcoming the cladding bottleneck is the single most lucrative materials science challenge in the nuclear sector.[2][6]

Until these advanced materials are fully licensed and deployed, the global nuclear fleet remains bound by the limits of zirconium. The physics of the collision cascade dictate that reactors must continue to discard vast amounts of viable energy. The ultimate lifespan of nuclear fuel will always be determined by the endurance of the metal that holds it.[1][6]
