Why the F = C - P + 2 Formula Proves That Water Can Only Exist as a Solid, Liquid, and Gas at a Single Triple Point

Water can only exist as a solid, liquid, and gas simultaneously at exactly 0.01 degrees Celsius and 611.657 pascals of pressure because the laws of thermodynamics leave it zero degrees of freedom to do otherwise. The formula F = C - P + 2, known as Gibbs' phase rule, dictates that when a single substance exists in three states, the math resolves to exactly zero, meaning no variables can be changed without destroying the equilibrium. The rest of this piece will unpack how this elegant equation governs the physical world, why it makes the triple point an unyielding constant, and how scientists rely on this mathematical rigidity.[1][6]

To understand why water behaves this way, we must examine the variables in Josiah Willard Gibbs' 1870s equation, which remains a cornerstone of physical chemistry. The letter C represents the number of chemical components in the system. For pure water, C is exactly one, because there is only H2O present, with no impurities, dissolved salts, or atmospheric gases to complicate the chemistry. If the water were mixed with ethanol or salt, the component count would rise, fundamentally altering the math and the resulting physical behavior of the system.[1][3]

The letter P stands for the number of phases coexisting in equilibrium. A phase is a distinct, physically separable state of matter with uniform chemical composition and physical properties. In the case of the triple point, we are looking for the exact moment where ice, liquid water, and water vapor all exist together in a stable balance. Therefore, P equals three. As defined in classical thermodynamics, the triple point is "the temperature and pressure at which the three phases (gas, liquid, and solid) of that substance coexist in thermodynamic equilibrium."[6][7]

The "+ 2" at the end of the formula represents the two intensive variables that can typically be manipulated in a standard thermodynamic system: temperature and pressure. These are the external levers a scientist or an environment can theoretically pull to change the state of the substance. Intensive variables are properties that do not depend on the amount of matter present; the temperature of a single drop of boiling water is the same as the temperature of a boiling pot.[2][4]

When we plug the values for pure water at its triple point into the equation, the mathematical resolution is starkly simple. We take one component, subtract three phases, and add two for the variables (1 - 3 + 2). The result is F = 0. That zero represents F, the degrees of freedom. In thermodynamics, degrees of freedom are the number of independent intensive variables you can change without altering the number of phases in the system.[1][8]

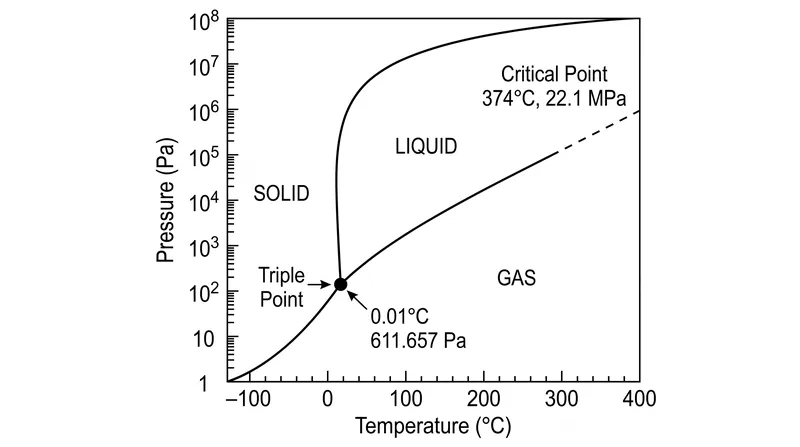

A result of zero degrees of freedom means the system is completely invariant. You cannot nudge the temperature up by a thousandth of a degree, nor can you drop the pressure by a single pascal. If you do, the delicate balance shatters, and at least one of the three phases will immediately vanish. The math proves that the triple point cannot be a range, a curve, or an approximation; it is a single, locked coordinate on the phase diagram of water.[4][5]

Compare this invariant state to a glass of liquid water sitting on a table. In that everyday scenario, C is still one, but P is only one, because only the liquid phase is present. The formula becomes 1 - 1 + 2, leaving two degrees of freedom. You can heat the water, or you can change the pressure in the room, and it will still remain a liquid. It has thermodynamic flexibility. The triple point, by contrast, has absolutely none.[2][3]

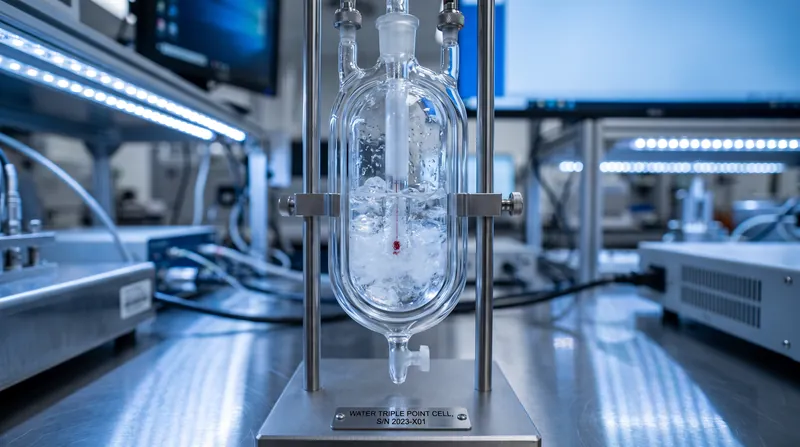

This mathematical rigidity is not just a theoretical curiosity; it is a foundational tool for modern metrology and global standardization. Because the triple point of water is dictated by a mathematical absolute rather than a manufacturing tolerance, it serves as a perfect, universally reproducible anchor for temperature scales. Prior to the 2019 redefinition of the International System of Units, the Kelvin was explicitly defined as exactly 1/273.16 of the thermodynamic temperature of the triple point of water. Even today, high-precision laboratories rely on this exact physical constant to calibrate their most sensitive instruments.[6][7]

The strongest counter-argument to the absolute nature of this formula is that it relies entirely on the assumption of a perfectly pure substance in a closed system. If a single microscopic impurity, such as a dissolved gas from the atmosphere or a stray mineral from a glass container, enters the water, C is no longer exactly one. The system becomes a multi-component mixture, the degrees of freedom increase, and the triple point blurs from a single coordinate into a flexible range.[3][8]

Furthermore, Gibbs' phase rule assumes that only temperature and pressure are acting on the system. If the water is subjected to extreme gravitational fields, intense magnetic forces, or is confined to nanoscale pores where surface tension dominates the physical interactions, the "+ 2" in the formula must be modified to account for these additional variables. In those extreme environments, the standard phase rule requires expansion to accurately predict the behavior of the substance, proving that the formula is a model of standard conditions rather than a universal law of all possible environments.[1][4]

Yet, under standard laboratory conditions, the equation holds with absolute fidelity. The F = C - P + 2 formula proves that nature has strict mathematical boundaries that govern how matter transitions between states. It demonstrates that the simultaneous coexistence of ice, water, and steam is not a flexible phenomenon that can be coaxed into occurring across a variety of conditions, but a precise coordinate locked in place by the fundamental laws of thermodynamics. This elegant relationship between components, phases, and variables remains one of the most powerful predictive tools in physical chemistry.[2][5]

By reducing the complex physical behavior of matter to a simple arithmetic equation, Gibbs provided scientists with a map of the possible. The phase rule ensures that researchers do not waste time searching for a quadruple point of pure water, because the math proves it cannot exist without negative degrees of freedom. The formula stands as a testament to the idea that the physical universe, at its core, operates on a foundation of rigorous, unbreakable mathematical logic.[1][3][6]
