How the Kernel Trick Implicitly Maps Data to a Higher-Dimensional Feature Space to Achieve Linear Separability

Machine learning models routinely separate hopelessly tangled datasets by drawing complex, non-linear boundaries, yet they achieve this without ever calculating the actual geometry of those curves. By employing a mathematical shortcut known as the kernel trick, algorithms like Support Vector Machines (SVMs) operate as if they have projected data into a vastly more complex, higher-dimensional space where a simple straight line can separate the classes. This implicit mapping allows standard desktop computers to perform classifications that would otherwise require infinite memory to compute explicitly, a breakthrough that fundamentally shifted classification capabilities when introduced to SVMs in 1992. Instead of crashing under the weight of infinite variables, the system elegantly sidesteps the geometry altogether.[1][2][5]

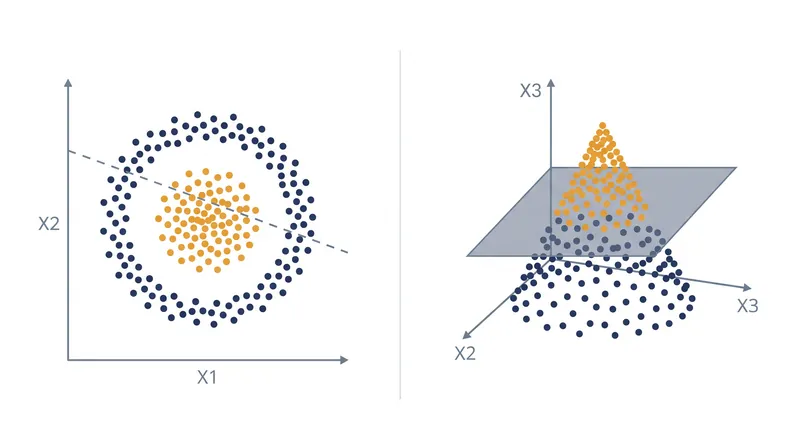

The foundational challenge in classification is linear separability. A standard linear model attempts to draw a straight line—or a flat hyperplane in multiple dimensions—between different categories of data. When data points are arranged in concentric circles or overlapping clusters, no straight line can separate them without massive error rates. To solve this, researchers traditionally had to manually engineer new features, physically transforming the 2-dimensional data coordinates into a 3-dimensional or higher space where a flat plane could slide between the classes. This manual feature engineering was not only time-consuming but also required deep domain expertise to guess which mathematical transformations would successfully untangle the specific dataset.[3][6]

Explicitly transforming data creates an immediate and severe computational bottleneck. Mapping a simple 2-dimensional dataset into a 3-dimensional space requires calculating new coordinates for every single observation in the training set. If the data requires a transformation into a 10,000-dimensional space to become linearly separable, the processing power required scales exponentially, quickly overwhelming even the most advanced modern hardware. For infinite-dimensional transformations, explicit calculation is mathematically impossible, forcing algorithms to halt entirely. This phenomenon, often referred to as the curse of dimensionality, historically placed a hard ceiling on the complexity of patterns that machine learning models could reliably detect.[4][5]

The kernel trick bypasses this dimensional explosion entirely. Instead of physically moving the data points into a new space, the algorithm relies exclusively on the pairwise relationships—specifically, the dot products—between the points. As the data science platform DataCamp explains, 'The kernel trick is a method for computing inner products in a higher-dimensional feature space without explicitly mapping the data there.' A kernel function mathematically substitutes the dot product in the higher-dimensional space using only the original, low-dimensional coordinates. The model learns the exact same decision boundary it would have found in the complex space, but it never actually computes the high-dimensional coordinates, reducing the transformation time to a fraction of a millisecond.[2][5][6]

Different kernel functions impose different geometric assumptions on the data, allowing practitioners to tailor the implicit space to their specific problem. The Polynomial kernel calculates similarities based on combinations of the original features up to a specified degree, effectively folding the space into a finite number of dimensions. The Radial Basis Function (RBF), or Gaussian kernel, measures the straight-line distance between points and maps them into an infinite-dimensional space. Because the RBF kernel relies solely on the distance between original coordinates, it can draw highly localized, circular decision boundaries around specific data clusters without explicitly calculating infinite variables. This makes the RBF kernel the default choice for datasets with unknown, highly non-linear structures.[2][5][6]

The validity of this shortcut rests on Mercer's Theorem, a mathematical proof published in 1909, which guarantees that any valid kernel function corresponds to a dot product in some feature space, even if that space is never explicitly defined. As long as the algorithm only requires the dot product between two vectors to optimize its weights—which is the defining characteristic of the SVM dual formulation—the kernel function can seamlessly replace the standard dot product. This mathematical equivalence ensures 0% accuracy is lost in the shortcut compared to explicit mapping. The algorithm optimizes its parameters with absolute mathematical certainty, guaranteeing a globally optimal decision boundary free from the local minima that plague other architectures.[1][3][6]

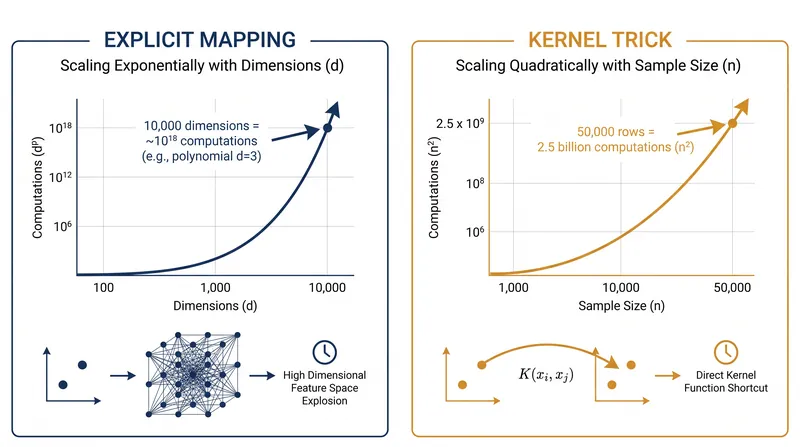

While the kernel trick eliminates the curse of dimensionality, it introduces a different constraint: sample size dependency. Because the algorithm must compute the similarity between every possible pair of training points, the computational cost scales quadratically (O(N²)) with the number of observations. A dataset with 50,000 rows requires a similarity matrix of 2.5 billion computations. Consequently, while kernel methods excel at finding complex patterns in small-to-medium datasets, they struggle to scale to the massive datasets of 1 million or more rows typically reserved for deep neural networks. This quadratic scaling remains the primary reason why exact kernel methods are rarely used for modern, internet-scale training corpuses.[4][5]

Despite the dominance of deep learning for massive datasets, the kernel trick remains a foundational mechanism for rigorous, interpretable classification. By decoupling the complexity of the model from the dimensionality of the data, it provides a mathematically guaranteed optimal margin for non-linear problems. In 2024, modern implementations in systems programming languages like Rust continue to optimize these matrix operations, proving that in high-dimensional geometry, measuring the relationship between two points is often far more efficient than calculating exactly where those points reside. As researchers continue to explore hybrid architectures, the principles underlying the kernel trick continue to influence how we design efficient, high-dimensional data representations.[1][4]
