The Continuous 24-Volt Supply: Why Wi-Fi Smart Thermostats Require a C-Wire for Constant Power

Millions of homeowners who purchased a smart thermostat this year discovered that their heating system lacks the wiring required to turn it on. The upgrade from a basic beige dial to a Wi-Fi-enabled touchscreen often halts at the wall plate when a specific blue or black wire—the common wire, or C-wire—is missing from the bundle. Without it, a modern thermostat cannot draw the continuous 24-volt power it needs to maintain a wireless connection and illuminate its display.[2][4]

The absence of this wire in older homes stems from how traditional heating and cooling systems were designed to operate. A standard 20th-century thermostat functioned as a simple mechanical switch. When the room temperature dropped, a bi-metal coil inside the unit contracted, closing a low-voltage circuit that signaled the furnace to ignite. Because the thermostat itself performed no computational work, it did not require a dedicated power supply. It simply borrowed a microscopic amount of electricity from the heating circuit during an active call for heat, a process known as power stealing.[1][2]

That parasitic relationship fails when applied to modern smart home technology. A Wi-Fi radio, a high-resolution touchscreen, and an array of occupancy sensors demand a constant flow of electricity, regardless of whether the furnace or air conditioner is actively running. Relying on power stealing to feed these components often results in erratic behavior. As the engineering team at ENA Solution notes, 'Without the presence of a common wire, a thermostat may "pulse" the heat wire to get power when the HVAC system is not running, prompting your furnace to kick on.' This forces the HVAC system to short-cycle as the thermostat attempts to pull more voltage than the circuit can safely provide.[1][3][4]

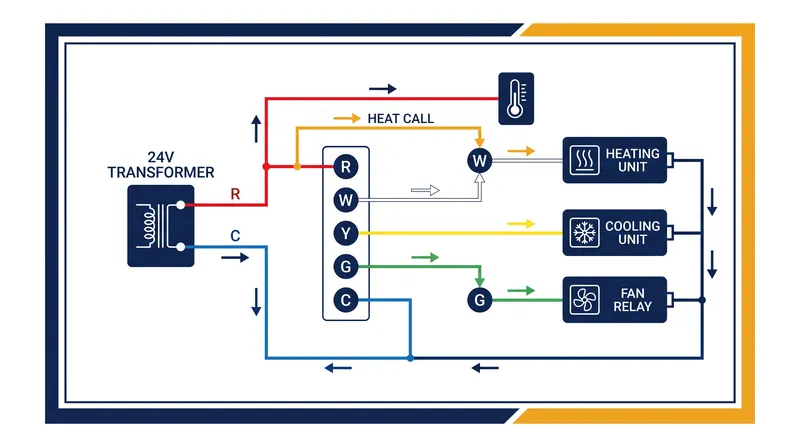

To resolve this, the HVAC industry standardized the use of the C-wire to complete a dedicated 24-volt alternating current (AC) loop. In a typical five-wire setup, the red wire (R) delivers the 24-volt hot side from a 120-volt step-down transformer located inside the furnace or air handler. The C-wire acts as the return path, allowing electricity to flow continuously to the thermostat without inadvertently activating the heating or cooling relays. This continuous loop ensures the device remains powered and connected to the home's network 24 hours a day.[2][3][4]

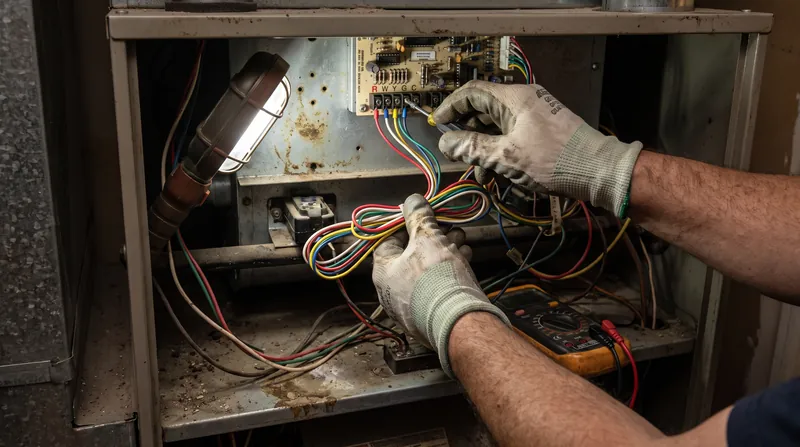

For renters and owners living in properties built before 2010, the C-wire is frequently absent from the wall bundle. While the control board on the furnace likely has a C terminal, the original installers had no reason to run a five-conductor cable through the walls for a thermostat that only required two or four wires. Upgrading to a smart model in these homes requires either pulling a new thermostat cable from the basement to the living room or installing a specialized power adapter at the furnace control board to multiplex the 24-volt signal over the existing wires.[1][5]

Some manufacturers market smart thermostats that claim to operate without a C-wire by relying on internal lithium-ion batteries. However, these models must aggressively manage their power consumption to prevent the batteries from draining within weeks. They typically disable continuous Wi-Fi polling, meaning the device only connects to the network at set intervals or when manually awakened. For homeowners who want to adjust the temperature remotely while commuting home, this delayed response time defeats the primary purpose of the upgrade.[4]

The push toward home electrification and energy efficiency relies heavily on the data gathered by these connected devices. Utility companies increasingly offer rebates for smart thermostats because their ability to learn occupancy patterns and shift heating loads away from peak demand hours reduces strain on the electrical grid. But those grid-level benefits depend entirely on the thermostat maintaining a stable, uninterrupted connection to the internet—a function that remains physically tethered to the presence of a continuous 24-volt return path.[1]

Before purchasing a smart thermostat, buyers must remove their current unit's faceplate and inspect the terminal block. If the terminal labeled 'C' is empty, the installation will require additional electrical work. While a C-wire adapter can bridge the gap in many systems, homes with older two-wire millivolt heating systems—such as vintage floor furnaces or gas fireplaces—cannot support these adapters and require a complete rewiring to accommodate modern controls.[2][5]

The financial implications of this wiring gap often catch buyers off guard. While a smart thermostat might retail for $130, hiring a licensed HVAC technician to pull a new 50-foot multi-conductor cable through finished drywall can easily add $150 to $250 to the project cost. In multi-story homes where the furnace is located in a basement and the thermostat sits on a second-floor hallway, running a new physical wire may require cutting and patching the ceiling, pushing the total installation cost well beyond the price of the device itself.

The transition to smart climate control is less about the software inside the thermostat and more about the electrical infrastructure behind the wall. The C-wire represents the dividing line between a home that can seamlessly integrate into a modern, automated energy grid and one that requires a physical retrofit to participate. For homeowners planning an upgrade, the first step is not selecting a device, but unscrewing the current faceplate to see if the necessary 24-volt return path is already waiting in the wall.
