Why Smart Switches Permanently Stick On: The Physics of LED Inrush Current and Relay Welding

A homeowner installs a new smart switch, pairs it to their network, and taps the button to turn on their new LED kitchen lights. The fixtures illuminate perfectly. But when they try to turn them off, the app registers "off," the switch clicks, yet the lights stay blazing.

The switch is not experiencing a software glitch, a routing error, or a network dropout. It is physically destroyed. This permanent failure is one of the most common hardware casualties in smart home retrofits, catching buyers and electricians completely off guard.

The confusion stems from a fundamental misunderstanding of electrical wattage. People assume that because LEDs are highly efficient, any switch can handle them. A smart relay rated for 400 watts of traditional lighting seems vastly over-specced for a room containing just 40 watts of LED bulbs.

However, that assumption relies entirely on steady-state operating current. It ignores the violent electrical physics that govern the first millisecond of operation, where the actual damage occurs.

The Capacitive Short Circuit

To understand the failure, one must look inside the LED bulb. Unlike a traditional incandescent filament, an LED cannot run directly on alternating current. It requires an electronic driver to convert the high-voltage AC line power into smooth, low-voltage direct current.

These drivers rely on internal rectifiers and large smoothing capacitors to filter the power. When a capacitor is completely uncharged, it presents near-zero electrical impedance to the incoming voltage.

At the exact instant the smart switch closes the circuit, the empty capacitor acts effectively as a short circuit. It gulps massive amounts of power to charge itself, creating a phenomenon known as capacitive inrush current.

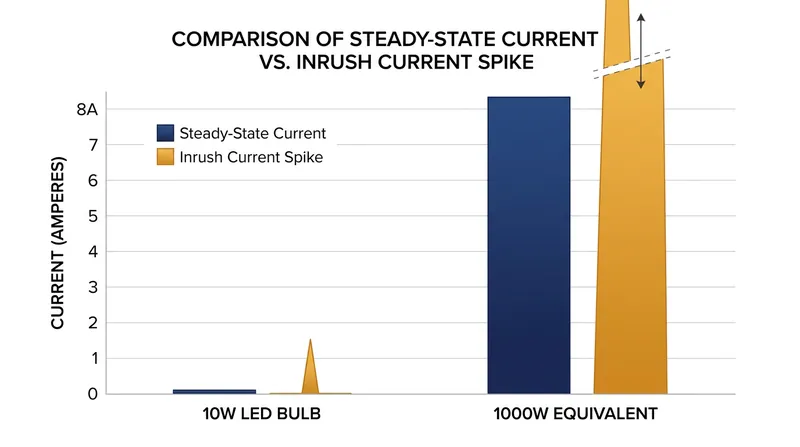

"This rapid charging creates inrush current which can be 100 times the LED driver's continuous current rating," notes engineering documentation on capacitive loads. A modest 10-watt LED fixture might briefly pull the equivalent of 1,000 watts.

The Physics of Contact Bounce

That massive current spike must pass through the smart switch. Inside the wall box, the switch relies on a mechanical relay—a tiny electromagnet that pulls a metal armature to close the circuit.

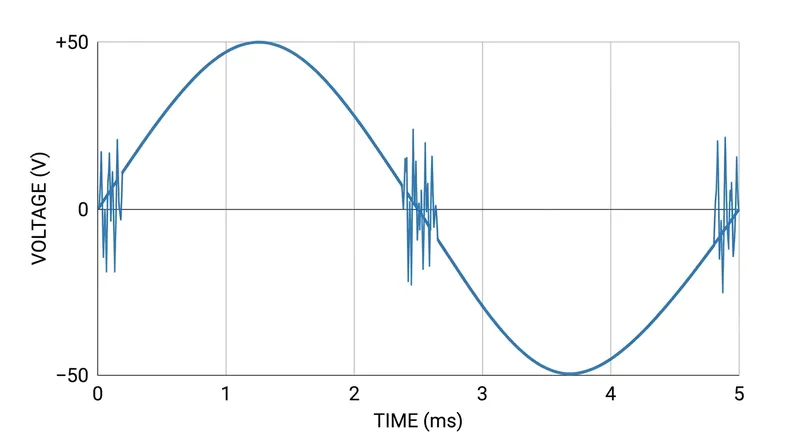

When the switch receives an "on" command, the electromagnet snaps the metal contacts together. But metal is elastic, and the kinetic energy of the impact causes the contacts to bounce apart microscopically.

For a few milliseconds, the surfaces rapidly open and close. This creates a rapidly oscillating microscopic gap between the two conductive plates, right at the moment the LED driver is demanding its maximum power.

Arcing and Liquefaction

Because the inrush current is so high, the electricity refuses to be interrupted by the microscopic gap. The voltage jumps across the empty space, striking a concentrated electrical arc.

The intense heat of the arc—reaching thousands of degrees Celsius—melts a microscopic amount of the surface of both contacts. The intense heat instantly liquefies the silver-alloy plating at the microscopic points of connection.

When the bouncing finally stops and the contacts settle firmly against each other, they are coated in a layer of molten metal. The metal rapidly cools and solidifies, fusing the two contacts into a single continuous piece.

The relay is now permanently welded shut. When the smart home hub later sends an "off" command, the electromagnet releases, but the tiny return spring lacks the physical force to break the weld.

Why Miniature Relays Fail

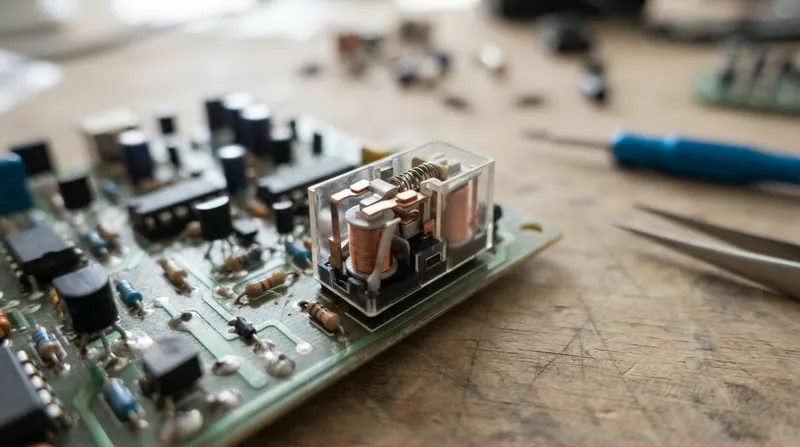

Traditional "dumb" light switches rarely suffer this fate. They utilize large, heavy copper contacts and stiff mechanical springs that can easily snap apart minor micro-welds before they become permanent.

Smart switches, however, must pack radio antennas, microprocessors, and power supplies into the same standard wall box. To save space, manufacturers utilize miniature impulse relays.

These miniaturized components have very small contact surface areas and weak return springs. This physical constraint makes them highly vulnerable to capacitive welding when paired with modern lighting.

Engineering the Solution

The simplest defense against contact welding is severe load derating. Industry guidelines dictate that a relay's capacity should be derated by 75 to 90 percent when switching capacitive LED loads.

Relay manufacturers advise strict derating. For LED or capacitive loads, a common rule of thumb is to choose a relay with a continuous current rating of at least 5 times the steady-state current.

A smart switch rated for 10 amps of resistive incandescent lighting might only be rated to safely switch 1 to 2 amps of LED fixtures. Exceeding this hidden limit guarantees eventual failure.

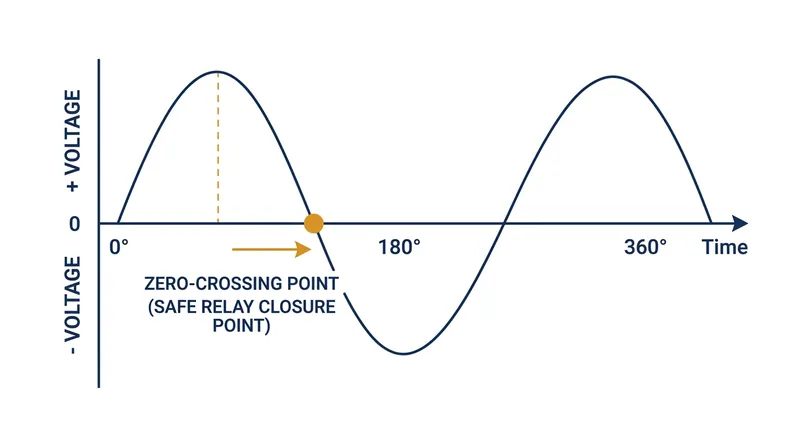

More advanced smart switches solve the problem through timing. Using "zero-crossing" logic, the microprocessor monitors the alternating current sine wave, which crosses zero volts 120 times a second.

The switch waits for the exact millisecond the AC voltage hits zero to close the relay. This eliminates the electrical pressure that drives the destructive arc, allowing the contacts to settle safely.

Premium relays also upgrade their metallurgy. By swapping standard alloys for Silver Tin Oxide (AgSnO2), the contacts become highly resistant to high-temperature arcing and molten material transfer, ensuring the smart switch outlasts the bulbs it controls.
