Continuous Radio Listening Depletes Coin Cells Within a Day: Why Battery-Powered Zigbee and Thread Sensors Cannot Route Mesh Traffic

Homeowners often assume that scattering dozens of battery-powered Zigbee or Thread sensors across a house will automatically blanket the property in an unbreakable wireless mesh. The prevailing belief is that every new smart device acts as a repeater, extending the network's range and reliability into every corner of the building.

The engineering reality contradicts this completely. Under the official specifications published by the Connectivity Standards Alliance, a house filled exclusively with battery-powered sensors has zero mesh routing resilience. Because they rely on tiny power reserves, these sensors are physically incapable of forwarding traffic for their neighbors.[1][7]

The limitation comes down to the fundamental physics of radio communication. To act as a mesh router under the IEEE 802.15.4 standard, a device must keep its 2.4 GHz radio receiver powered on continuously to listen for incoming packets. This continuous listening state requires a steady, uninterrupted draw of electrical current.[3]

The Mathematics of Continuous Listening

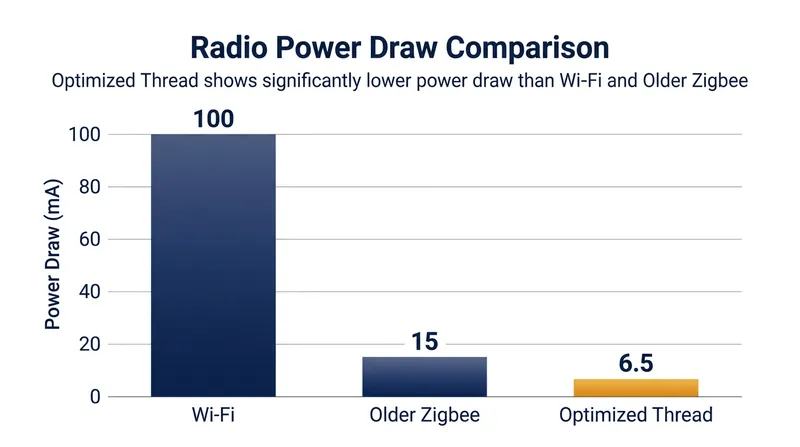

Modern smart home silicon is highly optimized, but it cannot cheat thermodynamics. "With a receive consumption of only 6.5 mA and 6.3 mA of 0-dBm transmission current draw, the CC2652 device sends and receives data with peaks of current within the single digit milliampere consumption figure," writes Texas Instruments in their official technical whitepaper. Other industry-standard chips routinely draw between 9 mA and 15 mA during continuous reception.[4][5]

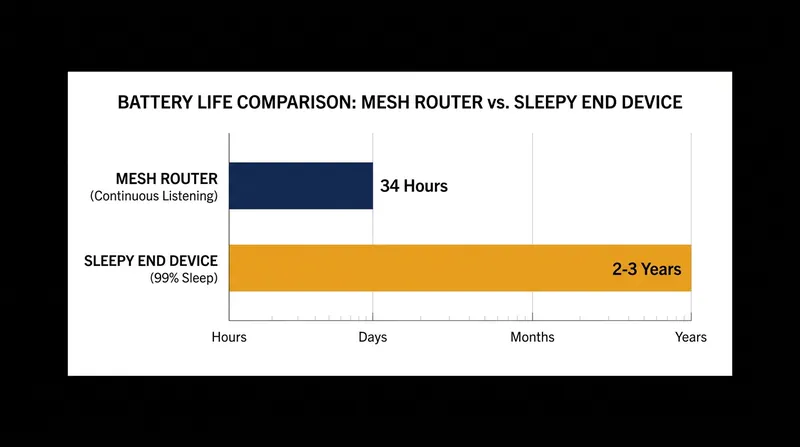

A standard CR2032 coin cell battery, the silver disc found in most door and temperature sensors, holds roughly 220 milliamp-hours (mAh) of energy. If a sensor were forced to keep its radio on continuously to route mesh traffic at 6.5 mA, it would completely exhaust a fresh battery in just under 34 hours.[4][8]

At a 15 mA draw, that same coin cell would be dead in under 15 hours. This mathematical absolute forces a strict architectural divide in both Zigbee and Thread networks: devices must either be permanently wired to mains power, or they must abandon the responsibility of routing traffic entirely.[5][8]

To achieve the multi-year battery life consumers expect, battery-powered sensors operate as "Sleepy End Devices" (SEDs). Under the IEEE 802.15.4 standard that underpins both Zigbee and Thread, an SED powers down its radio receiver for more than 99 percent of its operational life.[1][3]

The Sleepy End Device Architecture

While sleeping, the microcontroller draws less than one microampere (µA) of current. The device only wakes up when a physical event occurs—like a door opening—or when a scheduled timer prompts it to check in. This brief active window lasts just a few milliseconds before the radio shuts down again.[4][6]

They wake up, transmit a signal payload to their assigned parent node, and then immediately go back to sleep. By refusing to listen to the network at large, a sleepy end device stretches a single CR2032 battery across two to three years of real-world use.[7][8]

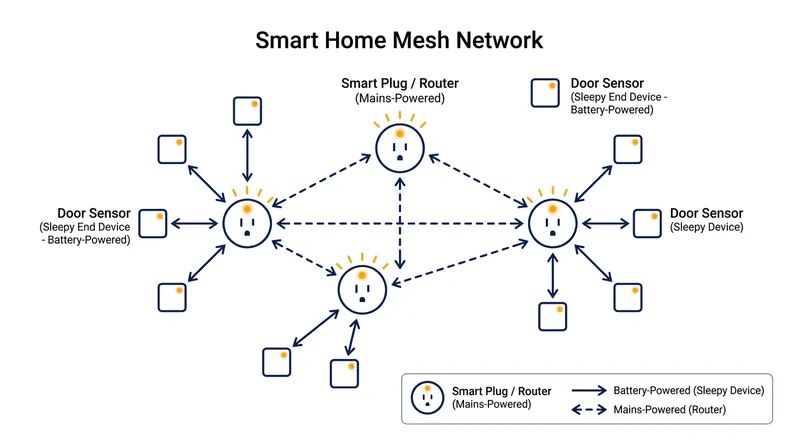

Because sleepy devices are deaf almost all the time, they cannot receive commands directly from the network hub at any arbitrary moment. Instead, the protocol requires them to pair with a mains-powered "parent" router, such as a smart plug, a hardwired light switch, or a dedicated repeater plugged into a wall outlet.[1][2]

These mains-powered routers maintain the continuous listening state required to form the mesh backbone. When the central hub sends a command to a sleeping sensor, the parent router intercepts the message and holds it in a local memory buffer.[3][8]

When the sleepy end device eventually wakes up, it transmits a tiny data packet asking its parent if any messages are waiting. The parent delivers the buffered command, the sensor executes it, and the sensor immediately returns to its microampere sleep state.[3][7]

The Role of the Parent Node

Understanding this strict boundary between routers and end devices is the difference between a flaky smart home and a bulletproof automation network. A network consisting only of a central hub and thirty battery-powered sensors is actually a fragile star topology, not a mesh.[1][8]

If the central hub is located in the living room, a battery-powered contact sensor on a distant garage door has no way to reach it. The sensor cannot bounce its signal off the battery-powered motion detector in the hallway, because the motion detector's radio is asleep.

To bridge that gap, the homeowner must install mains-powered routing hardware between the hub and the distant sensor. Adding a single Zigbee or Thread smart plug in the hallway provides the always-on radio receiver needed to catch the garage sensor's signal and pass it along.[7][8]

This is why professional installers strategically distribute hardwired relays and smart outlets throughout a property before adding any battery-powered endpoints. The mains-powered devices build the invisible infrastructure, ensuring that every sleepy sensor has a parent router within reliable radio range.

Thread and Dynamic Role Switching

While Zigbee has utilized this parent-child architecture for two decades, the newer Thread protocol refines it for modern IP-based networks. Thread operates on the exact same IEEE 802.15.4 radio standard, meaning it faces the same physical battery constraints and utilizes the same sleepy end device logic.[2]

However, Thread introduces dynamic role switching for devices that do have access to mains power. A Thread device plugged into a wall can operate as a "Router-Eligible End Device" (REED). If the network determines that the mesh is already strong enough, the REED acts as an end device to reduce overall network congestion.[2]

If a nearby router goes offline, the Thread network automatically promotes the REED to a full router role. This self-healing capability ensures the mesh remains stable without requiring the user to manually reconfigure the network, provided there are enough mains-powered devices available to take over.[2]

The strict power management of Zigbee and Thread becomes even more apparent when compared to Wi-Fi. Wi-Fi was designed for high-bandwidth data transfer, not low-power sensor networks. Maintaining a Wi-Fi connection requires constant beacon listening and frequent wake-up cycles.[8]

The Wi-Fi Power Penalty

A typical Wi-Fi radio draws over 100 milliamperes during active transmission and reception. Because coin cells have high internal resistance, pulling 100 mA causes a severe voltage drop that crashes the microcontroller, making Wi-Fi impossible to run reliably on a CR2032.[8]

Because of this massive power penalty, Wi-Fi is fundamentally unsuited for coin-cell operation. A Wi-Fi temperature sensor must rely on much larger AA or lithium-ion batteries, and even then, it typically exhausts its power supply in three to six months rather than three years.[8]

Even for mains-powered devices, continuous listening carries a measurable energy cost. A typical Zigbee routing integrated circuit consumes about 25 milliwatts (mW) just to keep its radio receiver active. When combined with the power supply inefficiencies of converting 120V or 240V AC down to 3V DC, the actual wall draw is higher.[8]

The Baseline Cost of the Mesh

Independent power analyses show that highly efficient Zigbee smart switches draw about 130 mW in standby mode. While this represents a tiny fraction of a household's energy bill, it illustrates the baseline electrical cost of maintaining a responsive wireless mesh.[8]

Ultimately, the dream of a completely wire-free, battery-powered mesh network remains blocked by the limits of battery chemistry. Until energy storage technology undergoes a radical transformation, the smart home will continue to rely on the quiet, continuous labor of devices plugged directly into the wall.[8]

For homeowners, the takeaway is entirely practical. When planning a smart home expansion, the budget must include mains-powered smart plugs or relays, even if those specific outlets do not need to be "smart" for any other reason. They are the essential utility poles of the wireless mesh.
