Routers Discard Link-Local Multicast at Subnet Boundaries: Why Smart Home Discovery Breaks Across VLANs

The moment a homeowner decides to secure their network by moving smart plugs, speakers, and televisions onto an isolated IoT VLAN, the devices vanish. The control apps spin endlessly, unable to find hardware that is powered on, connected to Wi-Fi, and fully functional.[6]

This disappearance is rarely a firewall mistake. Even if the router is configured to allow all traffic to pass freely between the main network and the IoT subnet, the devices remain invisible to smartphones and laptops.[6]

The failure stems from the fundamental architecture of zero-configuration networking. Smart home ecosystems rely on discovery protocols that are explicitly designed to break at subnet boundaries, preventing them from crossing the exact network divisions that security-conscious users create.[6]

The Mechanics of Multicast Discovery

When a device like an Apple TV or a smart speaker joins a standard, flat home network, it does not register with a central server. Instead, it announces its presence to the entire local network simultaneously.[3]

This is achieved using Multicast DNS (mDNS), a protocol standardized by the Internet Engineering Task Force in February 2013 as RFC 6762. Apple commercialized this technology as Bonjour, while other vendors use similar implementations to enable seamless device discovery.[1][3]

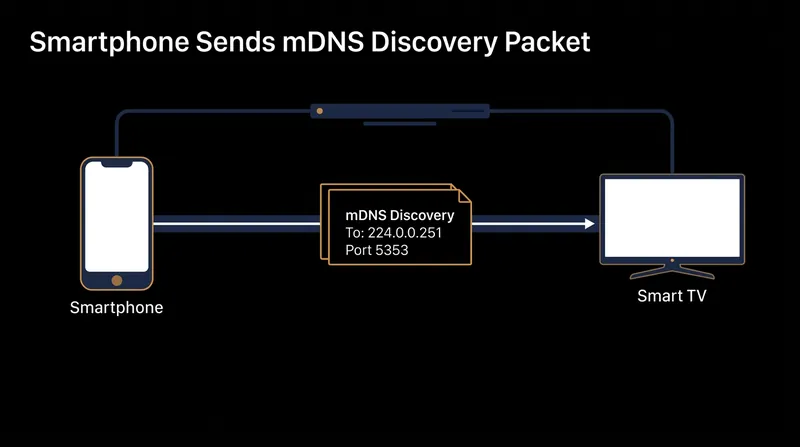

Under mDNS, a device sends a User Datagram Protocol (UDP) packet to a specific, reserved multicast address: 224.0.0.251. Every other device on that local network segment listens to this address on port 5353, instantly learning the new device's name and capabilities.[1][5]

A parallel protocol, the Simple Service Discovery Protocol (SSDP), operates on similar principles for Universal Plug and Play (UPnP) devices. SSDP uses the multicast address 239.255.255.250 on port 1900 to announce media servers, smart displays, and network-attached storage.[5]

This broadcast approach works flawlessly when all devices share a single subnet. A smartphone looking for a television simply shouts a query to the multicast address, and the television replies directly, requiring zero manual IP configuration by the user.[3]

The Layer 3 Boundary

Creating a Virtual Local Area Network (VLAN) fundamentally changes this topology. A VLAN segments a single physical network into multiple logical networks, separated by a strict Layer 3 routing boundary that governs how traffic flows between them.[4]

To pass traffic between the main VLAN and the IoT VLAN, packets must be processed and forwarded by the router. This is where the zero-configuration magic abruptly stops, killed by the strict rules governing network traffic.[4]

The 224.0.0.0/24 address block, which includes the mDNS address, is designated as the Local Network Control Block. According to core routing standards, a router must never forward packets destined for these addresses to another subnet.[1]

Furthermore, IPv4 link-local protocols are strictly confined to their origin segment. Published in May 2005, RFC 3927 dictates that a router must not forward any packet with a link-local source or destination, regardless of the routing tables or firewall rules the user has configured.[2]

The Internet Engineering Task Force is unequivocal on this restriction. "A router MUST NOT forward a packet with an IPv4 Link-Local source or destination address, irrespective of the router's default route configuration," the RFC 3927 specification states.[2]

The Time-to-Live Execution

This means that even if a homeowner meticulously configures their firewall to allow all traffic from the main network to reach the IoT subnet, the discovery packets will never traverse the link. The router drops them before the firewall ever evaluates them.[4][6]

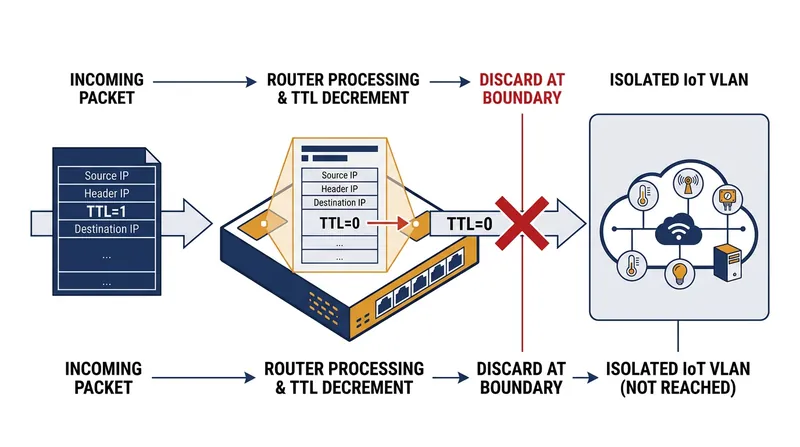

Even if a router were somehow instructed to ignore the multicast address restrictions, the mDNS protocol includes a self-destruct mechanism. Every mDNS packet is transmitted with a Time to Live (TTL) value hardcoded to exactly 1.[1]

In IP networking, the TTL value prevents packets from looping endlessly across the internet. Every time a router processes a packet to move it across a boundary—such as from a main VLAN to an IoT VLAN—it decrements the TTL by one.[4]

Because an mDNS packet starts with a TTL of 1, the router's decrement operation immediately reduces the value to zero. The router is then required by protocol to discard the packet entirely, ensuring it never reaches the neighboring subnet.[1][4]

This intentional discard mechanism protects large enterprise networks from being overwhelmed by thousands of devices constantly shouting their availability. However, it completely breaks the smart home experience for users attempting to segment their residential networks.[6]

Bridging the Divide

The isolation is absolute and by design. The protocols were authored specifically to prevent local discovery traffic from leaking across boundaries, ensuring that a printer on one corporate floor does not appear on the computers three floors away.[1][3]

Because the router drops the discovery packets at the boundary, the smartphone on the main VLAN never sees the television on the IoT VLAN. The devices can technically route data to each other, but they do not know the other exists.[6]

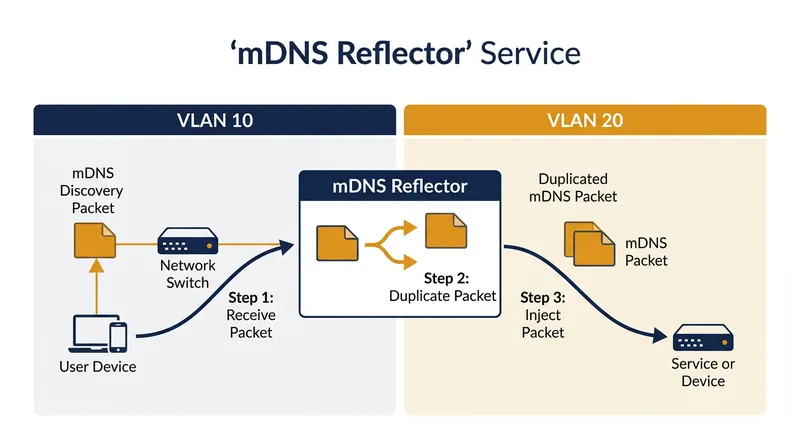

Restoring functionality requires a workaround that operates above the standard routing layer. Network administrators must deploy an mDNS reflector or repeater, a dedicated software service that actively listens to the multicast traffic on one VLAN and bridges it to another.[5][6]

When the reflector hears a discovery packet on the main network, it duplicates the packet, rewrites the headers, and injects a fresh copy into the IoT VLAN. This tricks the devices into believing they share a single, flat network segment.[5]

Open-source tools like Avahi commonly perform this reflection, and many advanced prosumer routers now include an mDNS repeater toggle in their settings. Enabling this feature bridges the discovery gap while maintaining the security benefits of isolated subnets.[5][6]

For SSDP and UPnP traffic, an IGMP proxy performs a similar function, forwarding the multicast group memberships across the routing boundary. Without these active repeater services running on the router, the segmented smart home remains permanently fractured and unusable.[4][6]

Ultimately, the conflict between network segmentation and smart home discovery is a clash of design philosophies. Consumer IoT devices expect a simple, open environment, while VLANs enforce strict, segmented isolation that prioritizes security over convenience.[6]
