Mismatched Active Operational Datasets Splinter Smart Home Thread Networks into Isolated Radio Meshes

A battery-powered temperature sensor struggles to reach a smart speaker across the house, rapidly draining its coin cell. It ignores a perfectly good smart plug located just inches away. This routing failure happens because the two devices belong to different Thread Active Operational Datasets.

Rather than forming a single, self-healing mesh, the devices are locked into parallel, isolated radio networks. This fragmentation has plagued mixed-ecosystem smart homes since the Matter standard launched in November 2022. It defeats the primary architectural advantage of the Thread protocol.

The Anatomy of an Active Dataset

Thread operates as a low-power IPv6 mesh networking protocol based on the IEEE 802.15.4 standard. Unlike Wi-Fi, where devices connect to a central router, Thread devices route traffic for one another. This requires a shared cryptographic and configuration baseline.[2]

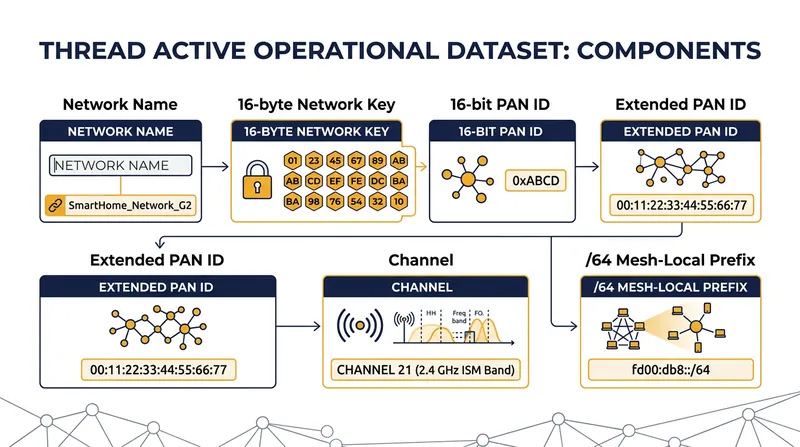

That baseline is the Active Operational Dataset. According to the OpenThread documentation, this dataset contains the exact parameters currently in use across an entire Thread network. If a device does not hold the matching dataset in its non-volatile memory, it cannot participate in the mesh.[1]

The dataset includes a 16-byte Network Key, a Network Name, and a specific radio channel. It also defines the Personal Area Network Identifier (PAN ID) and an Extended PAN ID. "All devices on the same Thread network must have the same Active Operational Dataset," notes the technical documentation from SmartBee.[1][2]

To maintain security, all mesh traffic is encrypted using AES-128-CCM. The Network Key inside the Active Dataset is the master cryptographic material that allows devices to decrypt these packets. Without it, a device simply sees unintelligible radio noise.[2]

When network parameters need to change, such as shifting to a clearer channel, the protocol uses a Pending Operational Dataset. This dataset includes a delay timer. Once the timer expires, the pending parameters automatically become the new Active Dataset across all devices simultaneously.[1][4]

The 802.15.4 Physical Layer

Thread radios transmit on the 2.4 GHz band, utilizing 16 specific channels numbered 11 through 26. Each channel features a 5 MHz spacing and a maximum data rate of 250 kbit/s. Because this spectrum overlaps with standard Wi-Fi, Thread networks must carefully select their operating frequency.[2]

When a border router forms a new network, it selects a channel and generates a random 16-bit PAN ID. This PAN ID acts as a hardware-level filter. The physical radio chip inspects the PAN ID of every incoming 802.15.4 frame before passing it up the software stack.[4]

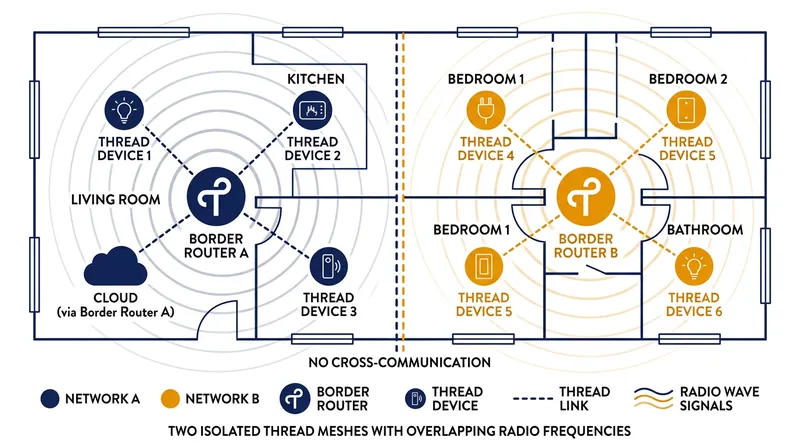

If a nearby device transmits a packet tagged with a different PAN ID, the receiving radio instantly discards it at the Medium Access Control (MAC) layer. The devices are physically deaf to one another, even if they are broadcasting on the exact same 2.4 GHz channel.

This MAC-layer filtering is highly efficient for battery life, as the radio does not wake the main processor to inspect irrelevant packets. However, it becomes a severe liability when a single home contains multiple valid Thread networks that refuse to acknowledge each other.

How Ecosystems Splinter the Mesh

The fragmentation problem stems from how different smart home platforms handle network creation. Apple HomePods, Google Nest Hubs, and Samsung SmartThings hubs all function as Thread border routers. They bridge the low-power 802.15.4 mesh to the home's primary IP network.

Historically, each ecosystem generated its own unique Active Operational Dataset during initial setup. An Apple HomePod would create one PAN ID and Network Key, while a Google Nest Hub would independently generate another. Neither platform shared these credentials by default.[3]

"Without shared Thread credentials, parallel mesh networks are created," explains the German smart home publication Matter-Smarthome. A Thread end device can only select one network to join at pairing time. It cannot belong to multiple Thread networks simultaneously.[3]

This forces the smart home into isolated silos. A smart bulb paired via Apple routes traffic only for other Apple-paired devices. A motion sensor paired via Google cannot use that bulb to relay its signal, forcing it to transmit at higher power to reach a distant Google hub.

The resulting mesh density loss directly impacts reliability. A dense Thread network routes around offline nodes seamlessly. A splintered network leaves devices stranded if their specific ecosystem's border router goes offline, even if a competitor's hub is fully operational nearby.

The Network Layer Divide

The isolation extends beyond the physical radio layer and into the IPv6 routing architecture. When a Thread network forms, the dataset generates a random Unique Local Address (ULA) block. This is known as the mesh-local prefix.[4]

This /64 IPv6 prefix is used exclusively for control traffic and routing within that specific mesh. Devices use it to assign themselves a 16-bit Routing Locator (RLOC16), which identifies their exact topological position in the network hierarchy.[4]

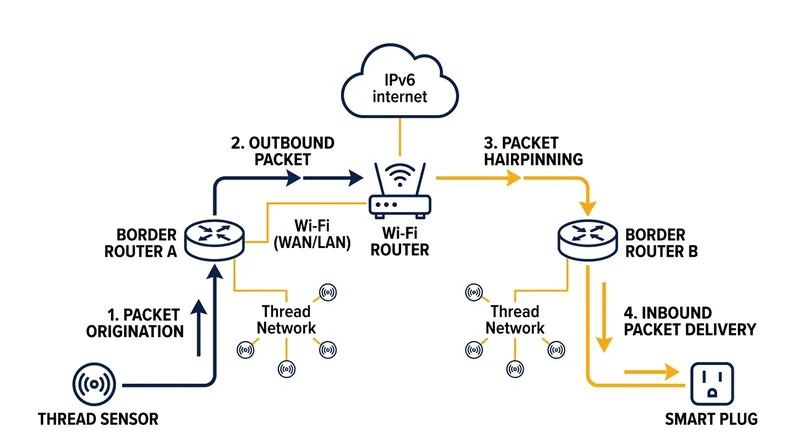

Because parallel border routers generate different mesh-local prefixes, devices on mismatched datasets cannot address each other directly. They exist on entirely different IPv6 subnets. To communicate, their traffic must leave the Thread radio entirely and route through the home's primary local area network.

A command from a Google-paired switch to an Apple-paired bulb must travel out through the Google border router, cross the home's Wi-Fi network, and re-enter the Thread mesh through the Apple border router. This hairpin routing introduces latency and relies on the Wi-Fi network remaining active.

If the home's Wi-Fi router reboots, this cross-ecosystem communication instantly fails. The devices are physically close enough to communicate over the 802.15.4 radio link, but their mismatched datasets prevent them from establishing a direct IPv6 connection, breaking local automations.

The Thread 1.4 Solution

The Thread Group recognized this architectural flaw and introduced standardized credential sharing in the Thread 1.4 specification, which began rolling out in 2025. This update allows border routers from competing manufacturers to synchronize their configurations.[5]

Under Thread 1.4, when a new border router is added to a home, it can securely request the existing Active Operational Dataset. Instead of generating a new PAN ID and Network Key, it adopts the established parameters. This merges the hardware into a single, unified mesh.[5]

With a unified dataset, the 802.15.4 radios stop filtering each other's packets. The mesh density doubles, routing distances shrink, and battery life improves. The network finally operates as the resilient, self-healing infrastructure it was originally designed to be.

Consumers can verify their network topology using diagnostic tools in platforms like Home Assistant. By inspecting the Active Operational Dataset parameters, users can confirm whether their border routers share a single PAN ID or if they are still broadcasting isolated meshes.[4]
