Why USB 3.0 Spread-Spectrum Signaling Swamps Zigbee and Thread Coordinators

For a low-power smart home mesh to function, the central coordinator must be able to hear faint radio signals just a few decibels above the ambient background noise. That binding constraint breaks the moment a fast, unshielded data connection begins shouting over the network. When a Zigbee or Thread hub is plugged directly into a modern server, the very ports meant to power it often blind it entirely.

The culprit is a physical phenomenon inherent to high-speed serial links. USB 3.0, also known as SuperSpeed USB, moves data at 5 gigabits per second. To pass electromagnetic emissions testing, the standard uses spread-spectrum clocking. This technique smears the signaling energy across a wide frequency band rather than letting it spike at a single point, keeping peak emissions below regulatory limits.[1]

That smeared energy happens to peak directly in the 2.4 GHz to 2.5 GHz industrial, scientific, and medical radio band. This is the exact spectrum shared by Wi-Fi, Bluetooth, Zigbee, and Thread. Because consumer USB cables and connectors are rarely perfectly shielded, they act as unintended antennas, radiating this broadband noise outward into the surrounding room.[1]

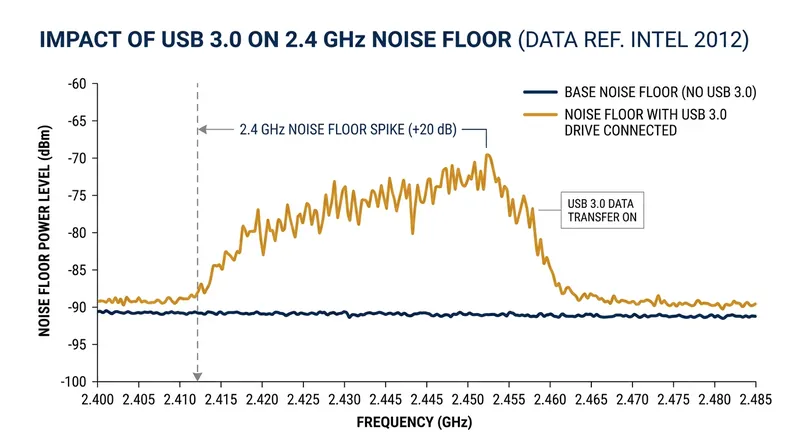

Intel documented this mechanism in a foundational April 2012 whitepaper. Engineers placed a near-field probe close to an external USB 3.0 hard drive in a radio-frequency isolation chamber. When the drive was connected and transferring data, the noise floor in the 2.4 GHz band spiked by nearly 20 decibels.[1]

"With the HDD connected, the noise floor in the 2.4 GHz band is raised by nearly 20 dB," the Intel researchers wrote. "This could impact wireless device sensitivity significantly." A 20-decibel penalty is catastrophic for low-power mesh protocols, which rely on tiny margins to maintain connections.[1]

Zigbee and Thread devices transmit at very low wattages—often under 10 milliwatts—to preserve coin-cell batteries for years. If the coordinator's local noise floor rises by 20 decibels, the hub effectively goes deaf to any sensor that is not in the immediate room. The signal from a distant door sensor simply vanishes into the static.[1][2]

The Smart Home Server Trap

This physical reality collides directly with how most enthusiasts build their smart homes in 2026. A standard setup involves running Home Assistant on a Raspberry Pi 4 or a compact mini-PC, with a USB Zigbee or Thread coordinator plugged into the back. To expand storage, users frequently connect an external solid-state drive via a USB 3.0 port.

The moment that drive begins writing data, the USB 3.0 controller, the port, and the cable begin radiating 2.4 GHz noise. Because the Zigbee coordinator is sitting millimeters away in an adjacent port, its antenna is bathed in interference. The hub can no longer distinguish the faint chirp of a distant temperature sensor from the roar of the hard drive.

The symptoms of this interference are notoriously difficult to diagnose because they mimic other network failures. The mesh network will appear to mostly work when the server is idle. However, during a system backup, a large file transfer, or a heavy database write, battery-powered sensors will suddenly drop offline or fail to report state changes.

"If your Zigbee mesh mostly works except when your PC is busy, or your cheap USB coordinator drops offline the moment you plug in a fast external SSD, you are not imagining a curse," notes smart home analyst Drew Morrison. "You are probably bumping into a boring, physical interaction."

Mains-powered Zigbee routers, such as smart plugs and in-wall switches, often survive these noise spikes because they transmit with stronger radios and have dedicated power supplies. The battery-powered end devices, which rely on the weakest signals, are the first to be swallowed by the elevated noise floor.

Shielding and Separation

Fixing the interference requires addressing the physical environment rather than tweaking software settings. The most effective mitigation is distance. Radio frequency energy dissipates according to the inverse-square law, meaning that moving the coordinator just a short distance from the noise source dramatically reduces the interference.

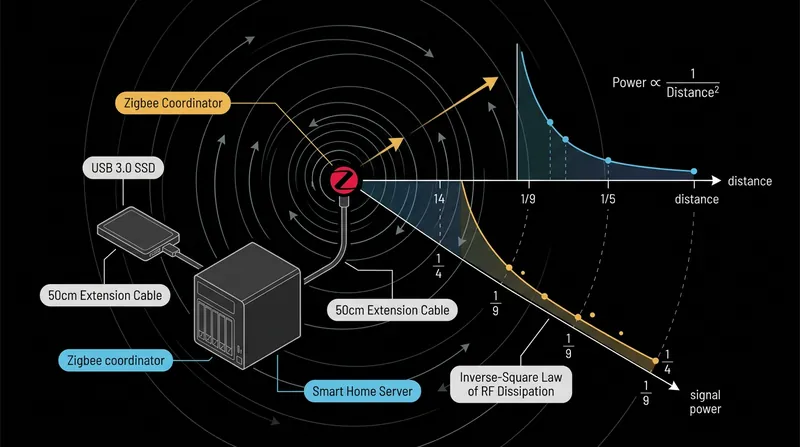

Smart home engineers universally recommend connecting USB coordinators through a shielded USB 2.0 extension cable. A length of just 50 to 100 centimeters is usually enough to pull the antenna out of the USB 3.0 noise bubble. "This single change eliminates the most common source of Zigbee interference in home setups," according to ZigbeeHubs documentation.

Using a USB 2.0 cable physically prevents the port from negotiating SuperSpeed data rates. Because USB 2.0 caps out at 480 megabits per second, it does not use the 5 gigabit-per-second signaling that generates the 2.4 GHz noise, eliminating the interference entirely on that specific connection.

Shielding the offending USB 3.0 peripherals also recovers lost signal margin. Intel's testing demonstrated that completely wrapping an external hard drive in conductive shielding reduced the emitted 2.4 GHz noise by 12 decibels. While wrapping a drive in foil is impractical for most living rooms, buying high-quality, heavily shielded USB 3.0 cables achieves a similar result.[1]

Placement of the server itself matters just as much. Tucking a Raspberry Pi and its attached coordinator behind a television or inside a metal networking cabinet creates a worst-case scenario. The metal surfaces reflect the USB 3.0 noise back at the coordinator while simultaneously blocking the incoming signals from the rest of the house.

The Limits of Channel Planning

Many users attempt to solve USB 3.0 interference by changing their Zigbee or Wi-Fi channels. While channel planning is essential for avoiding Wi-Fi overlap, it cannot fix a USB 3.0 noise problem. The interference generated by SuperSpeed signaling is broadband, meaning it blankets the entire 2.4 GHz spectrum rather than sitting on a single channel.[2]

Whether the coordinator is tuned to Zigbee channel 11 at the bottom of the band or channel 26 at the top, the USB 3.0 noise floor elevation remains relatively constant. The only way to restore the signal-to-noise ratio is to lower the noise floor by removing the interference source or moving the receiver.[1]

As smart homes transition toward Thread and Matter, this physical constraint will remain unchanged. Thread uses the exact same IEEE 802.15.4 radio standard and the same 2.4 GHz frequencies as Zigbee. A Thread border router plugged directly into a noisy USB 3.0 port will suffer the exact same deafness as a legacy Zigbee stick.

Ultimately, wireless reliability is dictated by the physical layer. Software cannot route around a radio that physically cannot hear. By treating the coordinator as a sensitive antenna rather than a standard computer peripheral, users can permanently eliminate the most common cause of smart home instability.[2]
