The Mechanics of Ultrasonic Flow Sensors: How Smart Water Valves Actually Distinguish Between a Running Toilet and a Burst Pipe

Smart water valves distinguish between a running toilet and a burst pipe by firing ultrasonic sound waves through the water supply and measuring the time delay to calculate exact flow rates. By sampling these flow signatures hundreds of times per second, the valve's processor can tell the difference between the 0.01 gallon-per-minute weep of a failing flapper and the catastrophic rush of a ruptured washing machine hose.

Traditional residential leak detection relies on point-of-use moisture pucks. You place a battery-powered sensor under the sink or behind the toilet, and if water pools enough to bridge two metal contacts, an alarm sounds. But that approach is entirely reactive. By the time a puck triggers, the water has already left the plumbing system and hit the floorboards.

The financial stakes of that delay are massive. According to data analyzed by ConsumerAffairs, the average U.S. household claim for water damage and freezing reached $12,514 between 2017 and 2021. Water damage accounts for nearly 24 percent of all homeowners insurance claims, costing insurers approximately $13 billion annually.[2]

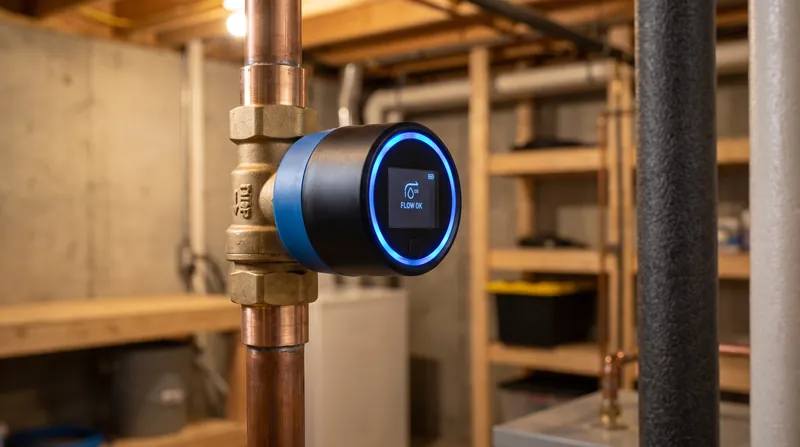

Inline ultrasonic valves, such as the Moen Flo and the StreamLabs Control, move the detection inside the pipe. These devices are installed directly on the home's main water line. They contain no moving parts—no turbines or impellers to wear out or restrict water pressure.[3]

Instead, they use transit-time ultrasonic flow metering. Two transducers sit diagonally across from each other inside the brass valve body. One sends a high-frequency sound wave downstream, and the other sends a wave upstream. Because sound travels faster when moving with the flow of water and slower when moving against it, the device measures the microscopic difference in transit time to calculate the exact volume of water moving through the pipe.[3]

This allows for astonishing precision. The StreamLabs Control and the Frizzlife LP365 can detect flow changes as small as 0.1 to 0.01 gallons per minute (GPM). Moen's Flo system runs daily automated health tests that can catch drips as small as a single drop per minute.[3][4]

That precision solves the most common, yet invisible, plumbing failure: the silent leak. The Environmental Protection Agency (EPA) estimates that the average household wastes more than 10,000 gallons of water every year. "The most common leaks in the home that waste the most water include dripping faucets, dripping showerheads and running toilets," notes John Hembree, a product development merchant at The Home Depot.[1][5]

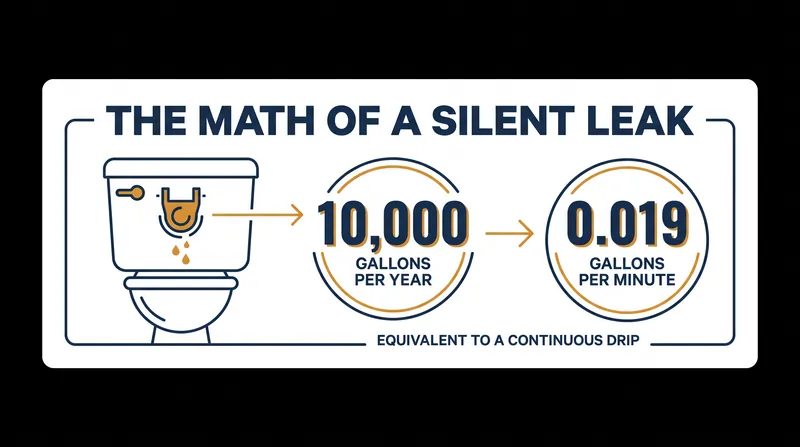

A standard toilet flapper weeping into the bowl doesn't damage drywall, but it drives up utility bills. A 10,000-gallon annual leak equates to a constant flow of roughly 0.019 GPM. Because ultrasonic sensors can detect flows down to 0.01 GPM, they can flag this exact baseline waste—something a floor-based moisture puck would never see.[6]

But detecting flow is only half the equation; the valve must also interpret it. If the system simply shut off the water every time it sensed flow, you could never run a sprinkler or fill a bathtub.

To solve this, the devices use algorithmic fingerprinting. When water flows through a specific fixture—say, a showerhead versus a dishwasher—it creates a unique pressure and flow signature. The Phyn Plus, for example, samples pressure waves 240 times per second to distinguish a running tap from a burst pipe.

Over a one-to-two-week learning period, the valve builds a profile of the home's normal water usage. It learns that the irrigation system runs for 45 minutes on Tuesdays at 4:00 AM, and that a shower typically pulls 2.5 GPM for ten minutes.[3]

Once the baseline is established, the system looks for anomalies. If a flow signature matches a toilet but runs continuously for three hours, the app sends an alert. If a pipe bursts and the flow rate spikes to 15 GPM when the house is empty, the motorized ball valve automatically rotates shut, cutting off the main water supply in seconds.[4]

The installation requires a licensed plumber to cut into the main water line, usually where it enters the house, and requires a nearby electrical outlet to power the Wi-Fi radio and the motorized valve.[4]

As the technology matures, it is fundamentally changing how the insurance industry views residential water risk. Many carriers now offer premium discounts for homes equipped with automatic shutoff valves, recognizing that stopping the flow at the source is the only reliable way to prevent a five-figure restoration claim. The next frontier is deeper integration into whole-home smart ecosystems, where the house itself knows it is empty and automatically tightens its water security parameters.[2][6]
