Charring vs. Melting: Why Cross-Laminated Timber Outlasts Steel in a 1,800-Degree House Fire

Inside the horizontal furnace at the Trees and Timber Institute in San Michele all'Adige, Italy, a five-layer panel of cross-laminated timber faced a continuous 1,800-degree Fahrenheit blaze. For three hours and six minutes, the 150-millimeter-thick wall absorbed the heat. When the fuel load finally exhausted itself, the panel was blackened and scarred, but the structure remained entirely stable and safe to enter.

For a prospective homebuyer walking through a modern, exposed-wood residential mid-rise, the visual appeal is obvious, but the instinctual fear remains: it is a building made of fuel. Yet, the physics of mass timber—specifically cross-laminated timber, or CLT—defy that intuition. Rather than igniting and collapsing, thick wooden panels rely on a predictable, measurable degradation process that engineers use to guarantee survival.[4]

The core mechanism is the char rate. When exposed to a standard compartment fire, structural softwoods degrade at a highly consistent pace of 0.65 millimeters per minute. As the outermost lamella burns, it transforms into a layer of carbon. This char layer possesses extremely low thermal conductivity, acting as a physical insulator that prevents the extreme heat from penetrating deeper into the panel.[1][3]

"The char layer is the main reason large-section timber can retain structural capacity during fire exposure," notes Cornerstone Timber Frames in a 2025 engineering review. Because the degradation is strictly linear, architects can simply oversize a load-bearing column by a calculated margin. If a building code requires a two-hour fire rating, the designer adds exactly 78 millimeters of sacrificial wood to the perimeter, knowing it will burn away while leaving the required structural core perfectly intact.

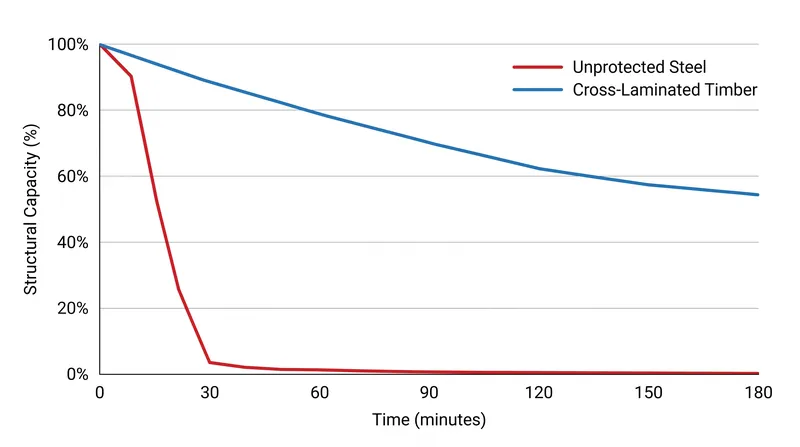

This behavior stands in stark contrast to conventional structural steel, which homebuyers often assume is the safer material. Steel does not burn, but it is highly thermally conductive. When unprotected steel reaches temperatures above 1,100 degrees Fahrenheit—a threshold easily crossed in the first 30 minutes of a severe house fire—it rapidly loses its yield strength. The metal bends, warps, and buckles, leading to sudden, unpredictable structural failure.[3]

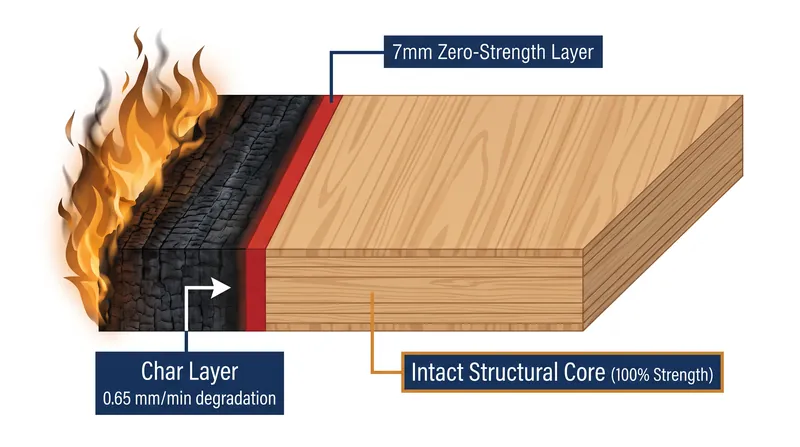

Wood, conversely, maintains its load-bearing capacity right up to the fire line. The European standard EN 1995-1-2 dictates that engineers must account for the char depth plus an additional 7-millimeter band known as the "zero-strength layer." This narrow heat-affected zone sits just behind the char and loses its mechanical properties, but the wood immediately behind it remains at room temperature and retains 100 percent of its original strength.[1]

The density of the panel also introduces a phenomenon called self-extinguishment. Dr. Richard Emberley, a researcher investigating mass timber fire safety, explains that the solid timber elements are compressed so tightly that they restrict oxygen flow to the combustion site. "The term self-extinguishment is used when the energy provided by the flames is not sufficient to break down the material and the fire needs an external source of energy in order to keep going," Emberley says. "Thus, you could say that the fire suffocates itself."[2]

However, this predictable 0.65-millimeter-per-minute char rate relies on the panel remaining intact. CLT is manufactured by gluing alternating layers of solid-sawn lumber together. If the adhesive fails under high heat before the wood chars, a phenomenon known as delamination occurs. The charred layer falls off, exposing fresh wood to the flames and spiking the degradation rate to 0.8 or even 1.0 millimeters per minute.[1]

To prevent this, modern CLT manufacturers utilize specialized heat-resistant polyurethane adhesives. In comprehensive tests conducted by the University of British Columbia, panels bonded with these advanced adhesives exhibited zero layer fall-off, performing identically to solid, homogenous wood logs. The char remained attached, the insulation held, and the fire eventually starved.

The implications for the insurance industry and building codes are substantial. As jurisdictions update their codes to allow taller timber structures, the reliance on the 0.65-millimeter metric becomes the foundational math of modern urban planning. It shifts fire safety from a binary question of combustibility to a precise calculation of time.[4]

The next frontier is understanding how different wood species alter this baseline. While spruce and pine sit at the 0.65 mark, denser hardwoods form an even thicker insulating layer, potentially pushing the survival time of a wooden skyscraper even further into the future.[3]

For the residential construction market, this distinction changes the calculus of building safely. A homeowner does not need to hide their structural framework behind layers of pink fire-rated gypsum board. By understanding the exact millimeter-by-millimeter rate at which wood sacrifices itself to protect its core, the industry is turning a combustible material into a reliable fire barrier.[4]
