Portland Cement Repointing Spalls Historic Brick by Trapping Moisture and Exceeding the Masonry's Compressive Flexibility

A property owner facing a crumbling brick facade must make a decision that will dictate the survival of the wall. When they hire a contractor to repoint the joints, the choice of mortar mix is the only variable that matters.

If the mason arrives with standard bags of modern gray cement, the owner has just authorized the slow destruction of their building. The mechanism of failure is not immediate, but it is absolute, driven by a fundamental mismatch in material physics.

Modern construction relies on Portland cement, a highly rigid binder that cures rapidly and achieves massive compressive strength. When applied to the softer, lower-fired clay bricks manufactured before the early 20th century, this material alters how the wall handles stress.

The mechanics of a sacrificial joint

Traditional brick walls were built using lime mortar, a simple mixture of lime putty and sand. This historical material was intentionally designed to be the weakest component of the entire masonry system, acting as a sacrificial joint.

A historic brick wall is a dynamic structure that constantly absorbs and releases moisture from rain and ground dampness. Lime mortar acts as a breathable wick, drawing that moisture out of the clay bricks and allowing it to evaporate.

Furthermore, lime mortar is highly flexible. As the building expands in the summer heat and contracts in the winter cold, the soft mortar cushions the movement. Over decades, the mortar slowly weathers away, sacrificing itself so the bricks remain intact.

The industrial shift to Portland cement

The architectural landscape shifted dramatically in the late 1890s with the widespread commercialization of Portland cement. Builders favored it because it cured in days rather than months, allowing for the faster construction of taller, heavier steel-framed structures.

Modern Type S Portland cement, the standard mix found in most hardware stores today, cures to a compressive strength of roughly 1,800 pounds per square inch. Modern bricks are fired in high-temperature kilns to withstand upwards of 3,000 psi, making them perfectly compatible.[4]

However, historic bricks fired in traditional coal or wood kilns before 1900 rarely exceed a compressive strength of 600 to 1,000 psi. When a mason repoints a historic wall with Type S cement, they lock a soft, fragile unit inside a rigid, unyielding grid.[1]

How trapped moisture destroys the brick face

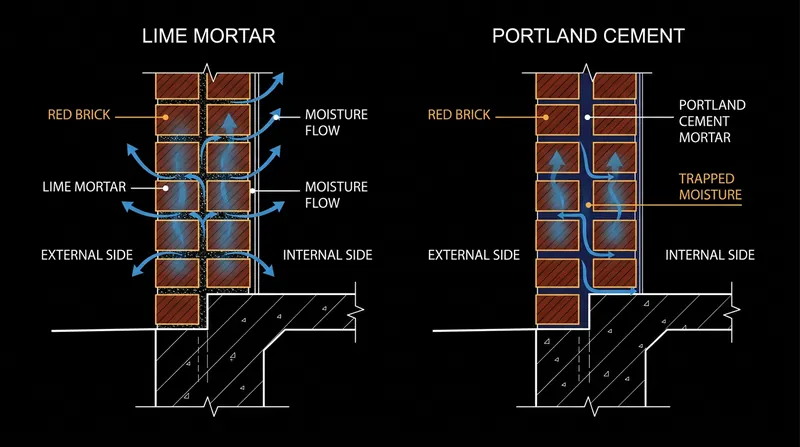

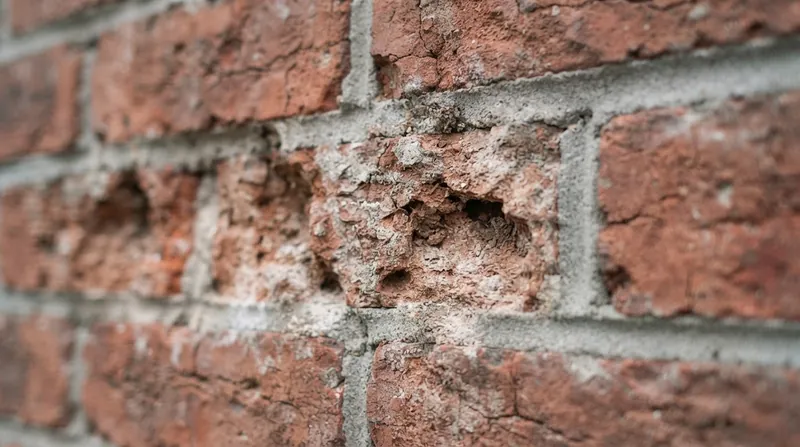

The most visible and devastating consequence of this mismatch is spalling, the physical shearing off of the brick's outer face. Portland cement is virtually impermeable to water vapor, fundamentally breaking the older wall's ability to breathe and dry out.[2]

When rain hits the facade, the porous historic brick still absorbs the water. Because the new cement joints block the natural evaporation path, the moisture remains trapped deep inside the fired clay unit.

When winter temperatures drop below freezing, that trapped water turns to ice. Water expands by exactly 9 percent when it freezes, exerting immense internal hydraulic pressure against the interior of the fired clay.

Because the Portland cement joint is too hard to yield, the pressure takes the path of least resistance and blows the front face off the brick. The resulting damage exposes the even softer, under-fired interior of the brick to the elements, accelerating the decay.[2]

The compressive strength inversion

Beyond moisture trapping, the sheer mechanical rigidity of Portland cement destroys older masonry through thermal expansion. A brick wall facing the afternoon sun can heat up significantly, causing the entire facade to expand outward and upward.

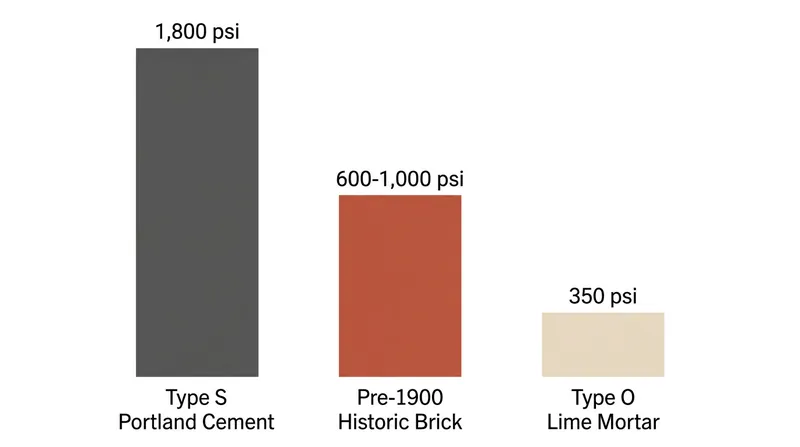

In a traditional wall, the Type O lime mortar, which possesses a compressive strength of just 350 psi, compresses slightly to absorb this expansion. The wall moves as a cohesive, flexible unit without cracking the masonry.

When repointed with 1,800-psi Portland cement, the joints refuse to compress. As the historic bricks expand against the immovable cement grid, the softer clay is crushed at the margins where it meets the mortar.[1]

This creates a network of micro-fractures along the edges of every brick. Over several seasonal cycles, the edges crumble away, leaving the hard gray mortar protruding past the recessed, damaged masonry, which is a classic visual signature of a botched repointing job.

Specifying the right mortar for the era

Halting this destruction requires property owners to explicitly specify historically appropriate materials before any work begins. Standard commercial mortar mixes are categorized by letters representing descending levels of compressive strength: M, S, N, O, and K.

For pre-1900 buildings, preservation engineers mandate Type O mortar, which contains a high ratio of lime to cement, or Type K, which is almost entirely lime. In many sensitive cases, pure lime putty with zero Portland cement is the only safe option.[2][4]

"The use of a high-strength mortar on a low-strength masonry unit will inevitably lead to the deterioration of the masonry," the International Masonry Institute warns its certified contractors regarding historic building restoration.

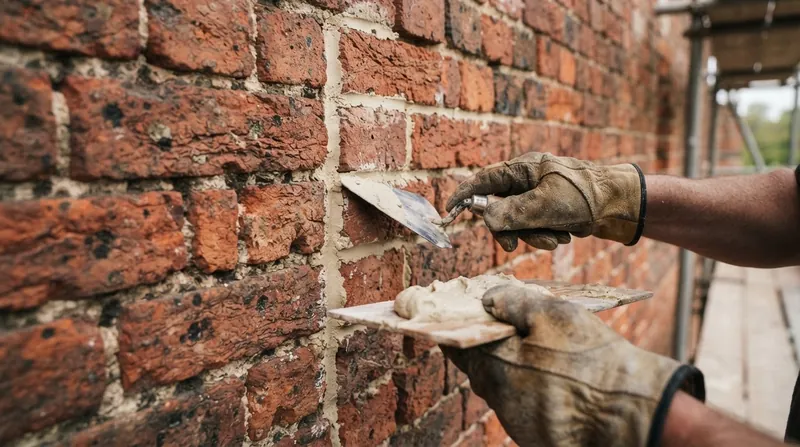

Sourcing these materials requires effort. Most big-box hardware stores do not stock Type O or pure lime mortar, meaning contractors must custom-mix the ratios on site using hydrated lime, specialized sand, and specific water proportions to match the original joint.

This custom mixing, combined with the slower curing time of lime, makes historic repointing more expensive upfront. A proper lime repointing job can cost 30 to 50 percent more than a standard commercial cement application.

Yet, that premium is a fraction of the alternative. Once Portland cement is applied, removing it requires grinding it out with diamond blades, a process that frequently damages the soft brick edges even further during the extraction.[1]

If left in place, the resulting spalling eventually requires the complete replacement of the historic bricks themselves. For a property owner, insisting on the softer, traditional mortar is not merely an aesthetic preference, but the only way to ensure the wall survives.
