The 1.5-Inch by 3.5-Inch Standard: Why a "Two-by-Four" is Not Actually Two Inches by Four Inches

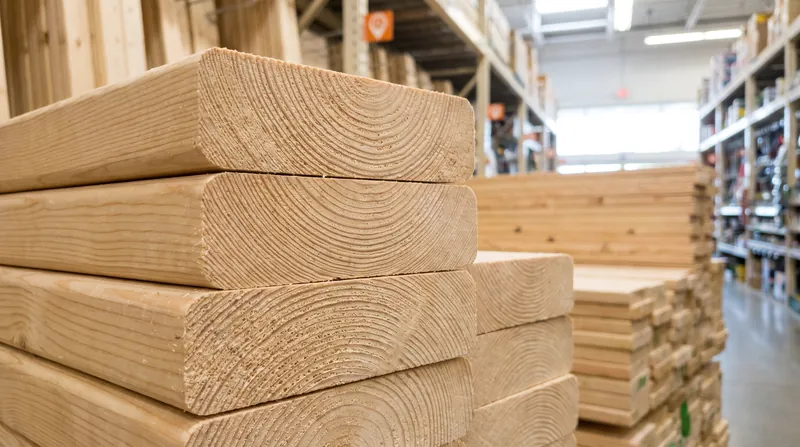

A homeowner purchasing a 2x4 at a hardware store today will carry home a piece of wood that measures exactly 1.5 inches thick and 3.5 inches wide. The discrepancy between the name and the physical object is not a modern cost-cutting measure or a deceptive marketing tactic, but the physical consequence of how a tree is transformed into a building material. The "nominal" size—two inches by four inches—describes the rough, wet piece of timber as it first comes off the sawmill blade, before the drying and surfacing processes required for modern construction.[2][3]

When a log is first milled, the resulting board is "green," meaning it contains a high percentage of moisture. A freshly cut 2x4 genuinely measures two inches by four inches, but green lumber is unstable. As the wood dries, the cellular structure shrinks, causing the board to warp, twist, and cup. To prevent this, commercial lumber is kiln-dried to a moisture content of 19% or less. This drying process causes the board to shrink across its width and thickness, reducing the dimensions before any further processing occurs.[4][5]

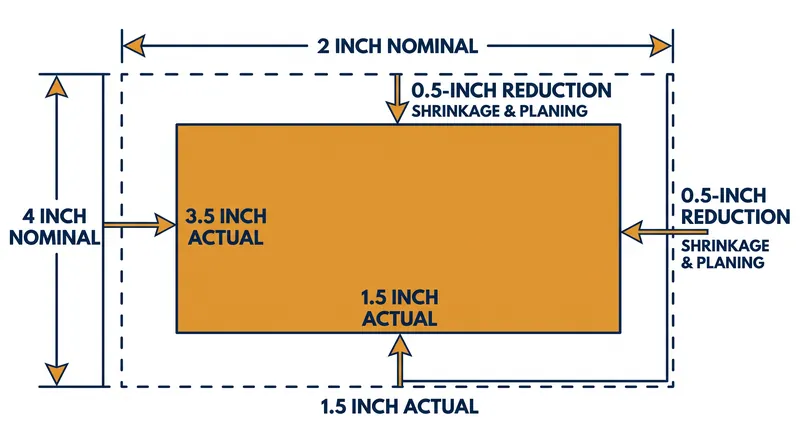

Following the kiln, the shrunken, rough-sawn board is sent through a planer. This machine uses high-speed rotating blades to shave the rough exterior down to a smooth, uniform surface on all four sides, a process known as surfacing (S4S). The planer removes the splinters, saw marks, and irregularities, ensuring that every 2x4 in a stack is identical and safe to handle. The combination of shrinkage during drying and the material removed by the planer accounts for the missing half-inch on both dimensions.[3][5]

The 1.5-inch by 3.5-inch standard was not always uniform. In the early 20th century, a 2x4 could measure 1.625 by 3.625 inches, or 1.75 by 3.75 inches, depending on the region and the specific mill. This lack of standardization created chaos for builders, architects, and the emerging prefabricated housing industry. A wall framed with lumber from the Pacific Northwest might not align with windows manufactured in the Midwest, forcing carpenters to constantly adjust and shim their work on-site.[2][4]

The push for a national standard began in the 1920s under Secretary of Commerce Herbert Hoover, but it took decades of negotiation between competing regional lumber associations to reach a consensus. The current dimensions were finally codified in 1964 with the publication of the American Softwood Lumber Standard (PS 20). The standard established that a nominal 2x4, if surfaced dry (at or below 19% moisture content), must measure exactly 1.5 by 3.5 inches. If surfaced green (above 19% moisture content), it must measure 1.5625 by 3.5625 inches, allowing for the shrinkage that will occur as it dries in the field.[1][2]

The standardization of the 2x4 fundamentally altered American architecture. The reliable, uniform dimensions allowed for the development of platform framing, the system used in nearly all modern residential construction. Because every stud is exactly 3.5 inches wide, builders can standardize the length of nails, the depth of electrical boxes, and the thickness of fiberglass insulation batts. The entire supply chain of residential construction materials—from drywall sheets to pre-hung doors—is engineered around the assumption that the structural skeleton of the house is built with 1.5-inch by 3.5-inch lumber.[2][4]

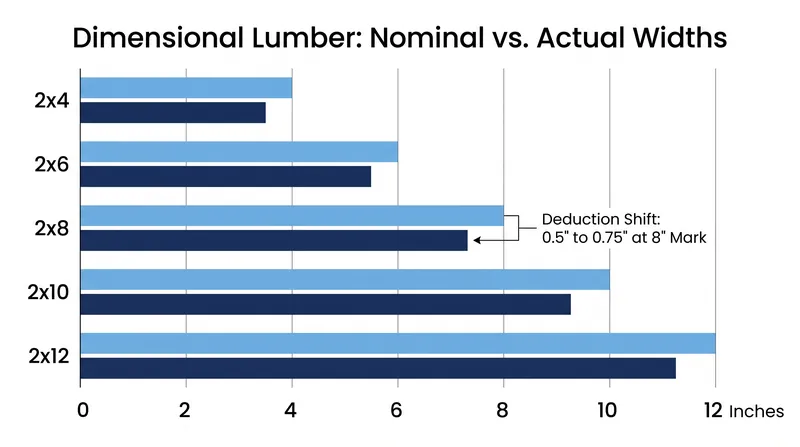

The nominal-versus-actual rule applies to all dimensional lumber, but the deduction is not a flat half-inch across the board. For lumber with a nominal width of 2 to 6 inches, the actual dimension is 0.5 inches less. However, for boards with a nominal width of 8 inches or more (such as a 2x8, 2x10, or 2x12), the deduction increases to 0.75 inches. A nominal 2x10, therefore, measures 1.5 inches by 9.25 inches. The larger deduction accounts for the proportionally greater shrinkage that occurs in wider boards during the kiln-drying process.[1][3]

While the 1.5 by 3.5-inch standard governs softwood framing lumber (pine, spruce, fir), hardwood lumber (oak, maple, walnut) used for furniture and cabinetry follows an entirely different sizing system. Hardwoods are typically sold by the "quarter," referring to the thickness in quarter-inch increments (e.g., 4/4 is one inch thick, 8/4 is two inches thick). Unlike framing lumber, hardwoods are often sold rough-sawn, leaving the surfacing and final dimensioning to the woodworker, highlighting the specialized nature of the 2x4 as a mass-produced structural component rather than a raw material.[4]
