Sinking Traps and Thermal Bypasses Explain Why Recirculating Domestic Hot Water Loops Bleed Standby Energy

Plumbing manufacturers and hardware store displays frequently market retrofit hot water recirculation pumps as a straightforward green upgrade. The claim is that by keeping hot water instantly available at the tap, homeowners save thousands of gallons of water and the energy required to heat it.[4]

But the physical evidence contradicts this marketing. While recirculation systems do eliminate the water wasted while waiting for a shower to warm up, they introduce a continuous thermal bleed into the home's plumbing architecture.

By turning static pipes into an active loop, these systems force the primary water heater to continuously replace heat lost through the pipe walls. For a homeowner looking at their utility bill, the energy penalty of maintaining that loop vastly outweighs the cost of the saved water.

To understand why a domestic hot water system bleeds energy, you have to look at how water behaves inside a vertical pipe. Even when every faucet in a house is closed and the recirculation pump is switched off, the water heater is still losing energy.

The Physics of Thermosiphoning

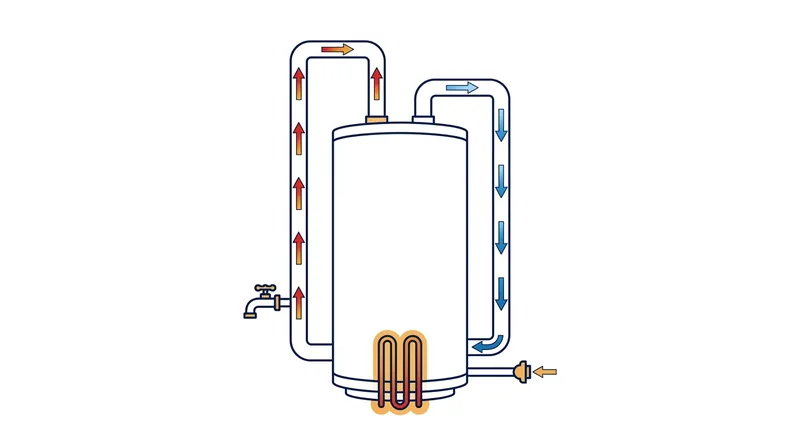

This passive energy loss is driven by a thermodynamic process called thermosiphoning. Because hot water is buoyant, it naturally rises out of the storage tank and climbs into the vertical supply lines routed through the walls.

As that elevated hot water sits in the uninsulated copper or cross-linked polyethylene (PEX) piping, it transfers its heat to the ambient air. The cooled water then becomes denser and sinks back down into the tank, displacing more hot water upward.

This creates a continuous, silent convection loop. The United States Department of Energy notes that this unchecked thermosiphoning can cost a homeowner between $25 and $60 annually in wasted standby energy.[5]

"Heat is carried out of the tank by the movement of hot water mixing with cold water in the pipes, called thermosiphoning, even when no water is being drawn out of the taps," explains a technical bulletin from the American Society of Heating, Refrigerating and Air-Conditioning Engineers.[1]

Sinking Traps and Mechanical Nipples

To stop this passive convection, plumbers install sinking traps, which are more commonly known in the trade as heat traps. Historically, a sinking trap was simply a physical U-shaped loop soldered into the copper piping directly above the heater.

Because hot water cannot easily sink through the bottom of the U-loop, the thermal convection cycle is broken. Today, modern water heaters utilize mechanical heat trap nipples installed directly into the tank's inlet and outlet ports.

These specialized fittings contain internal mechanisms—typically a Teflon ball on the hot side and a polypropylene ball on the cold side. The balls float or sink to seal the pipe when water is not flowing, physically blocking the thermosiphoning effect.

According to 2026 installation guidelines from A.O. Smith, a major water heater manufacturer, these mechanical traps can cut convective heat loss in the piping by as much as 60 percent during standby periods.[2]

The Thermal Bypass Valve

While heat traps solve passive standby loss, active recirculation systems introduce a much larger energy bleed. In new construction, builders install a dedicated return pipe to carry unused hot water back to the tank, which is then heavily insulated.

However, retrofitting a dedicated return line into an existing home requires tearing open drywall, which costs between $1,000 and $3,000. To avoid this, retrofit kits from companies like Grundfos and Taco use a thermal bypass valve.[4]

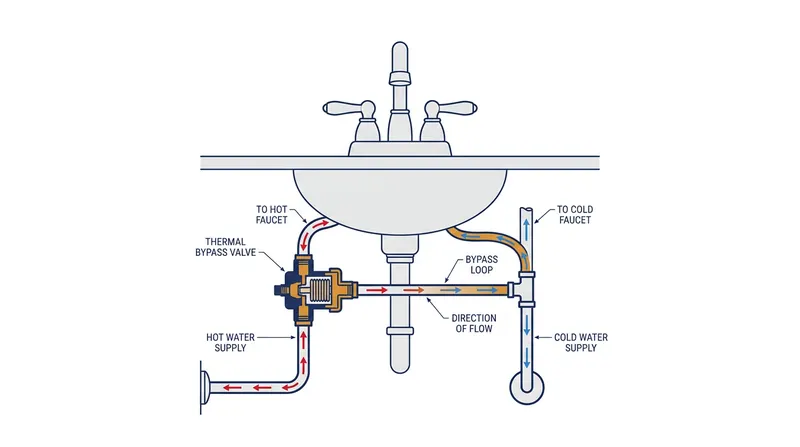

Installed under the sink furthest from the water heater, this crossover valve connects the hot and cold water lines. When the recirculation pump pushes hot water through the supply line, the cooling water at the end of the run is forced through the bypass valve.

Because there is no dedicated return pipe, the bypass valve dumps that cooling water directly into the home's existing cold water line, using it as a makeshift return path back to the water heater.[4]

The Cold-Line Heat Bleed

This bypass mechanism is where the system's energy efficiency collapses. Cold water lines are almost never insulated, meaning the returning warm water rapidly sheds its heat into the surrounding floor joists, crawlspaces, and interior walls.

By filling the cold water line with 85-degree to 90-degree Fahrenheit water, the system effectively turns the home's plumbing into a giant, uninsulated radiator. The water heater must now constantly fire to replace the massive thermal loss occurring across both the hot and cold plumbing branches.

"The system maintains warm water at the plumbing fixtures by using a pump to cycle warm water through the plumbing loop," notes a 2022 technical discussion by the International Association of Certified Home Inspectors.[3]

"This type of system can save water, but results in higher energy costs due to having to constantly reheat water that has cooled off in the loop," the inspection analysis concludes.[3]

Mitigating the Energy Penalty

The resulting burner cycles are significant. Field measurements of a standard residential gas water heater show that without a recirculation pump, the unit fires for roughly 5.1 minutes every five hours to maintain its internal temperature.[3]

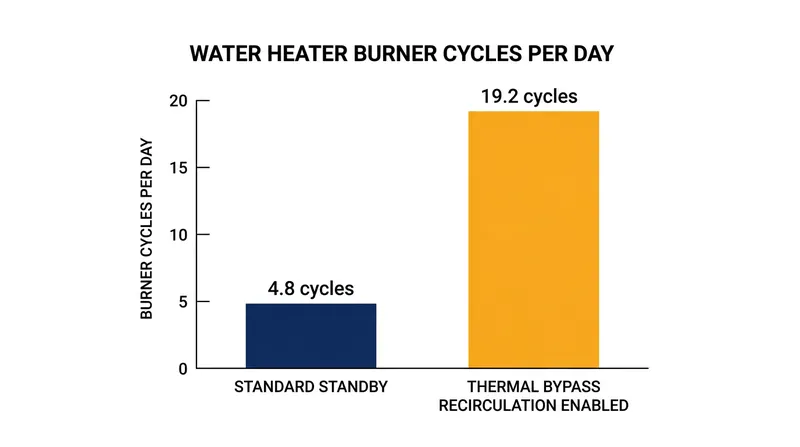

When a thermal bypass recirculation loop is activated, that same water heater fires every 1.25 hours. The convenience of instant hot water effectively quadruples the appliance's standby energy consumption.[3][6]

To mitigate this bleed, manufacturers now integrate smart controls rather than allowing pumps to run continuously. Aquastats monitor the return temperature, shutting the pump off when the bypass line reaches a specific threshold.

Alternatively, demand-controlled systems use a physical push-button or motion sensor in the bathroom. The pump only activates for the two minutes required to prime the hot water line, ensuring the cold water pipe does not spend the entire day radiating heat into the walls.
