Why Overdriven Drywall Screws Destroy Resilient Channel Soundproofing

On December 7, 2020, acoustic engineers at ABD Engineering published field data detailing a catastrophic failure mode in modern soundproofing: the acoustic short circuit. When a contractor drives a 41-millimetre drywall screw through a resilient channel and into the wooden stud behind it, the mechanical decoupling that blocks sound transmission is instantly destroyed.[1]

For a homeowner or property developer investing in a quiet space, this invisible error is financially punishing. A wall designed to meet the International Building Code minimum of Sound Transmission Class (STC) 50 can plummet to an STC of 40, rendering conversations in the next room entirely audible.

The failure occurs because soundproofing relies on breaking the physical path that vibrations travel along, rather than just adding mass. Once a rigid metal screw bridges that carefully engineered gap, the vibration energy bypasses the isolation system entirely, turning the wall back into a giant speaker membrane.

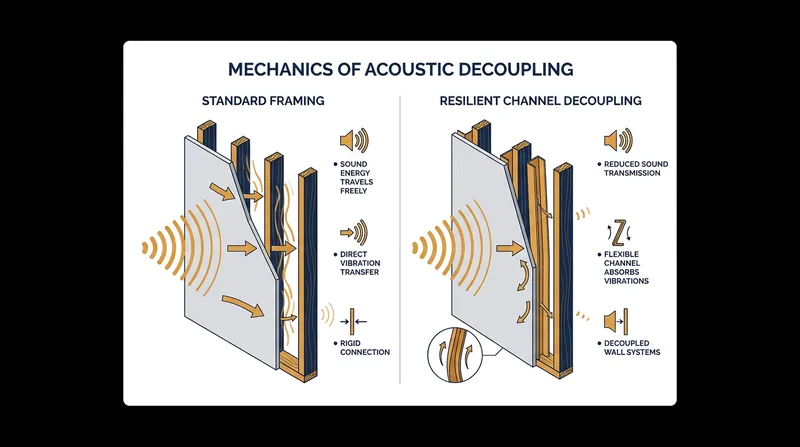

The Mechanics of Decoupling

Sound travels through a building as mechanical vibration. When low-frequency sound waves—like bass from a home theatre or heavy footfalls—hit a standard wall, the 15.9-millimetre gypsum board vibrates, transferring that energy directly into the wooden studs.

Those studs then vibrate the drywall on the opposite side, transmitting the noise into the adjacent room. Resilient channels, typically manufactured from 25-gauge galvanized steel, are designed to interrupt this structural path by suspending the drywall away from the framing.

"Breaking the rigid connection between the two faces of the wall can significantly improve the sound transmission loss of the wall," noted J.S. Bradley and J.A. Birta in a September 2001 National Research Council of Canada study. The thin metal channel flexes under acoustic pressure, absorbing the energy.

According to data from LocalNoiseLaws.com, a properly installed single-leg resilient channel provides a 12.7-millimetre standoff from the stud. This decoupling can improve a wall's STC rating by 8 to 15 points, which is far more effective than simply doubling the mass of the drywall.[2]

The Anatomy of a Short Circuit

The system's vulnerability lies entirely in the fasteners used during the final stages of construction. To hang the drywall, installers must use screws that are short enough to pierce the gypsum board and the metal channel flange, but no further.

A standard 25-millimetre screw achieves this safely when hanging a single layer of 15.9-millimetre Type X drywall. However, drywall crews accustomed to standard framing often use 41-millimetre or 50-millimetre screws to ensure a strong hold, unaware of the acoustic consequences.

"Every screw that accidentally contacts a stud directly — called a short circuit — compromises the decoupling and reduces performance dramatically," notes a 2026 technical guide from DrywallFAQs.com. The fastener bites directly into the wooden stud, creating a rigid acoustic bridge.[3]

This bridge locks the drywall tightly to the structural framing, completely bypassing the channel's flexible suspension. Just like an electrical short that allows current to bypass a resistor, an acoustic short allows vibration to transmit 100 percent of its energy directly into the frame.[4]

The Acoustic Penalty

The degradation in soundproofing performance is immediate, severe, and entirely hidden behind the finished wall. ABD Engineering testing shows that a single short-circuited screw can reduce a wall's STC and Impact Insulation Class (IIC) ratings by a full point.[1]

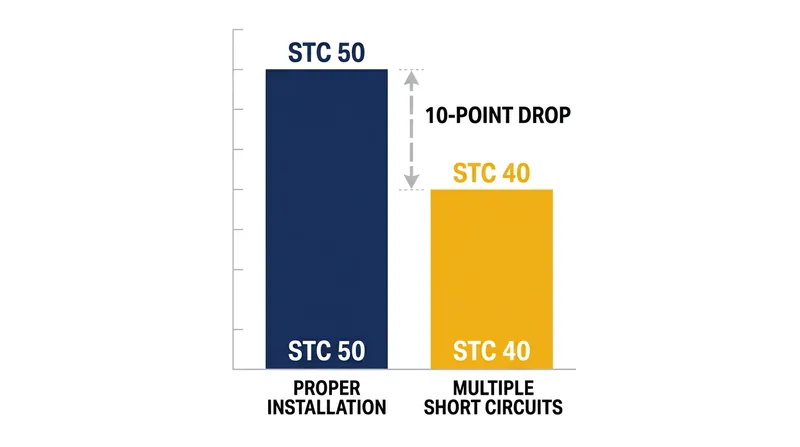

In a worst-case scenario with multiple short circuits across a wall, the STC rating can drop by as much as 10 points. This effectively erases the entire acoustic benefit the resilient channel was purchased to provide, wasting the $90 to $120 material investment per room.[1][3]

The low-frequency performance is particularly devastated. The NRC Canada research demonstrated that resilient channels modify the mass-air-mass resonance frequency of a wall. A short circuit stiffens the assembly, allowing low bassy sounds and the thud of footfalls to pass through unhindered.

For a buyer or renter, a 10-point STC drop is the difference between hearing a faint murmur and being able to clearly understand a neighbor's conversation. The wall fails to meet the STC 50 requirement mandated for multi-family party walls, exposing developers to liability.

Structural Load and Compression

Fastener length is not the only way to short-circuit a resilient channel. The orientation of the channel itself dictates how it handles the structural load of the drywall. On vertical walls, the mounting flange must be installed facing downward.

When installed correctly, the weight of the gypsum board pulls the channel outward, allowing the metal to flex as designed. "If it is installed upside down, the weight of the drywall will start to crush it into the stud and cause it to perform worse by several STC points," ABD Engineering reports.[1]

External pressure can also cause temporary or permanent short circuits after the occupants move in. Heavy furniture pushed tightly against a decoupled wall can compress the channel, bringing the drywall into direct contact with the studs.

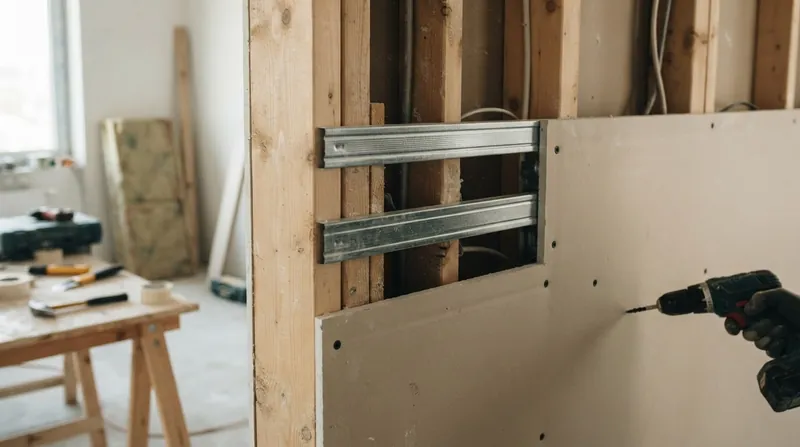

Similarly, mounting a heavy television or cabinetry directly through the drywall and into the studs will instantly ground the system. The lag bolts act as massive acoustic bridges, ruining the isolation for the entire wall assembly.

Alternatives to Resilient Channels

Because resilient channels have an estimated post-construction failure rate of up to 90 percent due to these installation errors, many acoustic professionals now recommend sound isolation clips. These clips bolt directly to the studs and hold a rigid furring channel in a rubber or neoprene bushing.

"Much better to use resilient sound clips and Drywall Furring Channel," says Ted White of The Soundproofing Company, quoted in a 2026 Resilmount industry brief. "For a low cost solution you can install a ceiling with these steel clips and channel that would put any resilient channel ceiling to shame."

Sound clips provide a full 22-millimetre air gap, making it nearly impossible for a standard drywall screw to accidentally reach the stud. While they cost more per unit, they deliver a more reliable STC improvement of 12 to 20 points.[2]

"Resilient channel provides decoupling on one side of the wall, making it a solid, cost-effective assembly for many residential applications," notes a 2026 ProJul guide. However, it requires meticulous oversight, as a single overdriven screw is all it takes to ruin the isolation.
