Buoyant Air Columns Drive Skyscraper Stack Pressure: How Revolving Doors Stop Lobby Wind Tunnels

A supertall building can only exist if its ground-floor entrances can physically open against the crushing weight of the atmosphere. In a 300-meter tower during winter, the indoor air column is significantly warmer and lighter than the outside air. This creates a massive pressure differential that would slam standard swing doors shut.

The condition that has to hold for a skyscraper to function is a continuous air seal at the ground floor. Without it, the building acts as a giant chimney, drawing freezing air through the lobby at gale-force speeds. This phenomenon is known as the stack effect, and it governs high-rise mechanical design.

"The stack effect is the most powerful passive force acting on a tall building's envelope," notes the 2025 American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) Fundamentals Handbook. When heated indoor air rises through elevator shafts, it leaves a severe vacuum at the base.

To counteract this, architects rely on a nineteenth-century invention that functions as a rotary airlock: the revolving door. By ensuring that at least two wings are always in contact with the curved enclosure, the door allows human passage while completely blocking the direct flow of air.

The Physics of Buoyant Air Columns

The mechanics of the stack effect rely on basic thermodynamics and fluid dynamics. Air density changes with temperature; cold air is dense and heavy, while warm air is expansive and light. In a heated winter building, the entire interior column of air wants to float upward.

As this warm air pushes against the upper floors and escapes through microscopic leaks in the facade, it creates positive pressure at the top of the tower. Conversely, the departure of that air leaves a severe negative pressure zone at the ground level. The taller the building, the more extreme the pressure difference becomes.

Somewhere near the middle of the tower lies the neutral pressure level, or NPL. At this specific elevation, the indoor and outdoor atmospheric pressures perfectly equalize, meaning air neither rushes in nor pushes out. Below the NPL, the building inhales; above it, the building exhales.

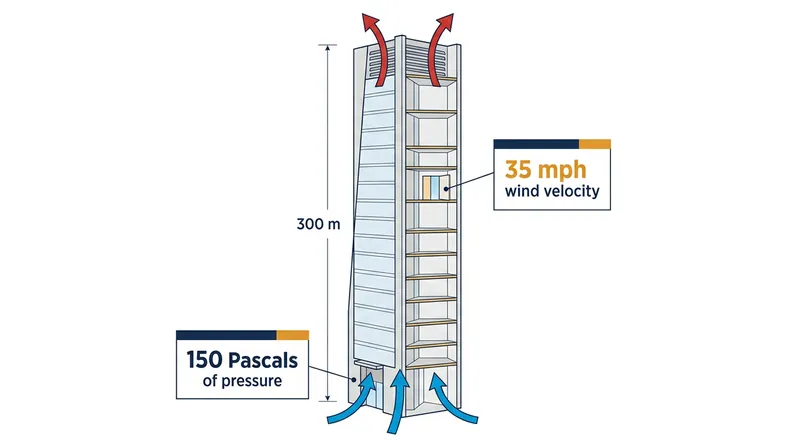

According to researchers at the National Institute of Standards and Technology (NIST), a 300-meter skyscraper with a 25-degree Celsius temperature difference generates roughly 150 pascals of pressure at its base. That is enough force to make a standard lobby door feel like it weighs 50 pounds.

If a standard swing door were propped open under these conditions, the resulting inrush of air would reach velocities exceeding 35 miles per hour. This localized wind tunnel would strip the lobby of its heat, scatter loose objects, and make the space entirely uninhabitable for occupants.[2]

The Rotary Airlock Mechanism

The revolving door solves this pressure crisis through pure geometric isolation. Patented in 1888 by Theophilus Van Kannel, the device was originally marketed to keep out street noise and dust. However, structural engineers quickly realized its true value lay in its ability to act as a continuous seal.[1]

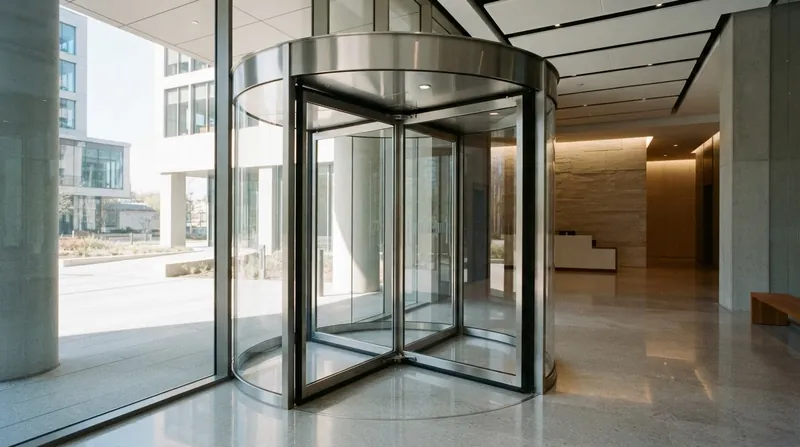

A standard four-wing revolving door ensures that the interior and exterior environments never directly connect. As a person walks through, the wings sweep a confined volume of air from one side to the other, but the direct linear path is permanently blocked by the central pivot.

"The revolving door is essentially a low-speed pump," explains the Factlen Editorial Team's structural analysis. "It meters the exchange of air at a rate dictated solely by pedestrian traffic, rather than surrendering to the massive pressure differential of the building's internal chimney."[2]

This airlock function is why building codes often require revolving doors as the primary entrance for structures over a certain height. While swing doors are mandated for emergency egress, they are heavily weather-stripped and often feature mechanical assists just to overcome the building's internal vacuum.[1]

Elevator Shafts and the Piston Effect

The stack effect is heavily exacerbated by the vertical voids that run the entire height of a skyscraper. Elevator shafts, stairwells, and mechanical chases act as perfect flues, allowing the buoyant air to accelerate upward without encountering physical resistance from floor slabs.

When a high-speed elevator car moves through one of these shafts, it acts like a massive piston inside a cylinder. An ascending car pushes a column of high-pressure air ahead of it while drawing a vacuum behind it, violently compounding the baseline stack pressure at the lobby level.

To mitigate this, modern supertall buildings do not rely on revolving doors alone. Engineers compartmentalize the vertical shafts, breaking the continuous air column into smaller, manageable segments. Transfer floors and sealed mechanical zones prevent the air from traveling uninterrupted from the lobby to the penthouse.[1]

Despite these internal baffles, the ground-floor airlock remains the critical first line of defense. If the lobby seal fails, the entire carefully balanced mechanical ecosystem of the building collapses. This leads to whistling elevator doors, freezing lower floors, and overheated upper levels that cannot be regulated.

Implications for Modern Occupants

For the everyday resident or office worker, these invisible pressure dynamics dictate the physical experience of entering a high-rise. The heavy resistance felt when pulling open a side swing door is not just a stiff hinge. It is the occupant physically fighting the buoyant lift of thousands of tons of indoor air.[2]

The sheer force of the stack effect frequently overwhelms standard architectural hardware. If a building's internal pressure is not properly managed, the vacuum can prevent electronic strike plates from latching. This leaves secure doors permanently ajar and compromises the building's access control systems.

The energy penalty of a compromised lobby seal is staggering for property managers. Uncontrolled air infiltration forces the building's mechanical systems to continuously heat freezing outdoor air. This drives up utility costs and places immense strain on the ground-floor boiler systems during peak winter months.

The stack effect reverses in the summer, though with less intensity due to smaller temperature differentials. When the building is heavily air-conditioned, the cold, dense indoor air sinks. This creates positive pressure at the lobby doors and negative pressure at the roof.

During these cooling months, the revolving door prevents the heavy, conditioned air from spilling out onto the hot sidewalk. Whether keeping the winter vacuum at bay or holding back the summer chill, the rotary airlock remains the unsung mechanical hero of vertical urban living.

The race to build taller structures remains as much a battle against internal fluid dynamics as it is against external wind loads. As long as developers continue to stack heated spaces hundreds of meters into the sky, the simple geometry of the revolving door will remain a non-negotiable fixture of the modern skyline.
