The Mechanics of Enthalpy Cores: Why the 'Cold Climate' Rule for HRVs and ERVs is Failing Modern Homes

Northern builders swear by Heat Recovery Ventilators (HRVs) to aggressively dump winter moisture and protect tight wall assemblies from condensation rot. Southern contractors insist just as fiercely on Energy Recovery Ventilators (ERVs) to block oppressive summer humidity from overwhelming the air conditioning. Both camps rely on a decades-old geographic binary that dictates ventilation choices based on a line drawn across a climate map. But as building envelopes tighten below 2.0 Air Changes per Hour at 50 Pascals (ACH50), that simple rule is failing in the field, leaving homeowners with dripping windows in January and clammy air in August.

The disagreement stems from the paradox of modern construction. Once a house is properly air-sealed, it stops breathing on its own. The occupants are trapped with their own moisture, carbon dioxide, and cooking odors, making mechanical ventilation mandatory. The choice between an HRV and an ERV dictates exactly how that fresh air interacts with the home's internal climate, and picking the wrong unit actively fights the building's physics—a costly mistake for a homeowner trying to balance comfort and utility bills.[3]

Both machines perform the same foundational task. They run two balanced airstreams—stale indoor air exhausting out, fresh outdoor air pulling in—past each other through a heat-exchange core. A properly sized unit recovers 70 to 90 percent of the sensible heat that would otherwise be lost to the outdoors. In a cold climate, that is the difference between a comfortable living room and a heating bill that embarrasses the architecture. The critical difference lies in what else the core allows to pass through.[2]

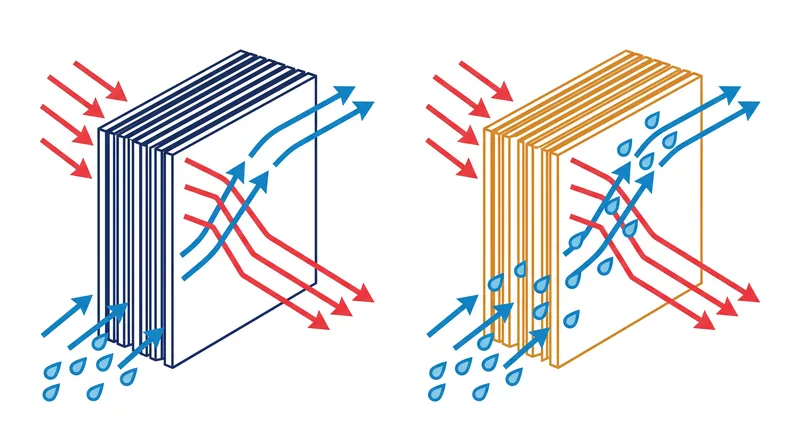

An HRV features a solid metal or plastic core that transfers sensible heat only. Water vapor remains trapped in its original airstream. In a cold climate, an HRV aggressively flushes indoor humidity outside. In the 1990s, when homes were leakier and naturally dry in winter, this was seen as a feature to prevent condensation. For a homeowner today, it means the system will relentlessly dry out the house, potentially cracking hardwood floors and irritating throats.[1]

An ERV, by contrast, uses an enthalpy core—often a vapor-permeable membrane or a desiccant wheel. This core transfers both sensible heat and latent heat, meaning moisture moves between the airstreams. In the summer, it blocks incoming outdoor humidity from entering the house. In the winter, it returns a portion of the indoor moisture back into the dry incoming air, preventing the house from over-drying and keeping the indoor relative humidity in a comfortable range.[2]

The breakdown of the traditional climate rule happens in mixed climates and ultra-tight homes. A modern, well-sealed house in Climate Zone 6, like Minneapolis, traps all the moisture generated by a family cooking, showering, and breathing. If an ERV is installed to retain winter moisture, it actively fights the home's need to shed that excess humidity. The system pushes indoor relative humidity above 50 percent when it is 20 degrees Fahrenheit outside, resulting in severe window condensation and potential wall rot.[1]

Conversely, installing an HRV in a mixed climate like Kansas City or a damp climate like Seattle solves the winter moisture problem but creates a summer liability. Because an HRV cannot block moisture, it imports 100 percent of the outdoor summer humidity directly into the house. For the homeowner, this significantly increases the latent load on the air conditioning system, forcing the AC to run longer just to wring water out of the air.[3]

Building scientists and Passivhaus practitioners now advocate for a 'moisture gap' approach rather than a simple climate map. The decision must be driven by the home's annual humidity profile and occupancy density. A tight cabin with two occupants often runs dry in winter and needs an ERV's moisture retention. A tight home with a family of six is already saturated internally and requires an HRV's exhaust-dominant moisture removal to protect the drywall.[2]

The ultimate solution for stubborn mixed climates is decoupling the tasks entirely. Some of the highest-performing installations pair an HRV for winter heat recovery and fresh air exchange with a dedicated whole-house dehumidifier on the return plenum to manage the summer latent load independently. While the upfront cost is higher, it ensures the home remains in the 40 to 60 percent relative humidity comfort band year-round, regardless of what the weather is doing outside.[2]
