Why Radiant Foil Requires an Air Space to Block Heat Transfer

In the relentless heat of a July afternoon, a typical asphalt roof deck can easily reach 160 degrees Fahrenheit. To combat this, a homeowner might invest thousands of dollars installing a radiant barrier in their attic, expecting to cut their summer cooling costs by up to 10 percent.[5]

The material itself is remarkably simple: a thin sheet of aluminum foil, often laminated to kraft paper or oriented strand board. Since the technology was inducted into the Space Technology Hall of Fame in 1996, this mirror-like surface has been widely adopted in residential construction to bounce the sun's punishing energy away from the living space below.[5]

But that reflective power comes with a strict physical prerequisite that is frequently misunderstood by amateur installers. The aluminum surface must face an open pocket of air to function. If the shiny foil is sandwiched directly between two solid building materials, its thermal benefits vanish entirely.[1][6]

"If you do not allow for this air space, the radiant barrier acts as a conductor and just passes the heat along from a hot surface to a cooler surface," warn extension engineers at Virginia Tech. Without that gap, the barrier actually accelerates the very problem it was purchased to solve.[1]

The Three Modes of Heat Transfer

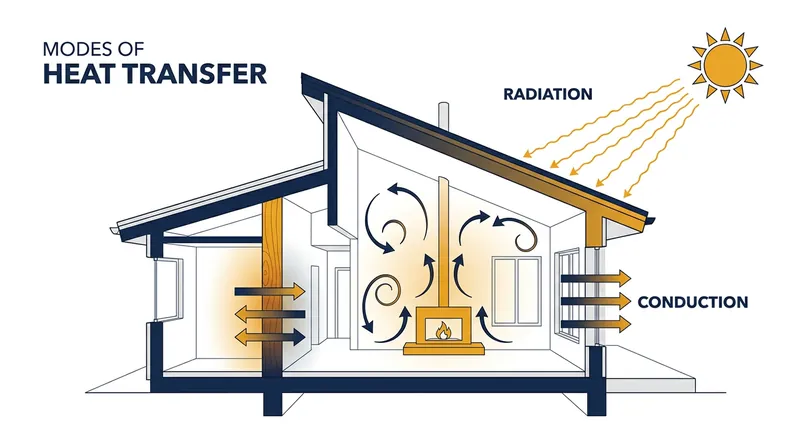

To understand why direct contact destroys a radiant barrier, one must look at how thermal energy moves through a building. Heat transfers from a warmer zone to a cooler one through three distinct mechanisms: conduction, convection, and radiation.[5]

Conduction occurs when heat travels through solid objects that are physically touching, much like a cast-iron skillet warming up on a hot stove. Convection involves the movement of fluids or gases, such as warm air rising to the top of a vaulted ceiling while cooler air sinks.[5]

Radiation, however, requires no physical contact or fluid medium at all. It travels in straight electromagnetic waves across empty space, which is exactly how the sun heats the earth from 93 million miles away. In a residential attic, the hot roof deck radiates infrared energy downward onto the floor insulation.[5]

Traditional mass insulation, such as blown-in cellulose or fiberglass batts, is designed to slow down conductive and convective heat transfer. These materials trap millions of tiny air pockets within their fibers, creating a thick thermal roadblock that resists the flow of temperature changes.[5]

Radiant barriers operate on an entirely different physical principle. They do not absorb or slow down heat; they refuse to absorb it in the first place. Because they target electromagnetic waves rather than conductive flow, they are measured by their surface properties rather than a traditional R-value.[6]

Why Emissivity Matters

The effectiveness of any material in handling radiant heat is defined by two metrics: reflectivity and emissivity. Reflectivity measures how much incoming energy bounces off the surface, while emissivity measures how much of its own internal heat the material radiates outward.[5]

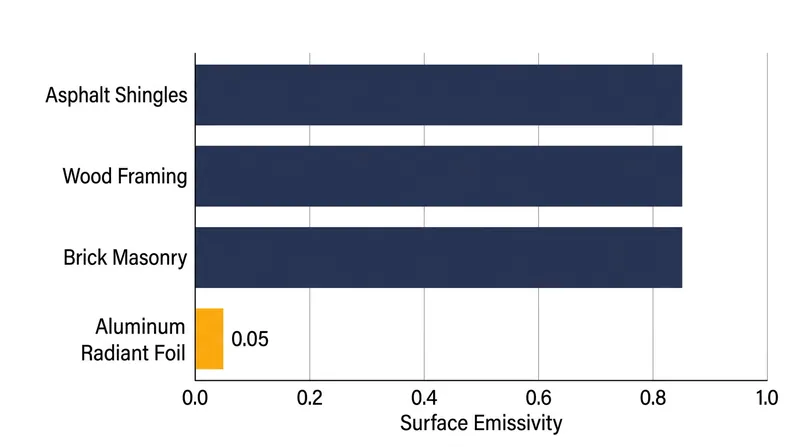

Common building materials like wood framing, masonry, and asphalt shingles are highly emissive. According to the Reflective Insulation Manufacturers Association, these standard materials have surface emittances of approximately 0.85, meaning they readily absorb solar radiation and aggressively emit that heat into the adjacent attic space.[2]

Pure aluminum foil, by contrast, possesses an extraordinarily low emissivity rating. Commercial radiant barriers typically feature an emittance of 0.1 or lower, meaning they emit only 10 percent of the heat energy they hold. Simultaneously, their highly polished surfaces boast a reflectivity of up to 97 percent.[2]

When the 160-degree roof deck tries to blast infrared energy downward, the aluminum foil intercepts the waves. Because the foil cannot easily emit thermal radiation, the heat remains trapped in the roof assembly above, leaving the attic air space significantly cooler than it would be otherwise.[6]

The Conductive Short Circuit

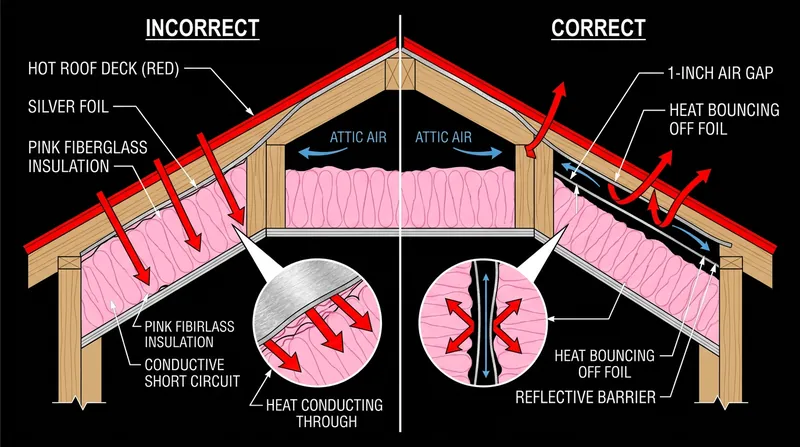

This elegant physics equation collapses the moment the aluminum foil touches another solid object. Radiation only occurs across a void. When two materials make direct physical contact, the primary mode of heat transfer instantly shifts from radiation to conduction.[1][6]

Aluminum is an exceptional conductor of heat—which is precisely why it is used to manufacture cookware and automotive radiators. If a radiant barrier is stapled flat against the attic floor so that it rests directly on top of the fiberglass insulation, the air gap is eliminated.[1]

In this sandwiched configuration, the foil's 97 percent reflectivity and 0.1 emissivity become entirely irrelevant. The hot roof deck heats the foil, and because the foil is touching the fiberglass, it conducts that thermal energy straight into the insulation through direct physical contact.[1][6]

Instead of acting as a shield, the aluminum foil transforms into a highly efficient thermal bridge. The heat bypasses the radiant defense mechanism completely, flowing effortlessly into the living space below and forcing the home's air conditioning system to work harder to maintain a comfortable temperature.[1]

Proper Spacing and Installation

To prevent this conductive short circuit, building scientists mandate a strict physical separation. Manufacturers like LP Building Solutions, which produces foil-laminated roof sheathing, explicitly instruct installers to always leave a minimum 0.75-inch air gap under the radiant barrier surface.[4]

The U.S. Department of Energy recommends an even larger buffer for retrofit applications. When attaching perforated foil rolls to the underside of existing roof rafters, federal guidelines advise leaving a 1.5-inch airspace between the reflective material and the wooden roof deck above it.[3]

This required gap does not necessarily need to be ventilated to stop radiant heat, though airflow provides secondary cooling benefits. A sealed, dead air space is perfectly sufficient to break the conductive chain, forcing the heat to travel via radiation, where the foil can successfully block it.[3][6]

The orientation of the foil also matters, though less than the gap itself. While double-sided foil products exist, a single-sided barrier works equally well whether the shiny side faces the heat source or faces away from it, provided the reflective surface is the side bordering the empty air cavity.[1]

The Moisture Trap Risk

Beyond the thermal failure caused by direct contact, improper installation introduces severe structural risks. Laying a solid sheet of aluminum foil directly over attic floor insulation creates an impermeable vapor barrier on the cold side of the ceiling assembly.[3]

During the winter months, warm, moist air from the home's interior naturally rises through the drywall and into the attic. If it hits a solid sheet of cold aluminum foil resting on the insulation, that moisture will rapidly condense into liquid water.[3]

"Your contractor should not install a radiant barrier in contact with attic floor insulation," the Department of Energy warns in its technical guidance. "Moisture will be trapped under the barrier, creating a risk of mold and wood rot."[3]

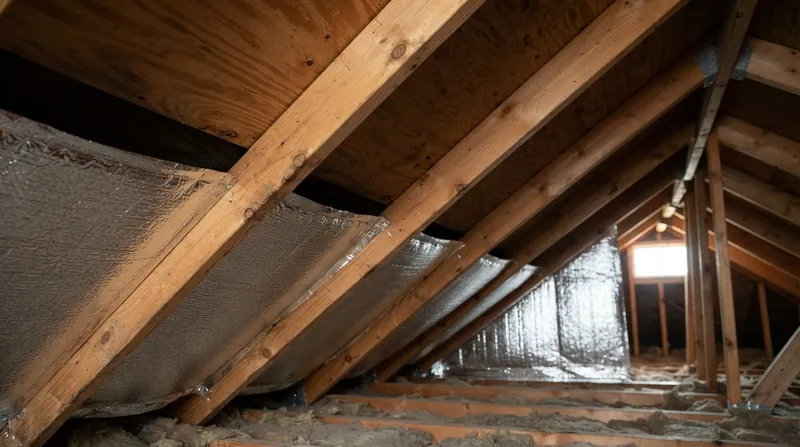

To mitigate this risk, retrofit foil rolls are heavily perforated with tiny holes, allowing water vapor to pass through harmlessly. However, even perforated products will fail thermally if they are allowed to touch the insulation, reinforcing the absolute necessity of the air gap.[3][4]

Ultimately, a radiant barrier is a highly effective tool for reducing cooling loads in sun-drenched climates. But its success relies entirely on respecting the physics of heat transfer. Without the empty space required to let radiation occur, the foil is nothing more than an expensive thermal conductor.[6]
