Return Water Temperatures Above 54°C Prevent Condensing Boilers From Capturing Latent Heat

A condensing boiler only achieves its advertised 94% efficiency if the water returning from the radiators is cooler than 54°C. Above this exact thermal threshold, the water vapor in the exhaust gases remains a gas, meaning the boiler vents its latent heat outside and operates no better than a decades-old conventional unit.

This physical threshold, known as the flue gas dew point, dictates whether a modern heating system saves fuel or wastes it. Millions of homes have condensing boilers installed on legacy pipework that returns water at 60°C or hotter.

Because the returning water is too hot to trigger condensation on the heat exchanger, these households pay for high-efficiency hardware but receive standard-efficiency performance. The boiler simply burns more gas to make up for the heat escaping through the flue.

The physics of latent heat recovery

To understand the 54°C threshold, one must look at how natural gas burns. The combustion process creates carbon dioxide and a significant amount of water vapor, which absorbs roughly 10% to 14% of the total energy generated by the flame.

In a traditional, non-condensing boiler, this vapor is treated as a waste product. The hot gases are expelled straight out of the flue at temperatures exceeding 120°C, carrying that vaporized energy—known as latent heat—into the atmosphere.[1]

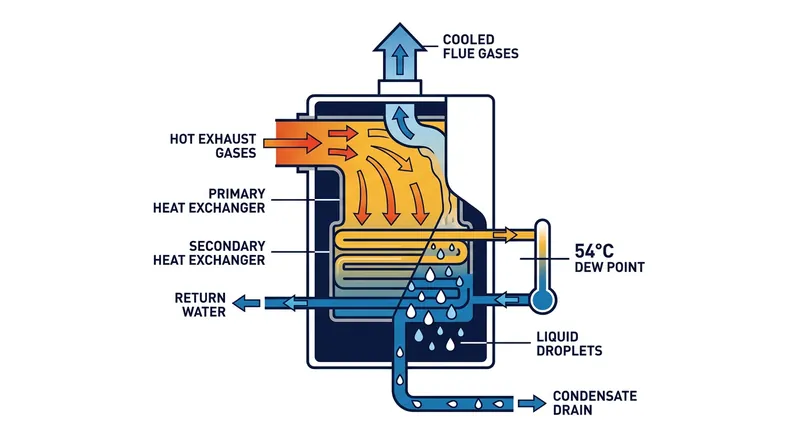

Condensing boilers were designed to capture that escaping energy. They feature a secondary heat exchanger, or an oversized primary one, that routes the hot exhaust gases past the cooler water returning from the building's heating circuit.

When the exhaust gases hit a surface cooler than their dew point, the water vapor undergoes a phase change, condensing back into a liquid. This physical transformation releases the trapped latent heat directly into the returning water, pre-heating it before it reaches the main burner.

"The design of a condensing boiler enables a lot of this latent heat to be recovered by condensing the steam in the flue gases back to water," notes engineering resource Boiler Fault Finder. "But this can only be achieved by getting the return water temperature down to 54°C."

The legacy temperature problem

The engineering theory is sound, but it collides with decades of established plumbing practices. Historically, heating systems were designed around a high-temperature differential, sending water to radiators at 80°C and receiving it back at 60°C.

If a modern condensing boiler is simply swapped into one of these legacy circuits without adjusting the flow settings, the return water will consistently arrive at 60°C. That is six degrees too warm to trigger condensation on the heat exchanger.

"Run a condensing boiler at 70°C or 80°C flow and it behaves like a standard, non-condensing boiler, wasting the technology you paid for," explains the technical team at Heat Geek. The exhaust gases pass through the secondary heat exchanger without cooling enough to condense.

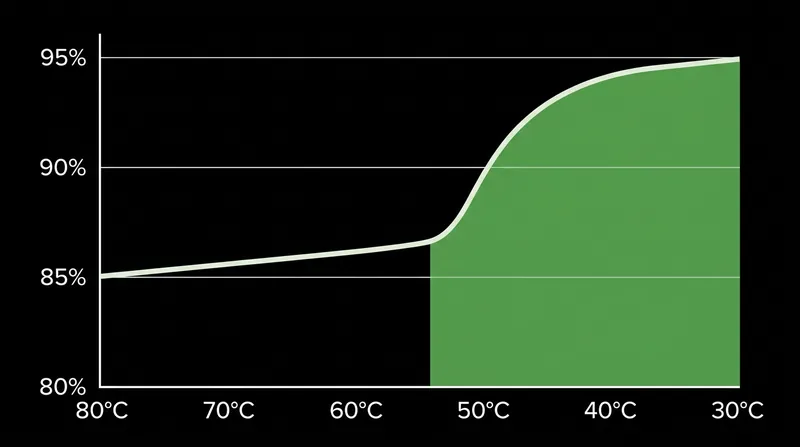

Without that phase change, the boiler's thermal efficiency drops precipitously. Instead of operating at the 92% to 94% efficiency printed on the box, the unit reverts to a baseline efficiency of around 80%, burning significantly more fuel to deliver the same amount of warmth to the rooms.

Bridging the efficiency gap

Reclaiming that lost efficiency requires lowering the temperature of the water circulating through the radiators. By turning the boiler's flow temperature dial down to 60°C, the water returning from the circuit will typically drop to around 40°C.

At 40°C, the return water is well below the 54°C dew point, ensuring that the exhaust gases condense continuously. The boiler extracts the maximum amount of latent heat, pushing its operational efficiency into the mid-90s and reducing gas consumption by up to 14%.[2]

Operating at these lower temperatures changes how the heating system feels. The radiators will no longer be scorching hot to the touch; instead, they will emit a gentler, more consistent warmth over a longer period to maintain the desired room temperature.

"In fact, there is a direct correlation between increasing condensation of the flue gas and boiler efficiency gains," writes Catie VanWormer in the ASHRAE Journal. "So the goal should be to reduce the water temperature returning to the boiler to condense the flue gas as much as possible."[1]

System sizing and radiator output

Lowering the flow temperature introduces a secondary challenge: heat emitter capacity. A radiator sized to heat a room using 80°C water will output substantially less thermal energy when fed with 60°C water.

In poorly insulated homes, this reduced output might not be enough to offset the building's heat loss on the coldest days of the year. The boiler will condense beautifully, but the living spaces may struggle to reach a comfortable 21°C.

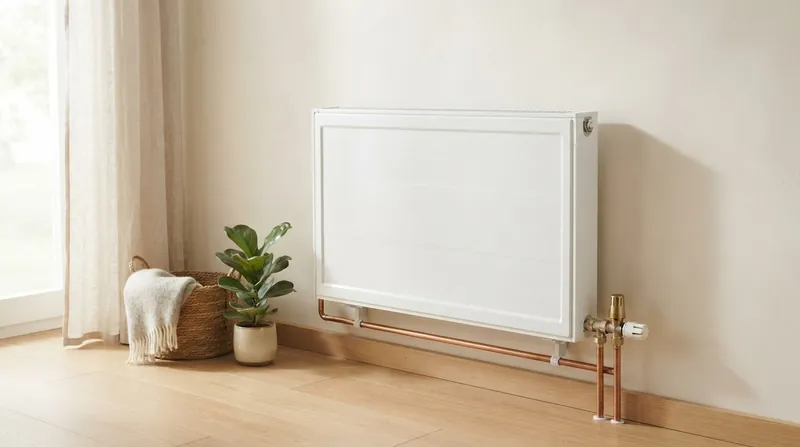

To compensate, homeowners often need to upgrade to larger radiators or improve the building's insulation. Alternatively, underfloor heating systems are naturally suited to condensing boilers because they operate at very low flow temperatures, guaranteeing that the return water remains deep in the condensing zone.

Automating the temperature controls

Manually adjusting the boiler's flow dial as the seasons change is tedious and imprecise. To maintain optimal efficiency year-round, heating engineers recommend installing weather compensation controls, which automate the flow temperature based on an external sensor.

When the outside air is mild, the compensator drops the flow temperature to perhaps 45°C, ensuring massive latent heat recovery. If a winter freeze hits, the sensor automatically raises the flow temperature to 70°C, stepping out of condensing mode only for the few days it is strictly necessary.

By dynamically matching the water temperature to the exact heat loss of the building, weather compensation ensures the return water stays below 54°C for the vast majority of the heating season, locking in the fuel savings the condensing boiler was built to provide.[1]

The financial and environmental stakes

The financial penalty of ignoring the 54°C threshold compounds over the 15-year lifespan of a typical boiler. A property consuming £1,200 annually in heating costs with non-condensing operation could reduce that expenditure to under £1,000 simply by lowering the flow temperature.

Across millions of households, the aggregate waste is staggering. Regulatory bodies mandated condensing boilers to cut national carbon emissions, but those environmental targets assume the hardware is actually condensing.[2]

When installers leave new boilers set to factory defaults of 75°C, they inadvertently lock the system into a high-carbon, low-efficiency operating profile. The plastic condensate pipe remains dry, and the latent heat is vented to the sky.

Correcting this requires a shift in commissioning practices. Heating engineers must balance the system, adjust the flow rates, and verify the return temperatures, ensuring the 54°C dew point is respected and the boiler's full potential is finally unlocked.[1]
