Evaporator Coils Run 5°C Below Ambient Air: Why Heat Pumps Frost Heaviest at 2°C to 5°C

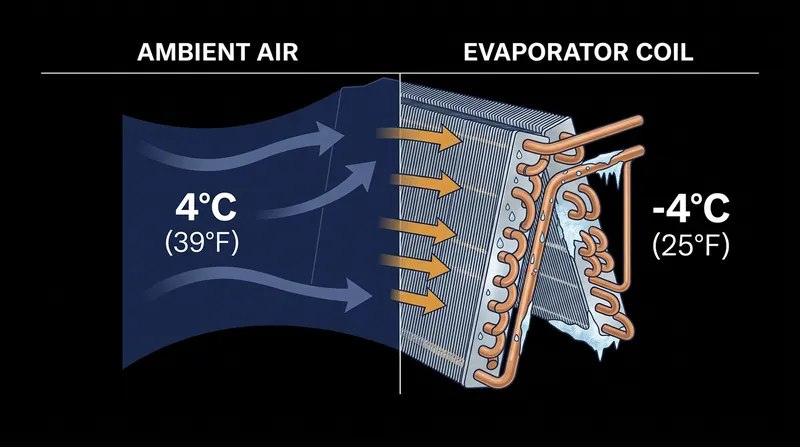

When the outdoor thermometer reads a brisk 4°C, a residential heat pump is quietly running its internal hardware at a frigid -4°C. Homeowners stepping outside on a mild autumn morning are often alarmed to find their outdoor unit encased in a layer of white frost. To the untrained eye, a machine covered in ice while the yard remains completely thawed looks like a catastrophic mechanical failure.

In reality, this is exactly how the system is designed to operate. To pull thermal energy out of the ambient air and move it indoors, the laws of thermodynamics require the heat pump's evaporator coil to be significantly colder than the air it is harvesting heat from. Heat always flows from a warmer space to a colder one, making that temperature gap the engine of the entire process.

According to a 2026 analysis published in the journal MDPI, an air-source heat pump's outdoor coil typically operates 5°C to 10°C below the ambient air temperature. This operational differential creates a specific vulnerability zone. When the outdoor air is a mild 4°C, the coil surface is forced well below the 0°C freezing point to maintain the necessary heat transfer rate.[1]

At 4°C, the atmosphere can still hold a substantial amount of water vapor. As the heat pump's fan pulls this cool, moist air across the sub-freezing copper and aluminum fins of the outdoor unit, the moisture rapidly condenses onto the metal. Because the coil is operating below freezing, that condensation instantly turns to ice, coating the unit in frost.

Since the coil surface is typically 5°C to 10°C below ambient air temperature, frosting begins when the outdoor temperature falls below approximately 5.5°C, the MDPI researchers note. If the relative humidity exceeds 60 percent, this frost accumulates quickly, creating an insulating layer that forces the compressor to work harder to extract heat.[1]

The Deep Freeze Paradox

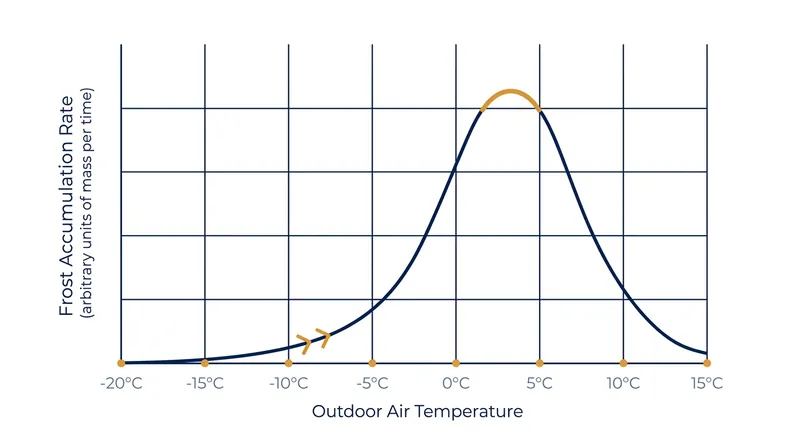

Homeowners often wonder why their heat pump looks like a solid block of ice at 3°C, but remains perfectly clear during a -15°C deep freeze in the dead of winter. The answer lies in the physics of absolute humidity. Cold air physically cannot hold as much water vapor as warm air, drastically changing how moisture interacts with the equipment.

At -15°C, the outdoor air is extremely dry in absolute terms, even if the local weather report indicates a high relative humidity. When this bone-dry air passes over an evaporator coil that is running at a bitter -22°C, there is simply no moisture available in the airstream to condense onto the metal fins.

Without airborne moisture, frost cannot form. The heat pump continues to extract the latent thermal energy from the sub-zero air, but the physical accumulation of ice slows to a crawl. This creates the counterintuitive reality that heat pumps face their heaviest frosting challenges during mild, damp weather rather than during severe winter storms.

A heat pump in 2°C humid weather may defrost every 30 to 45 minutes, explains a 2026 technical bulletin from HVAC Load Calc. The same heat pump in -9°C dry weather may defrost every 90 to 120 minutes or skip defrost entirely. The absolute humidity dictates the maintenance burden on the machine.[2]

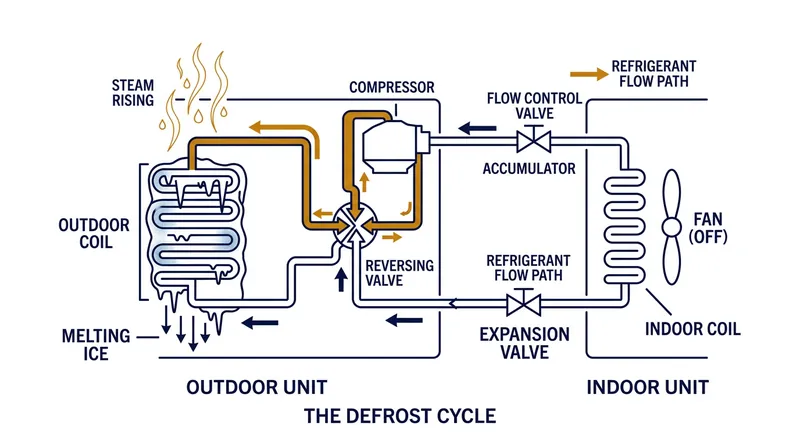

How the Defrost Cycle Works

To manage the heavy ice buildup in that critical 2°C to 5°C zone, modern heat pumps rely on an automated defrost cycle. Sensors mounted directly on the outdoor coil continuously monitor the surface temperature and the compressor's run time to detect when the frost layer has grown thick enough to impede airflow.[3]

When the system determines that a defrost is necessary, it temporarily reverses its operation. A mechanical reversing valve inside the unit shifts, turning the outdoor coil into a condenser. Instead of pulling heat from the outside, the system briefly takes heat from the home and pumps it outdoors.

Hot refrigerant vapor from the compressor, often reaching temperatures of 90°C, is pumped directly into the frosted outdoor unit. Simultaneously, the outdoor fan stops spinning. This traps the intense heat inside the cabinet, rapidly melting the accumulated ice off the aluminum fins and copper tubing.

This sudden influx of thermal energy vaporizes the melting ice. Homeowners often see a dramatic plume of steam rising from the top of the unit, accompanied by a loud mechanical sound as the reversing valve shifts. While it can look like the machine is smoking or catching fire, this steam is a normal sign of a successful cycle.

During this 5-to-15-minute defrost cycle, the indoor unit is technically operating in air conditioning mode, blowing cold air into the ductwork. To prevent a freezing draft from chilling the home, the system automatically activates auxiliary electric resistance heating strips located inside the indoor air handler.

These backup heaters warm the air before it reaches the vents, maintaining the indoor temperature while the outdoor unit clears its ice. Once the outdoor coil sensors detect that the temperature has risen enough to ensure all frost is melted, the reversing valve shifts back, and normal heating resumes.

When Ice Indicates a Problem

While a light, even coating of white frost is a normal byproduct of the temperature differential, a solid block of clear ice that encases the entire unit is a sign of mechanical failure. Normal frost should melt away completely during the automated cycle, leaving the fins clear and wet.

If a system is low on refrigerant due to a leak, the internal pressure drops, causing the evaporator coil to run much colder than the standard 5°C to 10°C differential. This excessive cold accelerates icing far beyond what the standard defrost cycle is programmed to handle, leading to permanent buildup.

Similarly, if the outdoor fan motor fails or the coil is choked with autumn leaves and debris, the heat pump cannot pull enough ambient air across the fins. Without that constant flow of relatively warm air, the coil temperature plummets, and ice rapidly accumulates across the entire cabinet.

A failure of the defrost control board or a stuck reversing valve will also cause severe icing. If the system cannot initiate the melting cycle, the frost will continue to build until it crushes the delicate aluminum fins or damages the compressor, requiring an expensive professional repair.

Homeowners should monitor the frequency and duration of these cycles. If the heat pump is defrosting every 15 minutes, or if a single cycle stretches beyond 20 minutes without clearing the ice, the system requires diagnostic testing. A properly functioning unit should handle its own ice management seamlessly.

Proper installation also plays a crucial role in ice management. Heat pumps must be elevated on riser pads or snow legs to ensure that the water melting off the coils during a defrost cycle has room to drain away. If the unit sits flat on the ground, the meltwater simply pools around the base and refreezes.

Over time, this refrozen meltwater can build up from the ground, eventually encasing the bottom of the coil in solid ice. By keeping the unit elevated and ensuring the drainage path remains clear of snowdrifts and debris, homeowners can prevent this secondary icing and allow the defrost cycle to work as engineered.

Ultimately, seeing frost on a heat pump during a chilly, damp morning is a sign of physics working exactly as intended. The machine is successfully mining thermal energy from the outdoor air, leaving only frozen moisture behind as proof of its efficiency.
