How Counterflow Heat Exchangers Recover 90 Percent of Exhaust Energy

A standard residential furnace burns roughly 60,000 British Thermal Units per hour to keep a house warm in winter, which is the energy equivalent of running seventeen microwave ovens simultaneously. When a bathroom fan or range hood blows that heated air outside, the homeowner pays to replace it from scratch.

Modern building codes require homes to be tightly sealed to prevent drafts, which inadvertently traps indoor pollutants, moisture, and carbon dioxide. The American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) mandates a minimum of 0.35 air changes per hour to maintain safe indoor air quality for human health.

Meeting that ventilation standard by simply opening a window during a freezing January night destroys a home's energy efficiency. The mechanical solution is a Heat Recovery Ventilator (HRV), a device that uses the outgoing stale air to warm the incoming fresh air before it reaches the living space.

The core of an HRV is a heat exchanger, a block of alternating channels separated by thin membranes. The efficiency of that thermal transfer—how much of the furnace's heat is saved—depends entirely on the geometric direction the two airstreams travel relative to one another.

The Limits of Parallel Flow

If the hot exhaust air and the cold fresh air enter the exchanger from the same side and flow in the same direction, they form a parallel-flow arrangement. As they travel down the channels, heat moves through the membrane from the warm side to the cold side.[1]

However, parallel flow has a hard mathematical ceiling. As the hot air cools and the cold air warms, their temperatures approach each other, rapidly reducing the thermal driving force required to move heat across the physical barrier.[1]

"The geometry of the core dictates the thermodynamic ceiling," notes a 2025 analysis in the International Journal of Heat and Mass Transfer. "In a parallel system, the two fluids can only ever equalize at the exact midpoint between their starting temperatures."[1]

This means a parallel-flow exchanger can never recover more than 50 percent of the exhaust energy. If 70-degree indoor air meets 30-degree outdoor air, the absolute best a parallel core can deliver to the house is 50-degree air, leaving the furnace to make up the 20-degree difference.[1][2]

The Counterflow Breakthrough

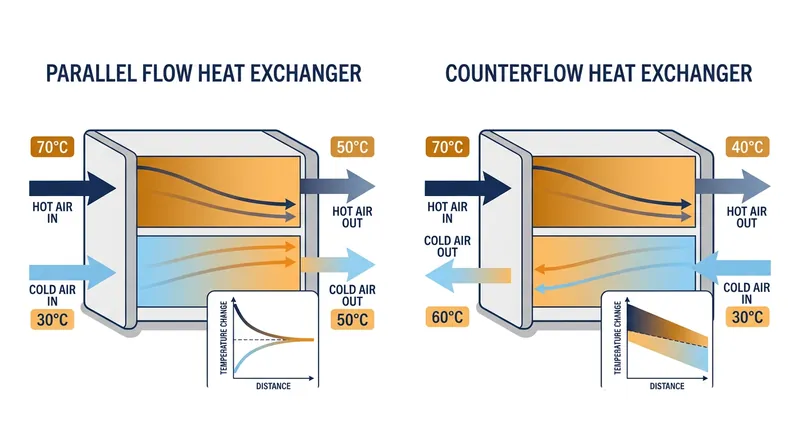

Engineers solved this limitation by reversing the intake. In a counterflow heat exchanger, the hot exhaust air enters from one end while the cold fresh air enters from the exact opposite end, flowing against each other separated by the membrane.

This arrangement maintains a continuous temperature gradient along the entire length of the channel. The cold outdoor air entering the unit is warmed by exhaust air that has already given up most of its heat, but is still slightly warmer than the freezing intake.[2]

As the fresh air travels further into the core, it encounters progressively warmer exhaust air. By the time the fresh air reaches the end of the channel, it is absorbing heat from the 70-degree exhaust air that has just entered the unit directly from the house.

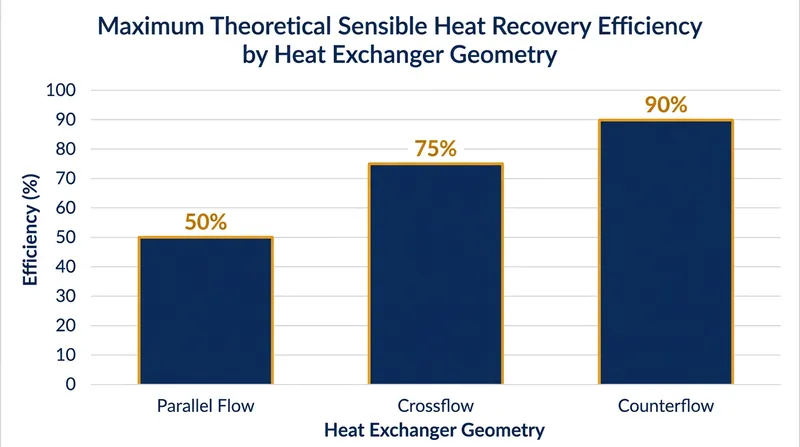

Because the fresh air is always exposed to exhaust air that is slightly warmer than itself, it can bypass the 50 percent equalization limit. A high-quality counterflow core can push the incoming 30-degree air up to 66 degrees before it enters the ductwork.[2]

Material Science in the Core

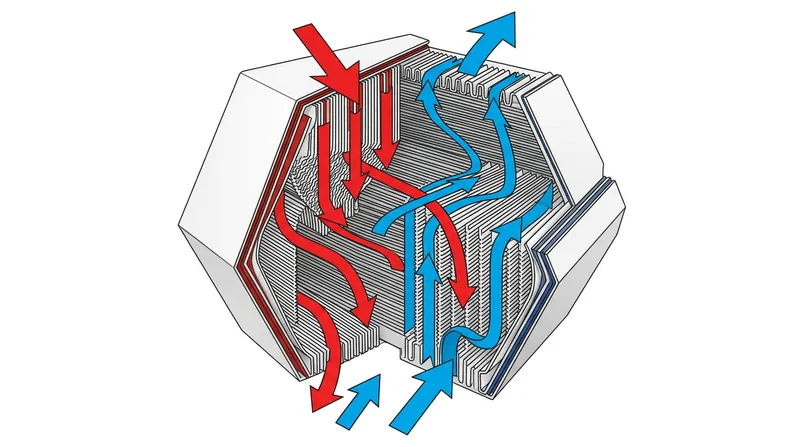

Achieving that 90 percent recovery rate requires maximizing the surface area between the two airstreams without increasing the physical footprint of the appliance. Manufacturers achieve this by stacking hundreds of microscopic channels into a hexagonal or diamond-shaped block.

The membranes separating these channels are typically just 1/16th of an inch thick, extruded from specialized polymers or corrugated aluminum. The thinness minimizes thermal resistance, allowing heat to conduct instantly across the barrier while keeping the airstreams physically isolated.

This physical isolation is critical for indoor air quality. While thermal energy transfers freely across the plates, the stale air, volatile organic compounds, and bathroom odors remain trapped in their own channels and are exhausted completely to the exterior.

In climates with high humidity, manufacturers use a permeable resin membrane instead of aluminum, creating an Energy Recovery Ventilator (ERV). This allows water vapor to transfer alongside the heat, preventing the home from becoming uncomfortably dry during the winter months.

Real-World Installation

For a homeowner, upgrading to a counterflow HRV transforms the economics of fresh air. A unit moving 150 cubic feet of air per minute can completely replace the air in a 2,000-square-foot house every three hours while recovering nearly all the thermal energy.[2]

The fans driving this process consume roughly 40 to 80 watts of electricity, similar to a standard incandescent light bulb. In return, the system saves thousands of BTUs per hour that the primary furnace or heat pump would otherwise have to generate.

"Counterflow is the only arrangement where the cold fluid can exit at a higher temperature than the hot fluid's exit," the 2025 thermal analysis confirms. This physical reality is what allows modern passive houses to maintain perfect indoor air quality with virtually zero heating demand.[1]

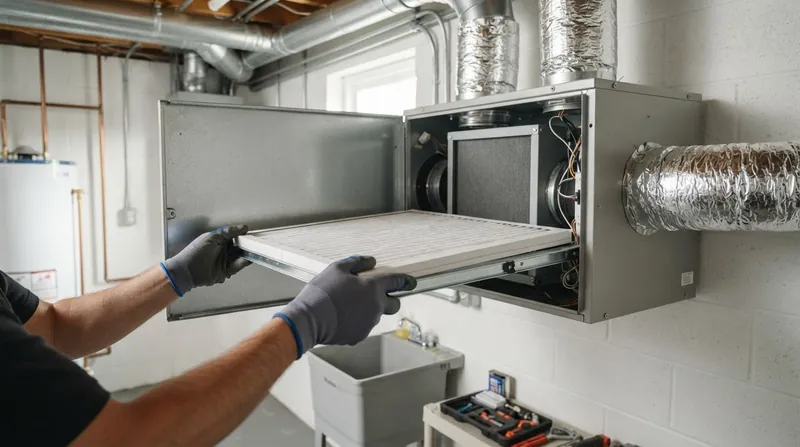

The primary maintenance requirement for these systems is protecting the delicate core from debris. Homeowners must replace the unit's pre-filters every three to six months to prevent dust and pollen from clogging the microscopic counterflow channels.

In extreme northern climates where outdoor temperatures drop below zero, the exhaust moisture can freeze inside the narrow channels. Advanced counterflow units include a defrost cycle that temporarily restricts the cold intake, allowing the warm indoor air to melt any accumulated frost.

Ultimately, the shift from crossflow and parallel designs to counterflow geometry represents a quiet triumph of applied physics. By simply routing air in opposite directions, engineers have decoupled the health benefits of fresh ventilation from the financial penalty of heating it.[2]
