How Hydraulic Gradient Reversals Trap Sub-Slab Moisture Under Air-Conditioned Floors

Flooring contractors typically blame failed adhesives and cupped planks on a poorly mixed concrete pour that retained too much initial water. Conversely, HVAC engineers argue that the building's sub-slab vapor barrier was either punctured during construction or specified incorrectly for the soil type.[1]

The actual mechanism destroying the floor often has nothing to do with the concrete mix or a torn plastic sheet. When aggressive interior air conditioning drastically chills a concrete slab, it fundamentally alters the pressure dynamics between the earth and the building.[2][3]

This temperature plunge triggers what building scientists call a hydraulic gradient reversal. The cold interior creates a massive pressure vacuum that pulls warm ground moisture upward with a force that standard vapor retarders simply cannot throttle.

As the air conditioning outpaces the slab's ability to dry, water vapor condenses into liquid directly beneath impermeable floor coverings. The resulting trapped moisture dissolves adhesives, warps timber, and breeds mold in buildings that otherwise appear perfectly sealed.[1]

The mechanics of vapor drive

Water vapor always moves from areas of high pressure and high temperature toward areas of lower pressure and lower temperature. In a natural state, a warm building in a cold climate pushes moisture outward into the freezing air.[2]

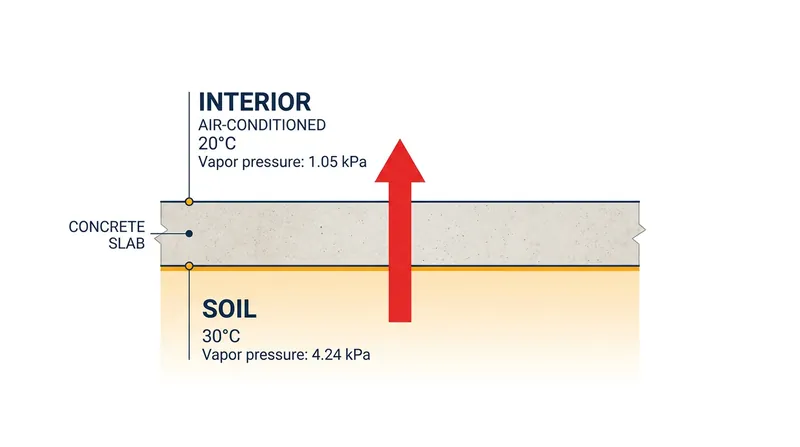

Summer air conditioning flips this dynamic entirely. The soil beneath a commercial or residential building remains warm and heavily saturated, generating a steady vapor pressure of approximately 4.24 kilopascals at 30 degrees Celsius.[2][3]

Meanwhile, the conditioned interior operates at a crisp 20 degrees Celsius and 45 percent relative humidity. This drops the indoor vapor pressure to just 1.05 kilopascals, creating a steep 3.19 kilopascal differential across the concrete slab.[3]

"The only practical means of vapor control is to control the temperature of the condensing surface... which is cold because of the air-conditioned space above it," notes Building Science Corporation. This 3.19 kilopascal inward vapor drive is relentless, operating 24 hours a day.[1][3]

When retarders cannot keep up

To stop this upward migration, modern construction codes require a Class 1 vapor retarder—typically a 10-mil polyethylene sheet—installed directly beneath the concrete. This membrane is designed to throttle the moisture flow to a manageable trickle.

However, a vapor retarder is not an absolute barrier; it merely slows the diffusion rate to roughly 0.03 perms. Under normal conditions, the small amount of moisture that penetrates the plastic can easily evaporate through the slab and into the room.[2]

The system fails when the hydraulic gradient reversal accelerates the upward drive beyond the membrane's throttling capacity. If the air conditioning cools the slab below the soil's dew point, the moisture condenses into liquid water before it can evaporate.[1]

The problem is compounded by the reality of construction sites, where heavy machinery and rebar placement inevitably create microscopic punctures in the polyethylene sheet. A single puncture under a 3.19 kilopascal pressure differential acts as a high-speed moisture funnel.[3]

Trapping liquid under impermeable finishes

If the concrete slab were left bare, the accelerated moisture might still evaporate into the conditioned air, albeit while forcing the HVAC system to work harder to dehumidify the space. The catastrophic failure occurs when the slab is covered.[2]

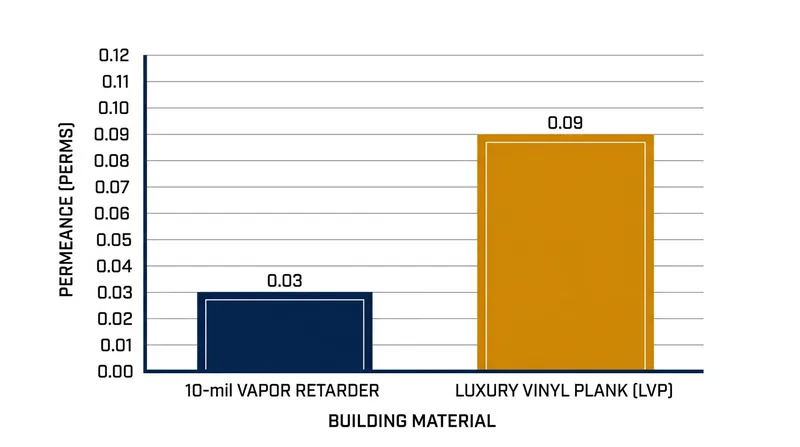

Modern commercial and residential designs heavily favor impermeable floor coverings, such as luxury vinyl plank, epoxy coatings, or polyurethane-backed carpets. These synthetic materials boast a permeance of less than 0.1 perms, effectively capping the porous concrete.[1]

When the upward vapor drive hits this impermeable cap, it has nowhere to go. The moisture pools at the interface between the cold concrete and the floor covering, accumulating as liquid water over weeks of continuous air conditioning.

This trapped water systematically destroys the installation from the bottom up. It re-emulsifies water-based flooring adhesives, causing vinyl tiles to lift and shift under foot traffic, while creating an ideal dark, damp environment for microbial growth.

Breaking the condensation cycle

Resolving this moisture trap requires breaking the thermal gradient before it reaches the slab surface. One highly effective approach in cooling-dominated climates is placing rigid extruded polystyrene insulation beneath the concrete, directly over the vapor retarder.[1]

The rigid insulation prevents the interior air conditioning from chilling the earth below the slab. By keeping the concrete closer to the indoor temperature and keeping the saturated soil isolated, the vapor pressure differential drops significantly.[2][3]

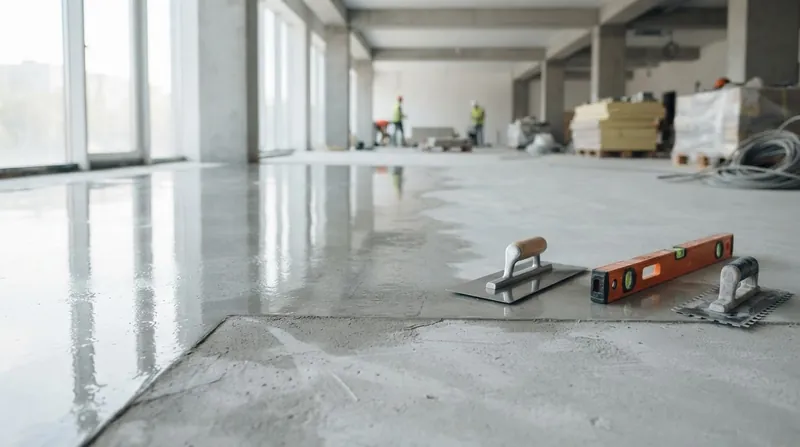

Alternatively, contractors can apply a topical, moisture-mitigating epoxy directly to the cured concrete before installing the final floor covering. These specialized coatings penetrate the concrete pores and cure into a monolithic cap that withstands up to 100 percent relative humidity.

Finally, mechanical engineers must balance cooling loads with dedicated dehumidification. Over-cooling a space to remove humidity only chills the slab further, exacerbating the hydraulic gradient reversal and pulling even more moisture into the building envelope.[2]

Residual moisture complications

The hydraulic gradient reversal also weaponizes the concrete's own residual moisture against the flooring. A standard 100-millimeter slab requires months to fully cure, retaining a significant volume of the water used in the initial chemical mix.

When aggressive air conditioning is turned on too early in a fast-track construction schedule, it disrupts this natural drying. "The moisture within the concrete needs to naturally evaporate... by rising to the surface," explains Wagner Meters.

As the slab temperature equalizes, the trapped residual water is pulled back upward by the low indoor vapor pressure. This internal moisture combines with the ground vapor drive, overwhelming the flooring adhesive twice as fast.[1][3]

Industry standards now mandate rigorous relative humidity testing using in-situ probes before any impermeable flooring is laid. If the internal slab humidity exceeds 85 percent, the installation must be delayed or an epoxy mitigation system applied.
