Asymmetrical Pane Thicknesses Stagger Acoustic Coincidence Dips to Block Resonant Traffic Noise

Upgrading a home with standard double-glazed windows often leaves occupants frustrated when the low-frequency rumble of a passing bus still penetrates the bedroom. While two panes of glass trap heat effectively, they do not automatically block urban noise. The failure lies in a physics phenomenon where identical sheets of glass amplify specific sound waves instead of stopping them.[4][5]

Sound travels through the air as pressure waves, striking the exterior of a building and attempting to bend the materials it hits. When acoustic energy hits a pane of glass, the glass absorbs some of the impact but transmits the rest to the air on the opposite side. The amount of energy transferred depends heavily on the mass and stiffness of the barrier.[2][5]

Every solid material has a natural tendency to resonate, creating a bending wave that ripples across its surface. When the wavelength of the airborne sound perfectly matches the wavelength of this free bending wave, the material stops resisting the acoustic energy. This alignment is known as the coincidence effect, and it creates a massive vulnerability in the window's acoustic armor.[2]

"Coincidence is the phenomenon of resonant transmission of acoustic energy through a barrier," explains Nyquista Acoustics in their engineering documentation. "At the point of coincidence, the acoustic impedance of the barrier drops sharply, resulting in a significant decrease in acoustic insulation."[2]

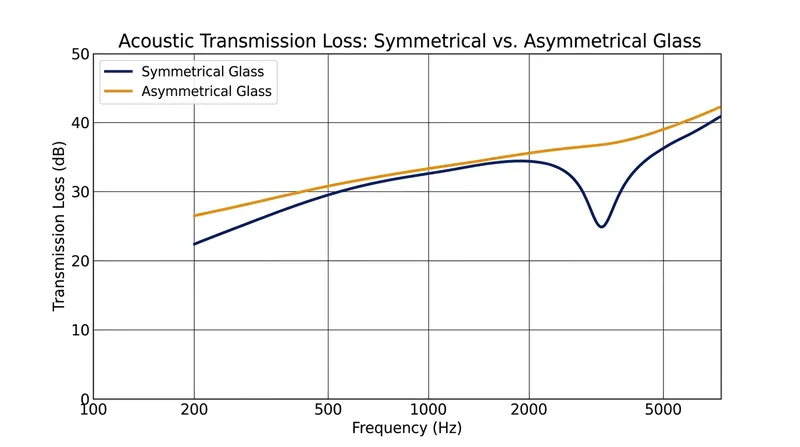

The pane vibrates in unison with the sound wave, allowing the noise to pass through to the interior almost losslessly. On an acoustic test graph, this failure appears as a steep plunge in sound transmission loss, universally referred to as the coincidence dip.[1][2]

The Flaw in Symmetrical Glazing

The frequency at which the coincidence dip occurs is inversely proportional to the thickness of the glass. A standard four-millimetre float glass pane experiences its coincidence dip at approximately 3,125 hertz. A thicker, 12-millimetre pane shifts that critical frequency down to around 1,040 hertz, according to acoustic data from Miglas.[1]

Most standard double-glazed units are manufactured symmetrically, pairing two identical four-millimetre panes separated by an argon-filled cavity. Because both panes share the exact same mass and stiffness, they share the exact same critical frequency. When a 3,125-hertz sound wave strikes the window, both panes resonate in perfect unison.[1][4]

This synchronized vibration allows the specific frequency to pass right through the entire insulated glass unit as if the second pane did not exist. The resulting drop in acoustic insulation can be as severe as 10 to 15 decibels compared to what the mass law of acoustics would predict. For the homeowner, this means certain shrill noises or sirens cut through the closed window with startling clarity.[2][4]

Staggering the Critical Frequencies

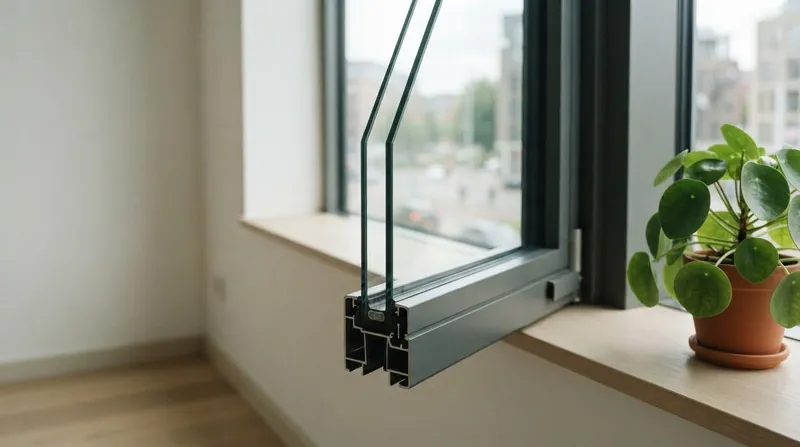

In 2026, acoustic engineers solve this resonance failure by specifying asymmetrical double glazing. By pairing two panes of different thicknesses—such as a six-millimetre exterior lite and a four-millimetre interior lite—the window assembly breaks the synchronization. Each pane now possesses a distinct mass and a different critical frequency.[3][4]

When a high-frequency sound wave hits the asymmetrical unit and triggers the coincidence dip of the four-millimetre pane, the six-millimetre pane remains rigid and blocks the transmission. Conversely, when a lower-frequency wave resonates with the thicker pane, the thinner pane acts as the barrier. The staggered dips ensure that no single frequency can exploit a clear path through the entire assembly.[3]

This simple variation in mass forces the sound waves to break apart, significantly smoothing out the acoustic performance curve across the audible spectrum. Moving from a symmetrical unit to an asymmetrical configuration consistently outperforms adding raw mass alone. It is a targeted mechanical solution to a specific physics problem.[3][4]

The Role of Laminated Damping

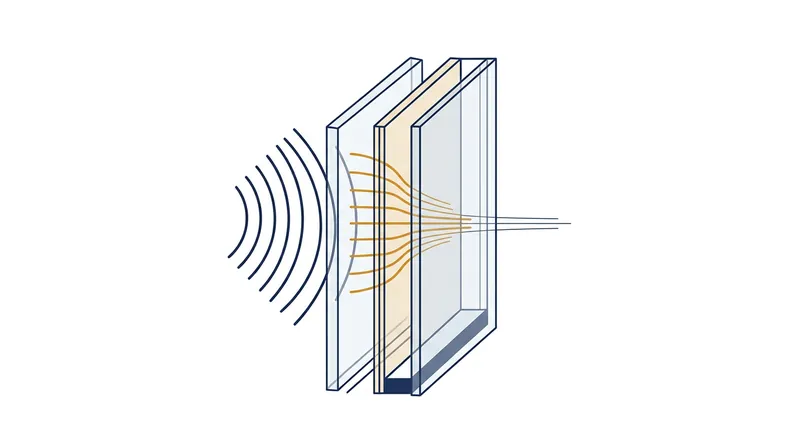

While asymmetrical thickness prevents resonant alignment, it does not entirely eliminate the coincidence effect within the individual panes. To further flatten the acoustic dip, manufacturers introduce laminated glass into the asymmetrical build. Laminated acoustic glass consists of two thinner sheets bonded together by a specialized plastic core, typically polyvinyl butyral (PVB).[3][4]

The PVB interlayer acts as an acoustic shock absorber, providing constrained-layer damping that dissipates the vibrational energy before it can radiate inward. When the exterior glass attempts to bend and resonate, the soft core restricts the movement. This damping effect is particularly crucial for mitigating the mid-range frequencies where human speech and traffic noise are most concentrated.[3]

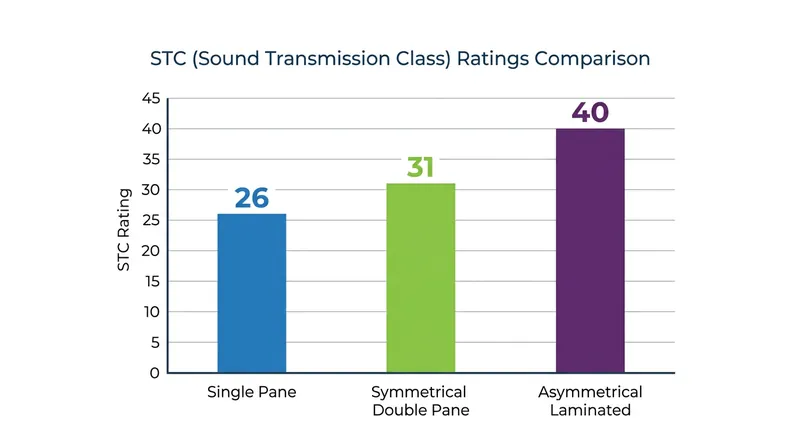

Replacing a solid six-millimetre pane with a 6.5-millimetre laminated pane—while keeping the four-millimetre inner lite—creates a highly effective acoustic barrier. The combination of staggered mass and viscoelastic damping pushes the window's Sound Transmission Class (STC) rating significantly higher. A standard symmetrical window might score an STC of 28, while an asymmetrical laminated unit can reach STC 38 to 42.[3][4]

Managing the Air Cavity Spring

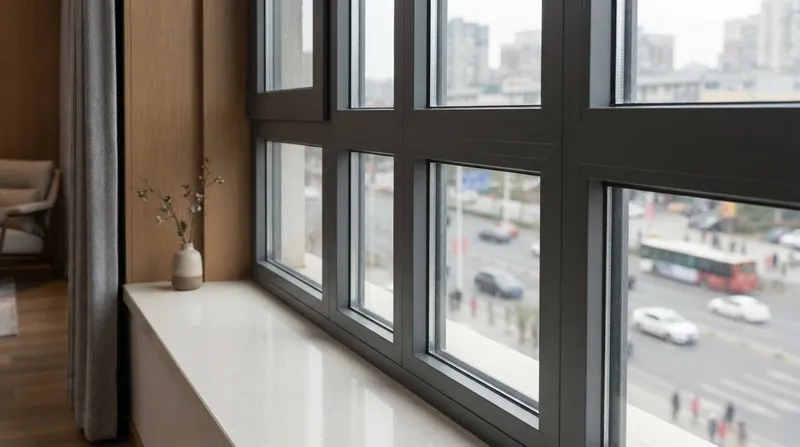

The gap between the two panes also dictates how sound transfers through the window, acting as a pneumatic spring that couples the two lites together. If the cavity is too narrow, the trapped air or argon gas is stiff, easily transferring low-frequency vibrations from the outer glass to the inner glass. This mass-air-mass resonance can actually make a narrow double-glazed unit perform worse than a single pane at certain low frequencies.[5]

Widening the cavity softens the pneumatic spring, giving the sound waves more distance to lose energy before striking the interior pane. For optimal thermal performance, cavities are typically kept between 16 and 20 millimetres. Acoustically, expanding this gap improves the attenuation of the low-frequency rumbles produced by heavy truck engines and aircraft.[5]

However, increasing the cavity width yields diminishing returns once it exceeds 28 millimetres, as the gap begins to behave like a connected air column. The most effective acoustic windows balance a 16- to 20-millimetre argon gap with the staggered mass of asymmetrical panes. This combination addresses both the low-frequency coupling and the high-frequency coincidence dips.[4][5]

Measuring the Decibel Drop

The human perception of volume is logarithmic, meaning small numerical changes in decibel reduction translate to massive differences in lived comfort. A standard symmetrical double-glazed unit typically reduces sound transmission by roughly 25 to 30 decibels. While this muffles general suburban ambient noise, it leaves the dwelling vulnerable to arterial road traffic.[1][4]

Upgrading to an asymmetrical configuration with an acoustic laminate pushes that reduction to 38 or 40 decibels. Because a 10-decibel drop is perceived by the human ear as a halving of the volume, this upgrade effectively cuts the perceived traffic noise by 50 percent. The physics of staggered resonance transforms a disruptive environment into a quiet interior.[1][4]

Ultimately, achieving a silent room requires treating the window as a tuned acoustic system rather than just a thermal barrier. By understanding how bending waves exploit identical glass thicknesses, buyers can avoid the symmetrical trap. Specifying mismatched panes ensures that the physics of the glass works to break the sound wave, rather than carrying it inside.[6]
