The 60,000 PSI Yield Strength: How Rebar Actually Prevents Concrete from Failing Under Tension

A standard four-inch residential concrete slab can effortlessly support the 4,000-pound compressive weight of a parked pickup truck. Yet, if the soil beneath that same driveway washes away, a mere 400 pounds of bending force applied to the unsupported edge will snap the concrete in half. This massive disparity dictates every rule of modern construction.[6]

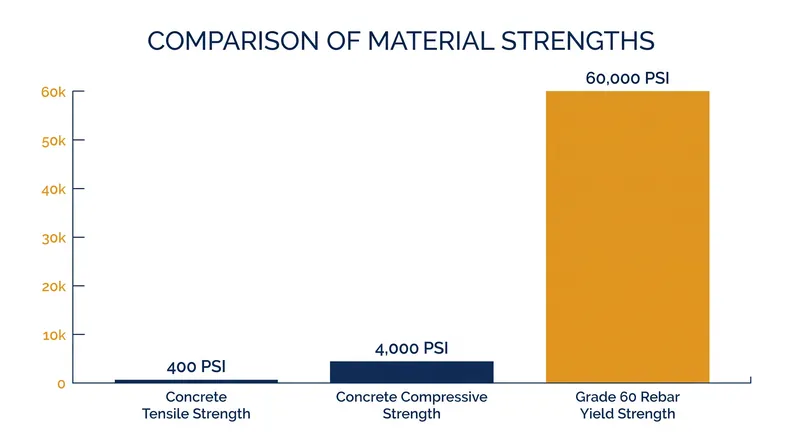

The fundamental limitation of concrete is its asymmetry. As the civil engineering curriculum at the University of Memphis explicitly notes, "Concrete is strong in compression, but weak in tension." A standard residential mix might achieve a compressive strength of 4,000 pounds per square inch (PSI) after curing for 28 days. However, its tensile strength—its ability to resist being pulled apart—is typically only 10 percent of that figure, hovering around 400 PSI.[6]

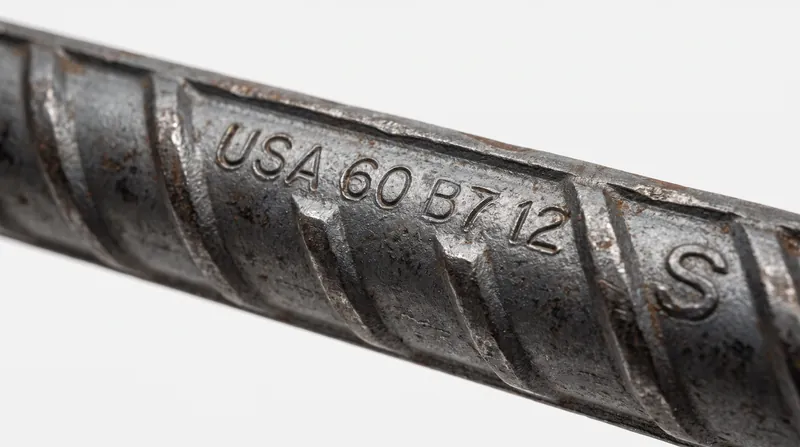

To bridge this 3,600 PSI gap, builders rely on a specific metallurgical standard: ASTM A615 Grade 60 carbon-steel reinforcing bars. The "60" designates a yield strength of 60,000 PSI. Yield strength is not the point at which the steel breaks; rather, it is the exact threshold where the metal stops acting like a rubber band and permanently stretches.[1][5]

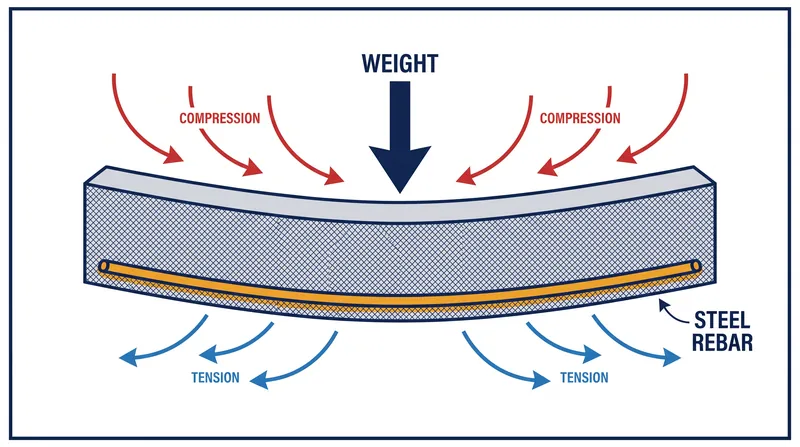

When a concrete beam or foundation experiences a bending load—such as the weight of a house pressing down on a settling patch of earth—the material behaves predictably. The top half of the beam compresses, playing to concrete's natural strength. The bottom half, however, stretches. This stretching creates tensile forces that immediately exceed the concrete's 400 PSI limit.[3]

At the exact moment the concrete begins to micro-fracture, the embedded steel rebar takes over the load. Because Grade 60 rebar can withstand 60,000 PSI of tension before permanently deforming, it acts as an internal skeleton, holding the fractured concrete matrix tightly together and preventing a catastrophic collapse.[3][5]

This composite relationship relies on a microscopic mechanical lock. Modern rebar is not smooth; it is forged with specific ridges and deformations. As the liquid cement paste cures, it hardens around these ribs, creating a physical interlock that prevents the steel from slipping out of the concrete when placed under extreme tension.[1]

The partnership between these two wildly different materials is made possible by a rare coincidence of physics. Both steel and concrete share nearly identical coefficients of thermal expansion—expanding and contracting at a rate of roughly 0.0000055 inches per inch for every degree Fahrenheit of temperature change. If they expanded at different rates, the steel would shatter the concrete from the inside out during the first summer heatwave.[3][6]

For homeowners, understanding this dynamic changes how property maintenance is evaluated. A hairline crack in a garage floor or a basement wall is rarely a sign of impending structural failure. Instead, it is visual evidence that the concrete has transferred its tensile load to the steel reinforcement, which is functioning exactly as designed.[3][7]

The engineering demands placed on this composite material are currently shifting. In 2019, the American Concrete Institute updated its ACI 318 building code to formally permit the use of Grade 80 and Grade 100 high-strength reinforcing bars for a wider range of structural applications, moving beyond the long-standing Grade 60 standard.[2]

This regulatory shift addresses a growing logistical problem in commercial and high-end residential construction: steel congestion. As building designs become more ambitious, engineers have had to pack so much Grade 60 rebar into columns and beams that it becomes difficult to pour the concrete through the dense steel web.[4]

"High-strength reinforcing bars offer the potential to reduce reinforcement congestion," explains Structure Magazine, noting that using 80,000 or 100,000 PSI steel allows engineers to use fewer bars to achieve the same tensile capacity. This not only speeds up construction but ensures the concrete can flow freely and eliminate hidden air pockets.[4]

Despite the introduction of alternative materials like basalt and fiberglass reinforcement in 2026, carbon-steel rebar remains the undisputed standard. Its ability to provide 60,000 PSI of tensile resistance at a low production cost ensures that concrete will continue to serve as the foundation of the built environment, masking its greatest weakness behind a hidden grid of steel.[1][7]
