The ASTM F1869 and F2170 Standards: How Relative Humidity and Moisture Vapor Emission Rate Actually Dictate When a Concrete Slab is Ready for Flooring

A homeowner who installs hardwood or luxury vinyl over a newly poured basement slab before it reaches a safe internal relative humidity will watch their investment buckle, warp, and detach within six months. The adhesive bonds holding modern flooring systems together dissolve when trapped concrete moisture rises to the surface, turning a costly renovation into a total loss. This failure mechanism has forced the construction industry to abandon older surface testing methods in favor of internal probes that measure the exact moisture profile hidden deep within the slab.[1][5]

Concrete is essentially a rigid sponge. When a slab is poured, it contains significantly more water than is required for the chemical hydration process that cures the cement. As the concrete hardens, this excess water must evaporate into the air. If a vapor-impermeable floor covering—like sheet vinyl, rubber, or engineered hardwood—is installed before the slab has sufficiently dried, the remaining moisture becomes trapped.[2][3]

Historically, the flooring industry relied on the ASTM F1869 standard, commonly known as the anhydrous calcium chloride test, to determine if a slab was ready. This method measures the Moisture Vapor Emission Rate (MVER). Installers place a pre-weighed dish of calcium chloride crystals on the concrete surface, seal it under a plastic dome, and leave it for 60 to 72 hours.[1][6]

After the testing period, the dish is re-weighed. The weight gained by the salt crystals is used to calculate the MVER, expressed as pounds of moisture emitted per 1,000 square feet over a 24-hour period. A reading of 3 pounds or less traditionally indicated the slab was safe for most flooring installations.[1][6]

The ASTM F1869 standard carries a fundamental flaw: it only measures the moisture evaporating from the top 1/2 to 3/4 inch of the concrete. According to technical documentation from LATICRETE, "the calcium chloride test is highly sensitive to ambient room conditions." If the building's HVAC system is running and the room is dry, the surface of the concrete dries out quickly, yielding a falsely low MVER reading even if the bottom of the slab remains saturated.[6]

This discrepancy leads to catastrophic flooring failures. Once the floor covering is installed, it acts as a vapor retarder. The moisture trapped deep within the slab eventually equilibrates, rising to the surface. The previously dry top layer becomes saturated, the pH level spikes, and the flooring adhesive breaks down.[3][5]

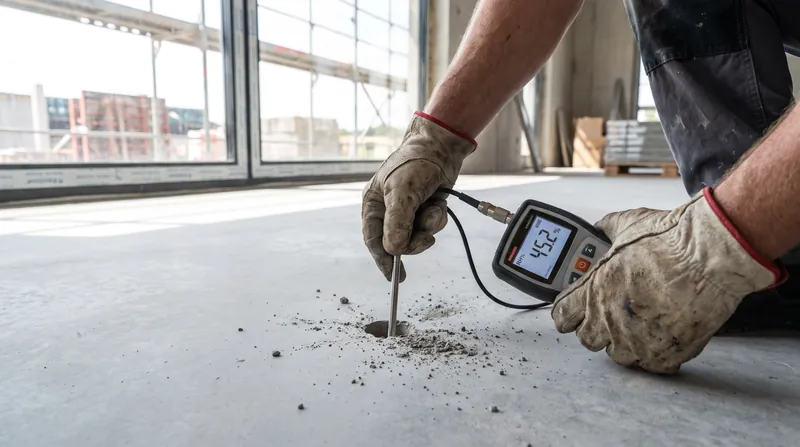

To solve this, the industry developed the ASTM F2170 standard, which measures in-situ relative humidity (RH). Instead of measuring what is leaving the surface, this method measures the actual moisture trapped inside the concrete. Installers drill a hole into the slab, insert a digital hygrometer probe, and seal it.[1][5]

The depth of the hole is critical. For a slab drying from one side—typically a slab poured directly on a vapor retarder over soil—the ASTM F2170 standard requires the probe to be placed at exactly 40% of the slab's total thickness. For a slab drying from both sides, such as an elevated structural floor, the depth requirement shifts to 20%.[2][5]

Extensive testing in the 1990s revealed that the relative humidity at 40% depth in a drying slab perfectly matches the final, equilibrated relative humidity of the entire slab after a floor covering is installed. In their 2024 technical guidance, Wagner Meters notes that by measuring at this specific depth, installers can predict exactly how wet the surface will become once the floor is sealed.[5]

Most modern flooring adhesives and resilient floor coverings require an internal relative humidity of 75% to 85% or lower before installation. If the ASTM F2170 test returns a value of 85%, the installer knows with certainty that the moisture level at the adhesive layer will eventually settle at 85%, regardless of the current room temperature or surface dryness.[2][5]

The Maple Flooring Manufacturers Association (MFMA) explicitly addresses these testing protocols. In their technical guidelines, the MFMA recommends that all concrete slabs be tested for moisture before installing solid maple flooring, as wood is highly hygroscopic and will expand violently if exposed to high moisture levels from below.[4]

When a slab fails these tests, contractors must employ moisture mitigation strategies. As outlined by the Association for Materials Protection and Performance (AMPP), this typically involves shot-blasting the concrete surface and applying a two-part epoxy moisture mitigation coating. These specialized epoxies penetrate the concrete pores and cure into a waterproof barrier, allowing flooring to be installed even on slabs with 100% relative humidity.[3]

A 2025 analysis by IFTI Flooring Experts highlights that the transition from F1869 to F2170 represents a shift from empirical guesswork to precise material science. While calcium chloride kits are cheaper and require no drilling, they provide a snapshot of surface evaporation that can change by the hour. In-situ RH probes provide a static, reliable baseline that dictates the true readiness of the concrete.[1][6]

For property owners and facility managers, understanding this distinction is the difference between a successful renovation and a costly legal dispute. Demanding that contractors adhere to the ASTM F2170 standard ensures that the invisible moisture gradient within the slab will not destroy the visible finishes above it, securing the investment for the lifespan of the building.[1][5][7]
