The 50-Year Hydrostatic Design Basis: The Standard That Dictates PEX and CPVC Plumbing Lifespan

For any residential plastic plumbing system to survive inside a wall, it must continuously contain municipal water pressure without its molecular structure slowly stretching to the point of rupture. That binding constraint—the material's long-term resistance to constant internal stress—is quantified by a single, rigorous standard: the Hydrostatic Design Basis (HDB). If a polymer cannot pass the 100,000-hour extrapolation test defined by ASTM D2837, it cannot be legally installed in a modern home. Today, both cross-linked polyethylene (PEX) and chlorinated polyvinyl chloride (CPVC) meet this mandatory baseline, but they achieve it through entirely different chemical mechanisms, resulting in distinct vulnerabilities when exposed to extreme temperatures or aggressive water chemistry.

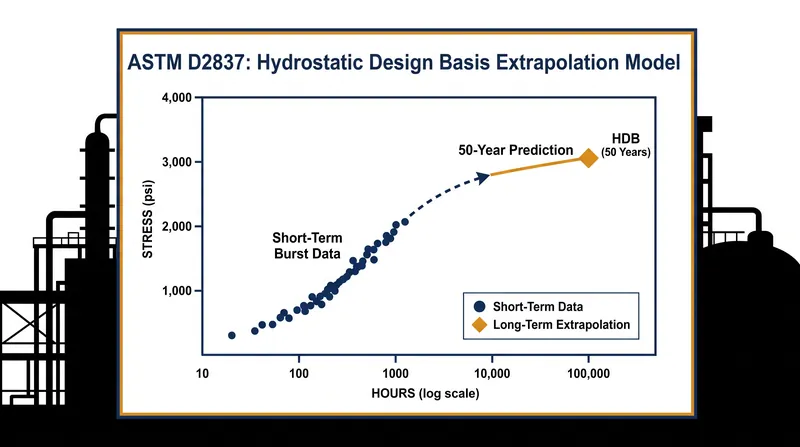

The Hydrostatic Design Basis is not a simple, instantaneous burst test. Instead, it serves as a mathematical model of polymer fatigue over decades of use. According to the Plastics Pipe Institute (PPI), which maintains the definitive TR-4 listing of approved plumbing materials, plastic pipes are subjected to elevated internal pressures at specific temperatures until they physically fail. By plotting these failure points on a logarithmic scale ranging from 10 hours to over 10,000 hours of continuous stress, engineers can accurately extrapolate the maximum stress the pipe wall can withstand at the 100,000-hour mark—roughly 11.4 years of constant, unyielding pressure.[2]

"The hydrostatic design basis (categorized long term strength) according to ASTM D2837 is 4,000 psi at 73 degrees Fahrenheit and 1,250 at 180 degrees Fahrenheit," notes Corzan Piping Systems in their technical breakdown of CPVC pressure ratings. This 100,000-hour intercept is then subjected to a secondary statistical validation process to ensure the material will survive for at least 50 years under continuous load. If the 50-year projected strength falls below 80 percent of the 100,000-hour value, the material is downgraded, ensuring that only the most stable polymers reach the residential market.[3]

However, the Hydrostatic Design Basis is not the actual working pressure rating stamped on the side of the pipe you buy at the hardware store. To account for manufacturing variations, sudden water hammer effects, and minor handling damage during installation, regulatory bodies apply a strict safety multiplier to the laboratory data. The Federal Register, in a comprehensive 2025 Pipeline and Hazardous Materials Safety Administration (PHMSA) standards update, reaffirmed the mandatory use of a 0.5 design factor for all water applications, effectively cutting the laboratory strength in half before it ever reaches a home.[1]

Multiplying the Hydrostatic Design Basis by this 0.5 safety factor yields the Hydrostatic Design Stress (HDS)—the absolute maximum allowable stress the pipe wall can safely endure in daily operation. For a standard SDR 11 CPVC pipe operating at room temperature (73°F), the 4,000 psi HDB translates to a 2,000 psi HDS. When factored against the pipe's specific wall thickness and diameter, this ultimately provides a safe, continuous working pressure rating of 400 psi, ensuring the pipe can easily handle the demands of a modern household.[2]

At room temperature, both PEX and CPVC offer massive safety margins for residential plumbing, which typically operates between a modest 40 and 60 psi. The mathematical divergence between the two materials only becomes apparent when the water temperature rises significantly. Domestic hot water systems are usually set to a safe 120°F, but water heater thermostat malfunctions, commercial boiler systems, or hydronic heating loops can easily push internal water temperatures to 180°F, fundamentally altering the physical properties of the plastic.

At 180°F, the molecular behavior of the two plastics splits dramatically. CPVC, an engineered thermoplastic produced by the intensive chlorination of polyvinyl chloride resin, maintains a highly rigid and stable structure even under extreme heat. Its Hydrostatic Design Basis drops from 4,000 psi to 1,250 psi at 180°F. While this is a significant reduction, applying the 0.5 design factor still yields a safe working pressure of 100 psi for standard residential pipe, keeping it well above the standard municipal supply pressure.[3]

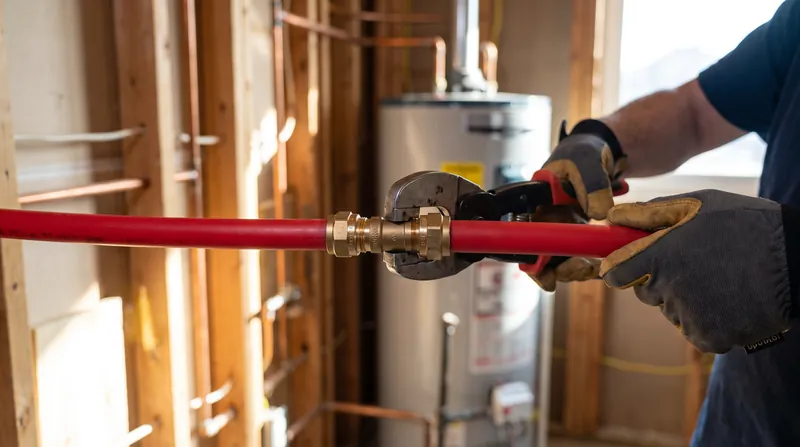

PEX, conversely, relies on cross-linked molecular chains that allow the material to bend, flex, and expand. While this flexibility makes it highly desirable for snaking through walls and highly resistant to freeze-break damage, it results in a notably lower tensile strength at high heat. The Hydrostatic Design Basis for standard PEX tubing at 180°F is categorized at just 850 psi. Applying the mandatory 0.5 design factor yields an HDS of 425 psi, which translates to a working pressure rating of roughly 80 to 100 psi depending on the specific wall thickness, leaving a narrower margin for error during a thermal spike.[2]

"NSF conducts rigorous testing based on ASTM and ISO standards, including evaluations for Hydrostatic Design Basis and Minimum Required Strength to ensure long-term performance and reliability," states NSF International in their 2025 certification guidelines for plastic pipes. This independent, third-party verification is exactly what allows municipal building inspectors to trust that a newly installed PEX or CPVC system will not catastrophically fail and flood a home when a water heater thermostat breaks and sends scalding water through the lines.[5]

The PE100+ Association, which evaluates high-density polyethylene and multilayer pipes for industrial applications, emphasizes that the linear regression analysis used to determine the HDB is highly sensitive to the quality of the extrusion process. A poorly manufactured batch of pipe will exhibit a pronounced "knee" in the stress-rupture curve—a sudden, downward shift indicating premature oxidative failure. This knee immediately disqualifies the material from receiving a 50-year rating, ensuring that substandard manufacturing cannot hide behind short-term burst tests.[4]

Beyond raw temperature and pressure limits, the 50-year lifespan predicted by the Hydrostatic Design Basis assumes a relatively neutral chemical environment inside the pipe. In practice, municipal water treatment plays a massive role in plumbing longevity. The Construction Specifier noted in a detailed 2014 analysis that CPVC possesses "favorable performance characteristics such as resistance to scaling, corrosion, and chlorine-based disinfection chemicals," allowing its HDB rating to hold steady even in districts that heavily treat their drinking water.

PEX, while completely immune to mineral scale buildup and highly resistant to most external environmental stressors, can be vulnerable to continuous internal exposure to highly chlorinated water at elevated temperatures. To address this, the ASTM F2023 standard was specifically developed to test the oxidative resistance of PEX tubing to hot chlorinated water, ensuring that the material's 50-year HDB rating holds true even in aggressive municipal water districts where chemical degradation could otherwise accelerate polymer fatigue.[5]

For the homeowner, property manager, or real estate investor, the Hydrostatic Design Basis standard removes the marketing guesswork from material selection. The choice between PEX and CPVC does not hinge on whether one material is inherently "stronger" in a vacuum, but rather on which material's specific stress-rupture profile best matches the unique physical and chemical threats of the local residential environment.

If the primary threat to the property is freezing temperatures in uninsulated spaces and shifting foundations, the highly flexible nature of PEX—even with its lower high-heat HDB—provides the best insurance against burst pipes. Conversely, if the primary threat is highly chlorinated municipal water and high-temperature commercial boilers, the rigid, chemically inert structure of CPVC offers the wider, more reliable safety margin over the lifespan of the building.

The 50-year Hydrostatic Design Basis serves as the invisible mathematical shield protecting modern residential infrastructure. By forcing manufacturers to prove their materials can withstand 100,000 hours of continuous stress in a controlled laboratory environment, the plumbing industry ensures that the pipes sealed behind drywall today will still be holding pressure decades from now. The standard guarantees that any approved system, regardless of its specific chemical makeup, possesses the rigorous pedigree required to survive.
