Why Radiators Stay Cold at the Bottom: How Magnetite Sludge Chokes Convection

The homeowner feels a cold patch at the bottom of the living room radiator and reaches for the bleed key, convinced that trapped air is blocking the flow. They open the valve, wait for the hiss, and close it when water appears, expecting the panel to warm up.

The heating engineer arrives a week later to find the exact same cold patch, but they do not reach for the bleed key. They know that air naturally rises to the highest point of a system, meaning a radiator that is cold at the bottom is suffering from a completely different physical blockage.

The actual culprit is magnetite, a dense black iron oxide sludge that forms silently inside the pipework. This explainer breaks down how this chemical compound develops, why it settles specifically at the base of radiators, and how it chokes the convective heat transfer that warms a room.

The Chemistry of Black Iron Oxide

Magnetite is not the flaky red hematite rust found on an exposed garden gate. It is a specific iron-oxygen compound that forms in closed environments where water interacts with ferrous metals under low-oxygen conditions, creating a blackish mineral that is highly magnetic.

Inside a standard central heating system, the water constantly washes over steel radiators, cast iron heat exchangers, and copper pipework. Even in a sealed loop, trace amounts of dissolved oxygen react with the steel to generate microscopic magnetite crystals, some measuring as small as five micrometres across.

Over months and years, these microscopic crystals aggregate into a thick, abrasive black sludge. Because magnetite is significantly denser than the water carrying it, the heavy particles rely entirely on the velocity of the circulating fluid to stay suspended in the flow.[3]

Why the Sludge Settles at the Base

The architecture of a standard steel panel radiator inadvertently creates the perfect trap for this heavy particulate. When the circulating water travels through the narrow 15-millimetre or 22-millimetre copper supply pipes, it moves at a relatively high velocity.

As that fast-moving water enters the radiator, it hits a sudden expansion chamber. The internal volume of the panel is vastly larger than the pipe feeding it, causing the fluid's velocity to drop dramatically as it spreads across the wide internal channels.

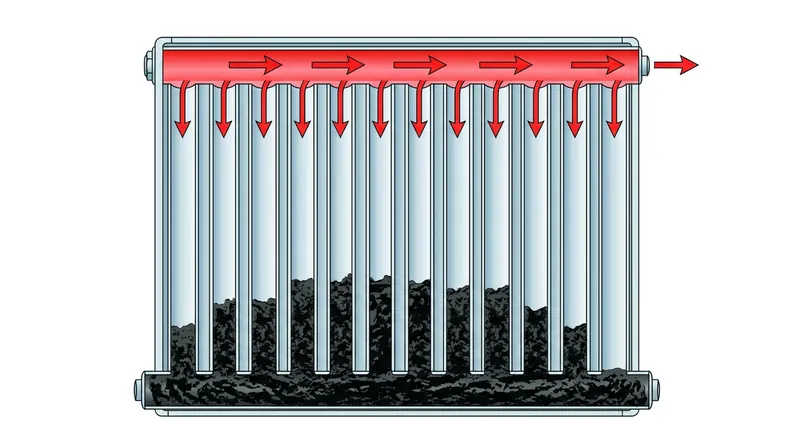

Once the flow velocity drops below the threshold required to suspend the dense iron oxide, the magnetite simply falls out of the water column. Gravity pulls the heavy sludge down, packing it tightly into the lowest horizontal channels of the radiator.[3]

Choking the Convection Cycle

A radiator relies on convection to heat a room, requiring hot water to flow freely across its entire internal surface area. The hot water enters, transfers its thermal energy to the steel panel, cools, and exits through the return valve to be reheated.

When magnetite sludge packs into the lower channels, it creates a solid physical barrier that the circulating water cannot penetrate. The hot water is forced to bypass the bottom of the panel entirely, flowing only through the upper sections where the channels remain clear.

This restricted flow path explains the classic symptom: a radiator that is hot to the touch at the top but stone cold at the bottom. The steel panel cannot radiate heat into the room if the hot water cannot reach the metal, severely reducing the unit's thermal output.[3]

The resulting efficiency loss is staggering for the homeowner. Industry data shows that a heavy accumulation of sludge can reduce a radiator's heat output by up to 47 percent, meaning the boiler burns gas to heat water that never successfully warms the living space.[4]

The Toll on the Boiler

The damage caused by magnetite extends far beyond a chilly room. As the sludge thickens, it restricts the overall bore of the pipework, forcing the boiler's circulating pump to work significantly harder to push water through the narrowed system.

The abrasive nature of the black iron oxide also wreaks havoc on moving parts. The microscopic crystals act like liquid sandpaper, grinding down the plastic impellers inside the circulating pump and wearing out the bearings prematurely as the sludge passes through.

When the sludge inevitably reaches the boiler, it settles inside the narrow passages of the primary heat exchanger. This insulates the heat exchanger from the water it is trying to heat, causing the boiler to run longer, consume more gas, and eventually overheat.[3]

Boiler manufacturers cite magnetite sludge as the leading cause of premature failure in modern heating systems. In the United Kingdom alone, dirty system water is responsible for roughly 60 percent of all annual boiler breakdowns, costing homeowners millions in avoidable repair bills.[4]

Prevention and Chemical Treatment

Because bleeding a radiator only removes trapped air from the top of the panel, it does absolutely nothing to clear the heavy sludge packed into the bottom. Resolving the issue requires physically removing the magnetite and permanently altering the water chemistry.

Heating engineers typically perform a power flush or a magnetic system cleanse, using high-velocity water and strong cleaning chemicals to break up the hardened sludge. Once the magnetite is suspended, it is flushed out of the system entirely, restoring the original flow rates.[1][2]

To prevent the sludge from returning, the system must be dosed with a chemical inhibitor. This liquid additive coats the internal steel surfaces, creating a protective barrier that stops the dissolved oxygen from reacting with the metal, effectively halting the corrosion process.[1][2]

Finally, modern building codes now strongly recommend or mandate the installation of a magnetic filter on the return pipework. This device uses powerful rare-earth magnets to strip any newly formed magnetite out of the circulating water before it can reach the boiler or settle in the radiators.[1][4]

The combination of chemical inhibition and magnetic filtration transforms the longevity of a heating system. By keeping the water clear and the flow unrestricted, the radiators can deliver their full thermal output, keeping the home warm while reducing annual energy consumption by up to seven percent.[4]
