Why Bathroom GFCIs Trip When Nothing Is Plugged In: The Physics of Siphon Voltage

Five milliamperes of electrical current is roughly equivalent to the power required to light a single miniature LED bulb. It is an almost imperceptible trickle of energy, yet it is the exact threshold required to plunge a modern bathroom into total darkness.

Homeowners frequently encounter ground-fault circuit interrupters (GFCIs) that trip repeatedly with absolutely nothing plugged into them. Replacing the receptacle often solves the problem temporarily, only for the phantom tripping to return a year later as the new device settles into its environment.[5]

The culprit is rarely a defective appliance or a failing electrical grid. Instead, the failure happens entirely inside the plastic housing of the outlet, driven by a microscopic interaction between airborne mineral dust and ambient humidity.[4]

When these two elements settle onto the receptacle’s internal printed circuit board, they create a highly conductive microscopic mud. This allows voltage to siphon directly across the board, tricking the safety sensor into shutting down the circuit.[3]

The Anatomy of a Safety Sensor

A standard household circuit breaker protects the wiring inside the walls from overheating during a massive overload, typically tripping at 15 or 20 amperes. It is designed to prevent structural fires, not to protect human tissue from electrocution.[2]

GFCIs serve a completely different function, monitoring the exact balance of current flowing out on the hot wire and returning on the neutral wire. If a person touches a live wire, a tiny amount of current diverts through their body to the ground.

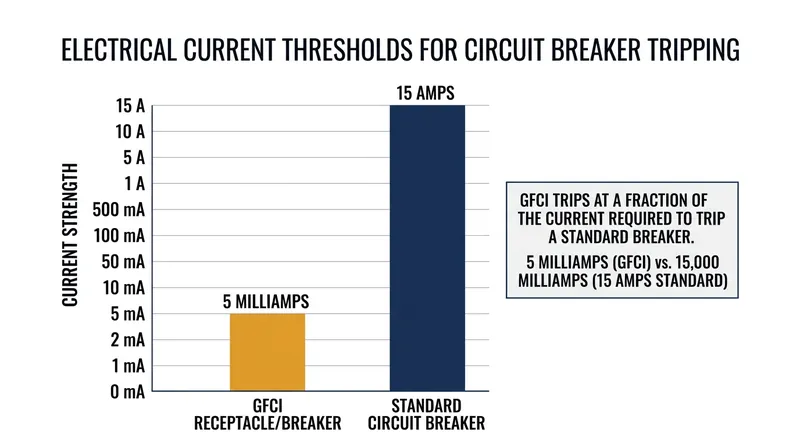

Underwriters Laboratories standard UL 943 mandates that a GFCI must sever the power if it detects a mismatch of just 4 to 6 milliamperes. This rapid response prevents lethal ventricular fibrillation, shutting off the power in roughly 25 milliseconds.

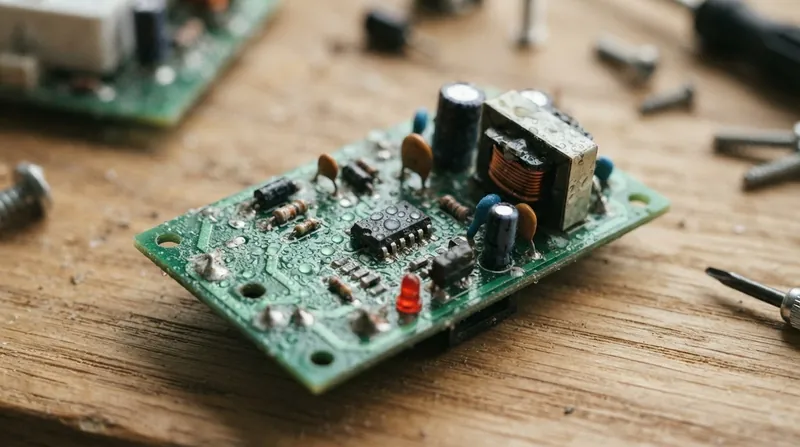

To measure this balance, the GFCI relies on a miniaturised current transformer and a sensitive printed circuit board tucked behind the reset button. The traces on this board sit just two millimetres apart, carrying 120 volts of alternating current.[1]

How Dust Becomes a Conductor

In a pristine laboratory environment, the fibreglass and epoxy resin of a circuit board act as perfect insulators. However, residential bathrooms, kitchens, and garages are filled with airborne particulate matter, including calcium sulfate from drywall and silica from concrete.[4]

These mineral dusts are highly hygroscopic, meaning they actively attract and hold water molecules from the surrounding air. When a hot shower pushes a bathroom's relative humidity past 80 percent, the dust coating the GFCI's internal components absorbs the vapor.[3]

Pure water is actually a poor conductor of electricity, but water mixed with mineral salts forms a highly efficient electrolyte. The dry, inert dust on the circuit board transforms into a microscopic layer of conductive sludge.[4]

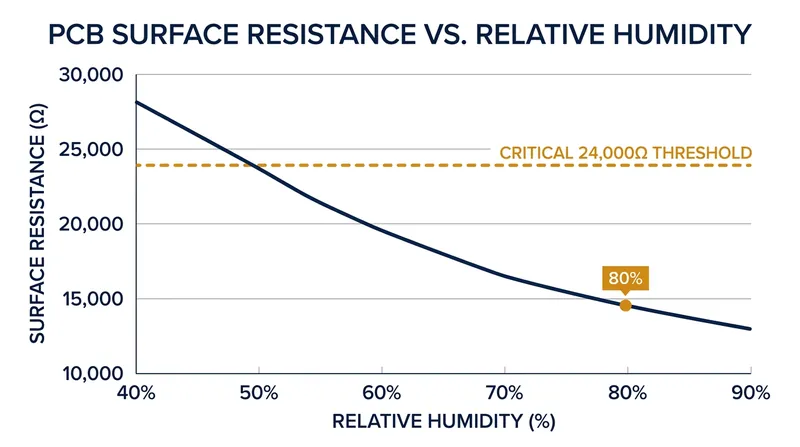

This phenomenon, known as environmental tracking, fundamentally alters the electrical resistance of the circuit board's surface. A gap that previously offered millions of ohms of resistance suddenly becomes a viable path for electrical current to travel.[3]

The Siphon Voltage Leak

Once the electrolyte bridge forms across the two-millimetre gap between the hot and neutral traces, a phenomenon called siphon voltage leakage begins. Electricity takes the path of least resistance, bleeding across the contaminated surface of the board.[1]

Ohm’s law dictates that 120 volts pushed across a 24,000-ohm resistance will generate exactly 5.0 milliamperes of current. When the mineral dust absorbs enough moisture to drop the board's surface resistance to this critical threshold, the leak matches the GFCI's trip point.[1]

The outlet's internal sensor cannot distinguish between 5 milliamperes leaking across its own dusty circuit board and 5 milliamperes leaking through a person holding a defective hairdryer. It simply detects the missing current and aggressively opens the circuit.[5]

This internal leakage explains why older GFCIs in damp locations become increasingly prone to nuisance tripping over time. Every cycle of condensation and evaporation leaves behind slightly more mineral residue, permanently lowering the board's baseline insulation resistance.[3]

Preventing the Ghost Trip

For homeowners dealing with chronic nuisance tripping, simply pressing the reset button offers diminishing returns. Once a conductive track forms on the board, the heat generated by the leakage current often carbonises the epoxy, making the path permanently conductive.[4]

The most effective intervention is replacing standard indoor receptacles with Weather-Resistant (WR) rated GFCIs, even in interior bathrooms. These upgraded devices feature conformal coating—a thin layer of silicone or polyurethane painted directly over the internal circuit board.[2]

This conformal coating physically seals the copper traces away from the surrounding air, preventing mineral dust and moisture from ever touching the conductive surfaces. The coating maintains the board's high resistance regardless of the ambient humidity.[2]

"The back of the receptacle is just as vulnerable as the front," notes building scientist Joseph Lstiburek in a 2021 Building Science Corporation advisory. "Air leaking through the wall cavity carries moisture directly into the device, bypassing the faceplate entirely."

Sealing the electrical box with expanding foam or silicone caulk stops this convective loop. By isolating the receptacle from both bathroom humidity and wall-cavity drafts, homeowners can eliminate the environmental variables that cause siphon leaks.

A standard GFCI replacement costs roughly $20, while a WR-rated version costs $28. That $8 premium buys a conformal coating that extends the functional lifespan of a bathroom safety device from three years to more than a decade.[2]
