Trapped Nitrogen Pockets in Radiator Circuits Starve Upper Floors by Blocking Hydronic Circulation

The homeowner bleeds the top-floor radiator, hears the hiss of escaping gas, and feels the cast iron finally grow warm. To them, the problem is solved. They assume a bubble of air was blocking the pipe, and now the closed loop is full of water again.

But when a hydronic engineer looks at that same radiator a week later and finds it cold across the top once more, they see a system quietly choking itself to death. The disagreement is not about whether the pipe is blocked, but about what is actually blocking it.

To the owner, the recurring cold spots suggest a failing circulator pump that lacks the power to push water to the second floor. To the engineer, the pump is fine. The system is suffering from a gas lock, and the gas trapped inside the radiator is not "air" at all.

It is nitrogen. The very act of bleeding the radiator and allowing the boiler's automatic feed valve to add fresh makeup water is exactly what guarantees the blockage will return.

The Illusion of a Closed Loop

Hydronic heating systems are designed to be closed loops. In theory, the same water circulates through the boiler, up to the radiators, and back down again for decades. Because the system is sealed, homeowners often assume that any gas inside the pipes must have leaked in through a loose fitting.

In practice, hydronic loops are rarely perfectly sealed. Fresh water enters the system every time the automatic feed valve tops off the pressure. This happens whenever a homeowner manually bleeds a radiator or a tiny drip occurs at a pump flange.

That fresh city water carries a hidden payload: dissolved atmospheric gases. Plumbing engineers categorize the gas in a hydronic system into three distinct types: stationary air pockets, entrained air bubbles, and dissolved gases.

Stationary pockets are the bulk air left behind during the initial filling of the pipes. Entrained bubbles are visible spheres of gas swept along by the current. Dissolved gases, however, are invisible, held in suspension between the water molecules themselves.

Cold tap water is saturated with oxygen, nitrogen, and carbon dioxide. According to technical trainers at Heating Help, a single gallon of cold tap water contains approximately half a cup of dissolved gases at atmospheric pressure. When that water enters the basement boiler, it brings those gases inside.[3]

Henry's Law and the Club Soda Effect

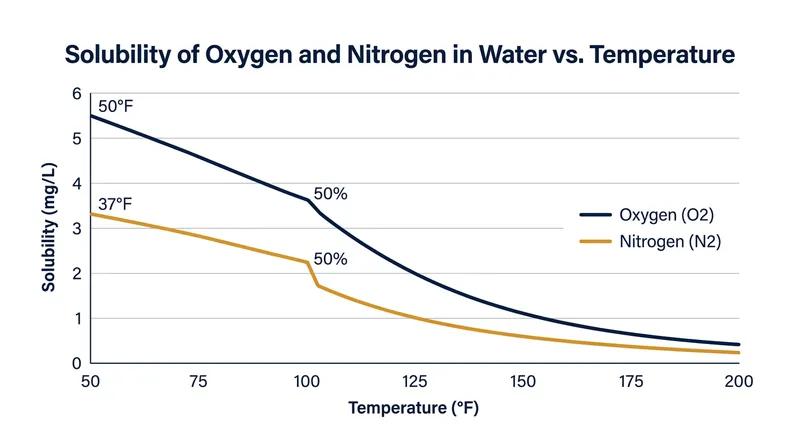

What happens next is dictated by a principle of physics known as Henry's Law. Formulated by William Henry in 1803, the law states that the solubility of a gas in a liquid is directly proportional to the pressure and inversely proportional to the temperature.[2]

Cold water under high pressure can hold a massive amount of dissolved gas. Hot water under low pressure cannot. When the boiler fires, it heats the fresh makeup water from around 50 degrees Fahrenheit to 180 degrees.[2]

Simultaneously, as the water moves away from the circulator pump, it experiences a drop in pressure. This combination forces the dissolved gases out of solution. The physical reaction is exactly like twisting the cap off a warm bottle of club soda.[2][3]

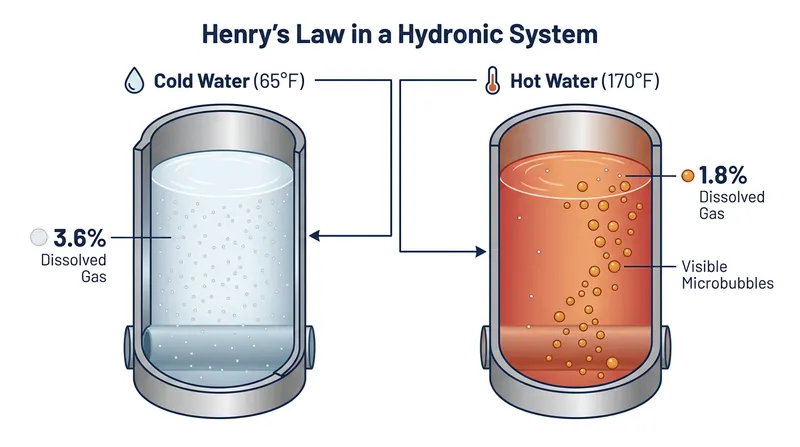

Engineers at Caleffi Hydronic Solutions quantify this drop precisely. At 65 degrees and 15 pounds per square inch of pressure, up to 3.6 percent of the water's volume consists of dissolved gases. When heated to 170 degrees, its capacity to hold gas drops by half, to 1.8 percent.[1]

The remaining gas precipitates out of the water. It forms millions of microscopic bubbles that are now free to travel through the heating loop.[1]

Why Nitrogen Survives the Circuit

The gas that boils out of solution is a mixture of oxygen and nitrogen. However, the two elements behave very differently inside a steel and copper heating loop. Oxygen is highly reactive and immediately binds with the ferrous components in the system.[1][5]

This oxidation process consumes the free oxygen, turning it into iron oxide, or magnetite sludge. The oxygen effectively destroys itself by rusting the cast-iron boiler heat exchanger and the steel panel radiators from the inside out.[5]

The magnetite sludge created by the oxygen does its own damage, coating the inside of the pipes and grinding away at the mechanical seals of the circulator pump. But once the oxygen is bound to the iron, it is no longer a gas.[2][5]

Nitrogen, making up 78 percent of the atmosphere, remains entirely gaseous. It is an inert gas that does not react with iron, copper, or brass. Because it never binds to the metal, it is never consumed by the system.[1]

Instead, the nitrogen microbubbles simply ride the current. Because they are incredibly small, they move slowly and are easily carried along by the circulator pump. They travel through the supply piping until they reach an area of low velocity or high elevation.[1]

The Anatomy of a Gas Lock

In a residential heating system, the areas of lowest velocity and highest elevation are almost always the top-floor radiators. As the nitrogen microbubbles enter the wide chambers of a cast-iron radiator or a baseboard convector, the water flow slows down.[4]

The bubbles float to the top of the radiator and begin to coalesce. Over days and weeks, millions of microscopic nitrogen bubbles merge into a single, expanding pocket of gas. Because the gas pocket sits at the highest point, it displaces the hot water downward.[4]

A small pocket at the top of a radiator severely restricts its thermal transfer. Technicians at Barci Plumbing & Heating note that this gas "can cut that unit's output by 20 to 40 percent while the rest of the house heats normally."[4]

They warn that if left unaddressed over a full winter, "that imbalance shows up as one chilly bedroom and a boiler that runs longer than it should." If the gas pocket grows large enough, it creates a total blockage in the piping.[4]

The physics of the blockage are absolute. Water is non-compressible, meaning a circulator pump only needs to overcome the friction of the pipes to move it. Gas, however, is highly compressible.[2]

When the pump's pressure wave hits a large pocket of trapped nitrogen, the gas simply compresses. It acts like a shock absorber, absorbing the pump's energy without moving the water behind it. The circuit is now "air-bound," and the entire upper floor goes cold.[2][4]

The Bleeding Cycle Trap

When the upper floor goes cold, the homeowner's instinct is to grab a radiator key and bleed the valve. Opening the bleeder releases the trapped nitrogen, allowing water to rush back into the radiator.[4]

The heat returns immediately, reinforcing the belief that bleeding is the correct maintenance procedure. But bleeding a closed-loop system triggers a destructive cycle. Releasing the gas drops the system pressure.[3]

The boiler's automatic feed valve senses the pressure drop and opens. It injects fresh, cold city water to replace the lost volume. That fresh water is packed with a new load of dissolved oxygen and nitrogen.[3][4]

When the boiler fires again, the new oxygen rusts a little more of the cast iron. The new nitrogen precipitates out to form a fresh gas lock at the top of the house. The homeowner is not fixing the problem; they are simply resetting the timer on a physics equation.[3]

Mechanical Air Elimination

Breaking the cycle requires stopping the nitrogen before it reaches the upper floors. Legacy systems relied on cast-iron air scoops, which required 18 inches of straight horizontal pipe to allow bubbles to rise to the top.[5]

However, these passive scoops were notoriously inefficient at catching microbubbles. John Siegenthaler, writing for PM Engineer, notes that "it took time for the dissolved molecules of oxygen and nitrogen to merge into bubbles large enough for cast iron air scoops to capture and eject."[5]

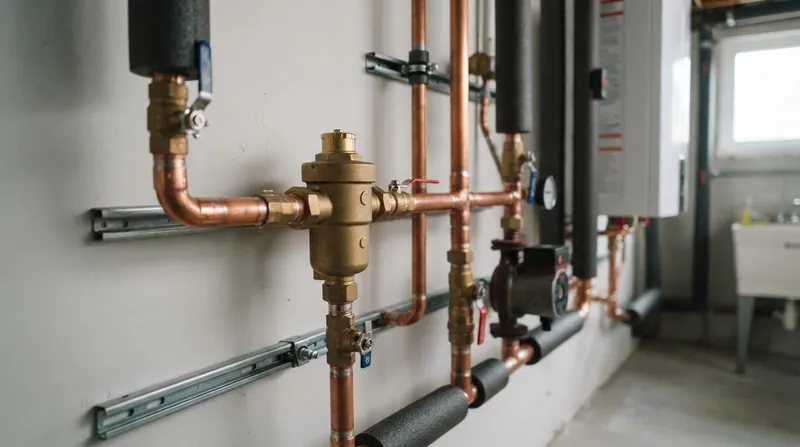

Modern hydronic engineering solves the problem with a microbubble air separator. This device must be installed at the point of lowest gas solubility. According to Henry's Law, this is the point where the water is hottest and the pressure is lowest.[1][2]

In a residential system, that is typically on the supply pipe immediately after the boiler, but before the circulator pump. The internal geometry of a modern microbubble separator is designed to exploit fluid dynamics.[1]

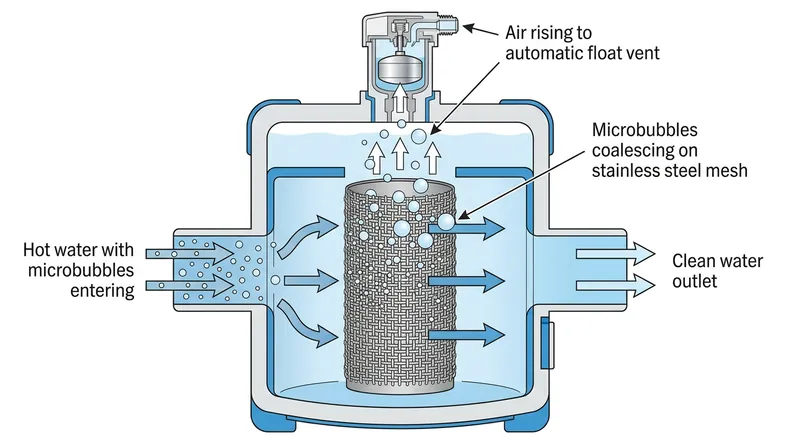

As the hot water enters the wider body of the separator, its velocity drops. The water passes through a dense matrix of copper or stainless steel bristles. The nitrogen microbubbles adhere to the bristles, merging with other bubbles until they become buoyant enough to break free.[1]

They float to the top chamber and are vented to the atmosphere through an automatic float valve. By stripping the nitrogen out of the water before it can travel upstairs, the separator ensures the radiators stay full. The pump maintains flow, the system stays quiet, and the homeowner never has to touch a bleed key again.[1]
