Solar Pumping Drives Moisture Past Breached Window Seals, Saturating Desiccant and Permanently Etching Double-Glazed Panes

The moment a double-glazed window fogs up from the inside, its life as an energy-efficient barrier is over. That milky haze between the panes is not dirt, and no amount of wiping will clear it. It is the visible evidence that the hermetic seal has failed, allowing humid outside air to breach the cavity.[1]

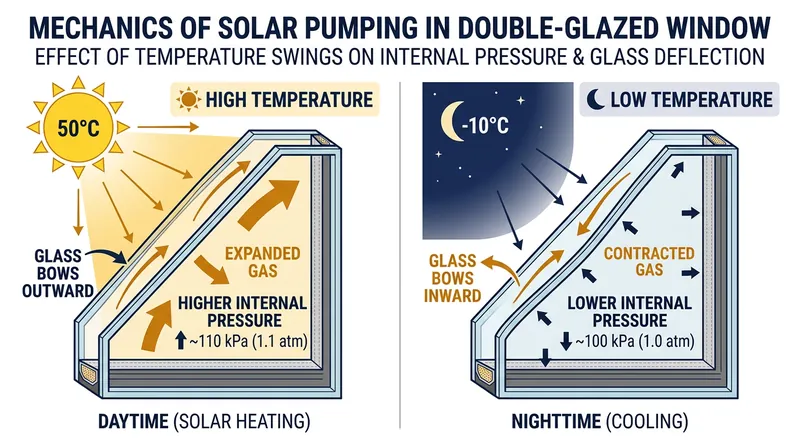

This failure is rarely a sudden manufacturing defect. It is the final stage of a mechanical fatigue process called solar pumping, driven by the daily heating and cooling of the trapped gas. Every time direct sunlight hits the window, the internal temperature spikes, expanding the gas and bowing the glass outward.[1]

When the sun sets, the cavity cools, the gas contracts, and the glass bows inward. Over thousands of diurnal cycles, this constant flexing strains the perimeter sealant until a microscopic gap opens. Once that breach occurs, the window transforms from a sealed unit into a one-way moisture pump.[1]

The Physics of Thermal Expansion

The mechanics of this failure are governed by the Ideal Gas Law, which defines the relation between the pressure, volume, and temperature of a gas, according to the Encyclopedia Britannica. If an insulating glass unit is sealed at 20°C, a summer afternoon in direct sunlight can easily push the internal cavity temperature past 50°C.[3]

That 30°C temperature swing creates a roughly 10 percent pressure differential inside the rigid cavity. Because the glass panes are fixed at the edges, this pressure has nowhere to go but outward. The center of the pane swells like a balloon, exerting immense shear force on the perimeter seals.[3][4]

Modern insulating glass units manufactured in 2026 rely on a dual-seal system to withstand this pressure. A primary seal of polyisobutylene blocks moisture vapor, while a secondary seal of structural silicone or polysulfide holds the panes together. Despite their flexibility, these polymers eventually fatigue under the relentless daily strain of solar pumping.[1]

South- and west-facing windows typically fail first because they endure the most extreme temperature swings. A vinyl-framed window with a standard aluminum box spacer might succumb to solar pumping in just eight to twelve years. The rigid aluminum transfers heat rapidly, exacerbating the thermal expansion and accelerating the sealant's degradation.[1]

The Hidden Role of Desiccants

Inside the perimeter of every insulating glass unit sits a hollow spacer bar packed with a desiccant. Manufacturers typically use silica gel or molecular sieves to absorb the trace moisture trapped in the air during the initial factory sealing. This chemical sponge keeps the internal dew point well below freezing.[2]

The chemical structure of the desiccant dictates its capacity. As the editors of Wikipedia note, silica gel is an amorphous and porous form of silicon dioxide, consisting of an irregular three-dimensional framework of alternating silicon and oxygen atoms. Those microscopic, nanometer-scale voids are what trap the incoming water vapor.[2]

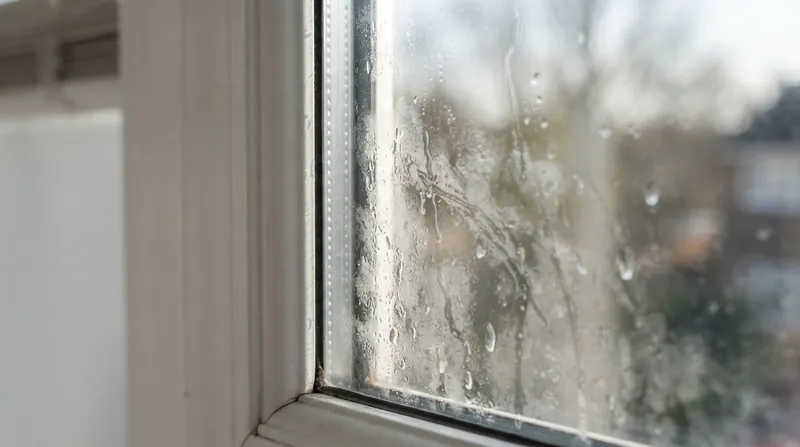

For years, this desiccant quietly does its job, ensuring the cavity remains bone-dry. But once the primary butyl seal fails, the nightly contraction of the cooling window draws fresh, humid air inside. The desiccant immediately absorbs this new moisture, effectively hiding the seal failure from the homeowner.[2]

A breached window can breathe in humid evening air for months without showing a single drop of condensation. The silica gel acts as a buffer, soaking up the water vapor before it can condense on the glass. Eventually, however, the silica gel reaches its absolute maximum adsorption capacity.[2]

With the desiccant fully saturated, the next intake of humid air remains in the cavity as free vapor. When the outside temperature drops that evening, the trapped vapor condenses against the cold exterior pane, forming the characteristic internal fog. The window's hidden failure finally becomes visible.[1][2]

Permanent Etching and Thermal Loss

If left unchecked, this trapped moisture does far more than obscure the view. The cyclical condensation and evaporation draw silicate minerals from the saturated desiccant and the aluminum spacer. These dissolved minerals are deposited onto the glass surface as the water evaporates in the midday sun.[1]

Over time, these mineral deposits permanently etch the interior surfaces of the double-glazed panes. The glass develops a white, hazy residue that cannot be washed away or chemically removed. Even if a technician manages to dry out the cavity, the physical scarring on the glass remains permanent.[1]

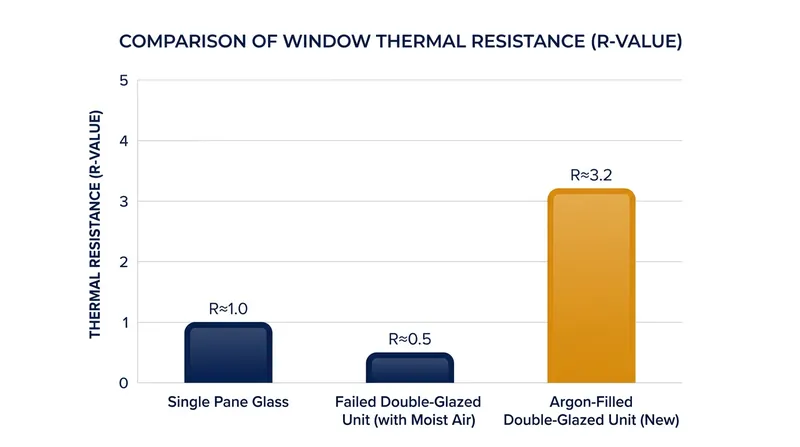

At this stage, the window's thermal performance is entirely compromised. The heavy insulating gases, such as argon or krypton, escape through the breached seal long before the desiccant saturates. They are replaced by highly conductive moist air, plummeting the window's thermal resistance and driving up the home's heating and cooling costs.[1]

A failed double-glazed unit with a saturated desiccant offers barely more insulation than a single pane of glass. The 16-millimeter cavity that once blocked heat transfer now acts as a thermal bridge. Homeowners often notice the failure when a room suddenly feels drafty or when their winter energy bills spike.[1][4]

Targeted Replacement Strategies

Replacing the entire window frame is not always the necessary or most cost-effective solution. If the surrounding wood, vinyl, or fiberglass frame remains structurally sound, a glazier can often remove the failed insulating glass unit and install a new one. This targeted replacement restores the thermal performance at a fraction of the cost.[4]

However, the new glass unit will face the exact same solar pumping forces that destroyed its predecessor. To extend its lifespan, homeowners should specify warm-edge spacers when ordering the replacement. These flexible, non-metallic spacers accommodate thermal expansion far better than rigid aluminum, delaying the inevitable sealant fatigue.[1][4]

Upgrading the replacement unit with a low-emissivity coating can also mitigate the underlying cause of solar pumping. By reflecting a significant portion of the sun's infrared energy, the coating keeps the internal cavity cooler during the summer. A cooler cavity means less volumetric expansion and less strain on the seals.[1]

Some companies offer defogging services, which involve drilling tiny holes in the glass to vent the moisture and injecting a cleaning solution. While this can temporarily clear the condensation, it does not restore the escaped argon gas or repair the breached perimeter seal. The window remains thermally compromised and prone to future fogging.[4]

Managing the Building Envelope

The lifespan of a double-glazed window is ultimately a function of its environment and its materials. Windows installed in high-altitude regions face an additional pressure differential from the lower atmospheric pressure, which compounds the stress of solar pumping. Manufacturers often install capillary tubes in these units to equalize the pressure during transit.[1][4]

Coastal homes face a different threat, as salt-laden air accelerates the corrosion of the aluminum spacers and the degradation of the polysulfide seals. In these environments, the combination of solar pumping and chemical attack can reduce a window's lifespan to less than a decade. Regular inspection of the exterior caulking is essential.[1]

Homeowners should inspect their south- and west-facing windows every autumn, looking for the first signs of internal haze. Catching a seal failure early allows for a planned glass replacement before the winter cold sets in. Waiting until the glass is permanently etched limits the repair options and guarantees a season of heat loss.[4]

The transition from a sealed, energy-efficient barrier to a saturated, etched pane is a slow but inevitable mechanical failure. Solar pumping guarantees that no double-glazed window will last forever. Understanding the mechanism allows homeowners to make informed decisions about maintenance, upgrades, and targeted replacements when the fog finally appears.[1][4]
