Adhesive Seal and ASTM D7158/UL 2390: How Asphalt Shingle Standards Actually Rate Wind Uplift Resistance

The binding constraint for an asphalt shingle to survive a Category 4 hurricane is not the fiberglass mat or the nail pattern, but a thin strip of heat-activated asphalt adhesive. When a homeowner buys a shingle rated for 150 mph winds under ASTM D7158 or UL 2390, that rating carries a strict, often-overlooked condition: the shingle must be fully sealed. If the roof is installed in late November and the ambient temperature never rises high enough to activate the sealant strip, or if winter dust compromises the bond before it sets, the laboratory wind rating is void. The standard explicitly measures the mechanical uplift resistance of a sealed shingle against calculated wind forces. Without that thermal bond, the shingle is just a flap of asphalt waiting for a gust.[1][2][6]

Historically, the roofing industry relied on a literal, physical demonstration to prove wind resistance. Developed in the 1950s by the National Bureau of Standards, ASTM D3161, known as the Fan-Induced Method, blows a stream of air across a test deck for two hours. Shingles that survive a 60 mph wind are classified as Class A, 90 mph earns a Class D, and 110 mph secures a Class F. It is a straightforward visual test: if the tabs do not lift or tear off after 120 minutes, the product passes.[3][5]

However, as building codes evolved to demand higher wind load capacities, the fan test hit a physical and mathematical ceiling. A 110 mph fan cannot simulate the complex aerodynamic uplift pressures generated by a 150 mph hurricane gust hitting a steep-slope roof on a 40-foot building. The standard itself contains a blunt disclaimer stating that the results of this test do not directly correlate to wind speeds experienced in service. Furthermore, ASTM D3161 makes no accommodation for building height, exposure category, or the ultimate design wind speeds mandated by the American Society of Civil Engineers (ASCE) 7 standard.[3]

To bridge the gap between laboratory fans and structural engineering, wind engineering consultants Cermak Peterka Petersen Inc. conducted extensive research in the early 2000s for the Asphalt Roofing Manufacturers Association. This research formed the basis for UL 2390 and ASTM D7158, first published in 2005. Instead of blowing air at a roof deck, the Uplift Force/Uplift Resistance Method calculates the aerodynamic force a specific wind speed will exert on a shingle, and compares that force to the shingle's measured mechanical strength.[2][3]

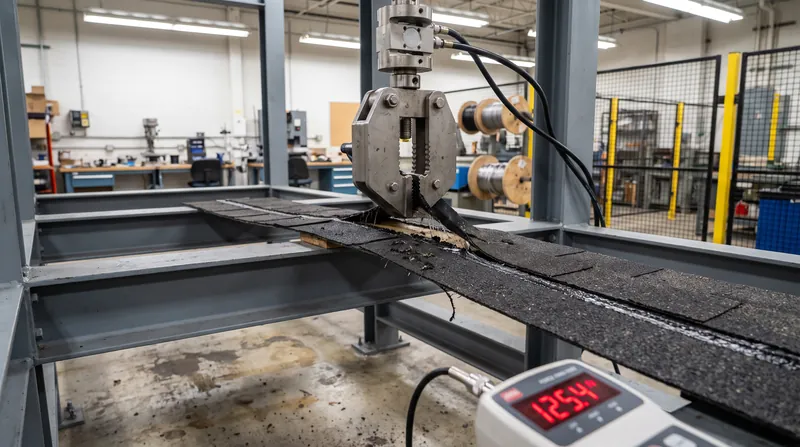

The laboratory testing for ASTM D7158 isolates two specific mechanical properties. First, technicians measure the shingle's flexural modulus, or stiffness. If a manufacturer does not provide a specific measurement, the standard allows a default uplift rigidity of 7,175 N-mm² (2.5 lbf-in.²). Second, they measure the mechanical uplift resistance of the self-seal strip. A mechanical rig pulls upward on the sealed tab to determine the exact force required to break the bond. The target bond strength for a wind-resistant shingle tab typically falls between 12 and 17 pounds.[6]

Once those physical properties are measured, the standard applies aerodynamic pressure coefficients to calculate whether the shingle will stay attached at specific wind speeds. Under the 2016 revision of ASTM D7158, which aligns with ASCE 7-10 ultimate design wind speeds, a Class D rating indicates the shingle can resist a 115 mph wind. Class G covers up to 150 mph, and the highest rating, Class H, indicates the shingle's mechanical resistance exceeds the calculated uplift force of a 190 mph wind.[3][5]

The calculations supporting these classifications are not universal. ASTM D7158's baseline classifications are limited to specific parameters from the ASCE 7 standard, including building heights of 60 feet or less and Ground Roughness B or C, which represent suburban or open terrain. For buildings outside these parameters, such as a 70-foot coastal condominium situated in Ground Roughness D, the standard requires additional engineering calculations. The shingle manufacturer must supply specific aerodynamic data to verify the product can handle the increased uplift pressures.[3][4]

The mathematical precision of Class H offers structural engineers a reliable metric for high-velocity hurricane zones, but it assumes a flawless installation environment. Section 6.2 of ASTM D7158 explicitly outlines the real-world variables that can ruin the math, stating that many factors influence the sealing characteristics of shingles in the field; for example, temperature, time, roof slope, contamination by dirt and debris, and fasteners that are misaligned or under driven and interfere with sealing. The standard notes that it is beyond the scope of this test method to address all of these influences.[1][6]

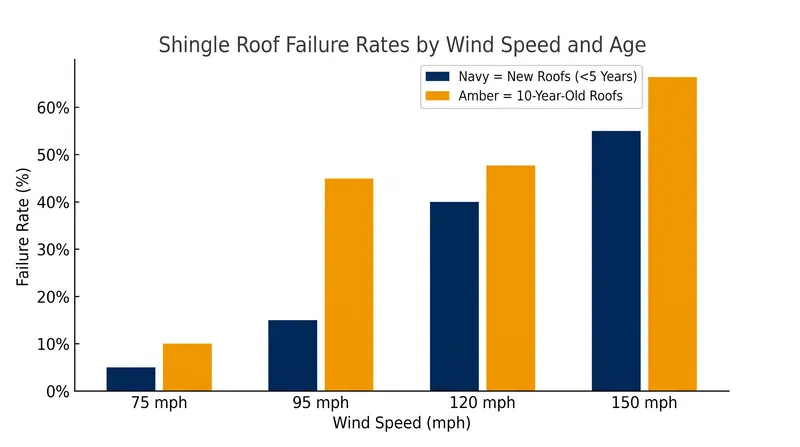

When that adhesive seal fails, the consequences are severe, regardless of the printed rating on the shingle wrapper. Post-storm damage assessments by the Florida Division of Emergency Management indicate that when wind gusts exceed 120 mph, between 30 percent and 50 percent of shingle roofs suffer enough damage to require complete replacement, regardless of the roof's age. For roofs older than 10 years, where the adhesive bond has degraded over time, failure rates jump significantly even in moderate 75 to 95 mph winds.

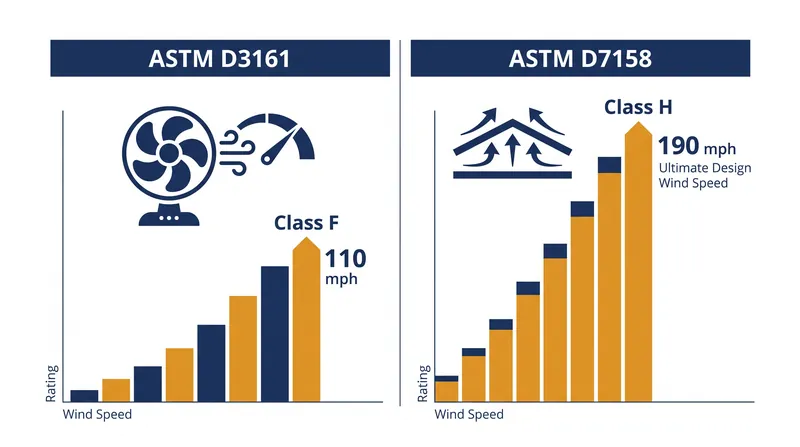

The distinction between the two testing standards dictates how roofing contractors and building inspectors evaluate a home's storm readiness. A Class F rating under ASTM D3161 proves the shingle survived a two-hour physical battering at 110 mph, providing a baseline for inland residential construction. A Class H rating under ASTM D7158 proves the shingle possesses the mathematical rigidity and adhesive strength to survive a 190 mph gust, satisfying strict coastal building codes, provided the sun shines hot enough to seal the roof before the storm arrives.[5][7]
