Beyond the Gauge: How Insulation and Temperature Actually Dictate Wire Ampacity

The weekend renovator pulling wire for a new kitchen circuit operates on a rigid, universally repeated rule: 14-gauge copper takes 15 amps, 12-gauge takes 20 amps, and 10-gauge takes 30 amps. To them, copper is copper, and the breaker dictates the safety limit.

But the electrical inspector holding a copy of the 2026 National Electrical Code (NEC) sees a completely different reality. To the inspector, a 12-gauge wire is not inherently a 20-amp conductor; its capacity is a fluid number dictated entirely by the plastic wrapped around it and the temperature of the air it runs through.[1][6]

The core metric dividing these two views is ampacity—the maximum current a conductor can carry continuously without exceeding its temperature rating. As current flows, copper resists it, generating heat. "The insulation is the weak link, not the copper itself," explains the Universal Technical Institute's 2025 curriculum. If the heat exceeds what the thermoplastic jacket can withstand, the insulation melts, exposing live copper and starting a fire within the wall cavity.[3]

This is where the 12-gauge rule of thumb collapses. According to NEC Table 310.16, as detailed by Electrician Prep in March 2026, standard non-metallic sheathed cable (NM-B, commonly known as Romex) is restricted to the 60°C (140°F) temperature column. Under that column, 12 AWG copper is rated for exactly 20 amps. However, Nassau National Cable's April 2026 engineering data shows that the exact same 12 AWG copper, when coated in THHN (Thermoplastic High Heat-resistant Nylon) insulation, falls under the 90°C (194°F) column, granting it a starting ampacity of 30 amps.[1][2]

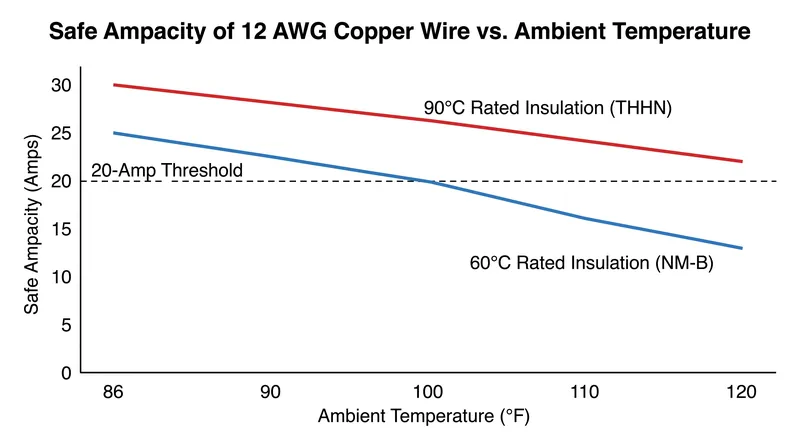

The difference between 20 amps and 30 amps for the exact same thickness of copper becomes critical when the wire leaves the climate-controlled living room and enters a hot attic. The NEC requires electricians to apply ambient temperature correction factors when ambient heat exceeds 86°F (30°C). In a summer attic reaching 100°F, the wire cannot shed its internally generated heat as effectively, meaning its safe carrying capacity drops.[1][6]

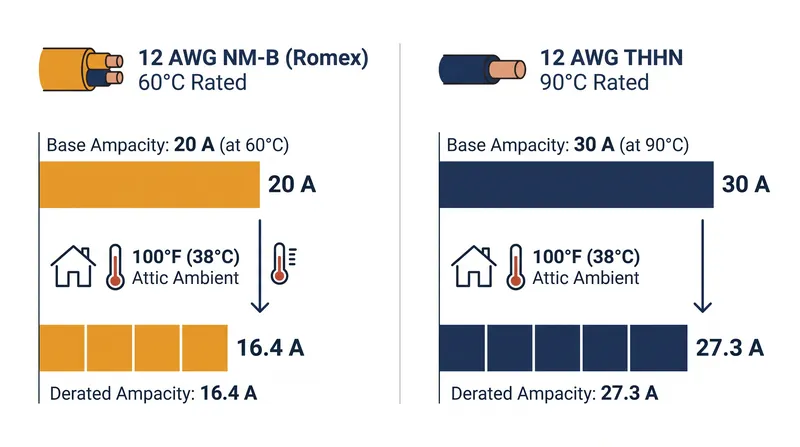

Applying the NEC derating formulas reveals the hidden danger of the DIY rule of thumb. A 12 AWG THHN wire starting at 30 amps in a 100°F attic is multiplied by a 0.91 correction factor, leaving a safe ampacity of 27.3 amps—comfortably supporting a 20-amp breaker.

But a 12 AWG NM-B cable, starting at 20 amps under the 60°C column, must be multiplied by a 0.82 correction factor. Its safe capacity drops to 16.4 amps. If a homeowner runs a 20-amp space heater on that circuit, the breaker will not trip, but the wire will overheat.[1][2][6]

Even if the wire and insulation can handle the heat, the connection points often cannot. LugsDirect.com's technical specifications emphasize that ampacity is limited by the weakest component in the circuit. Most standard residential receptacles and circuit breakers are rated for 75°C. Therefore, even if a THHN wire is rated for 90°C and 30 amps, the NEC dictates that the circuit's final ampacity cannot exceed the 75°C column limit (25 amps for 12 AWG) when connected to standard hardware.[4]

The complexity extends beyond residential wiring into industrial and underground applications. The IEEE 835-1994 standard, which governs power cable ampacities, models heat dissipation through various mediums, including soil and concrete. While a homeowner worries about attic air, underground feeders face thermal resistance from the earth itself, requiring entirely different ampacity calculations based on soil moisture and density.[5]

For the local homeowner planning a basement finish or an EV charger installation, the safe limit of a circuit is determined by the lowest rating among the wire, the insulation, the ambient environment, and the terminals. The next time a spool of wire is pulled from the shelf, the letters printed on the jacket matter just as much as the numbers.[6]
