Surface Evaporation Balances Capillary Suction to Cap Rising Damp at One Metre in Masonry Walls

Rising damp stops at roughly one metre above the floor because the upward pull of capillary suction is perfectly cancelled out by moisture evaporating from the wall's surface. If a homeowner sees a damp stain reaching up to their waist, physics is holding the water back from climbing any higher.[1]

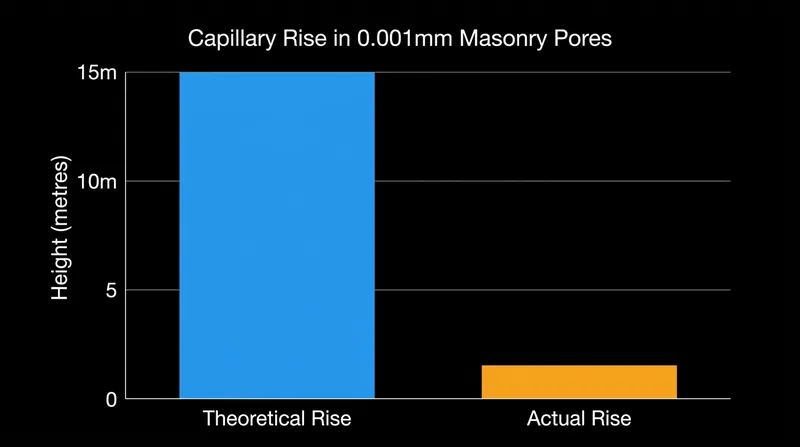

Without evaporation, the microscopic pores in brick and mortar would act like powerful straws, pulling groundwater all the way to the roof. Jurin's Law, the physical principle governing capillary action, dictates that water in a standard 0.001-millimetre masonry pore could theoretically rise 15 metres.[2]

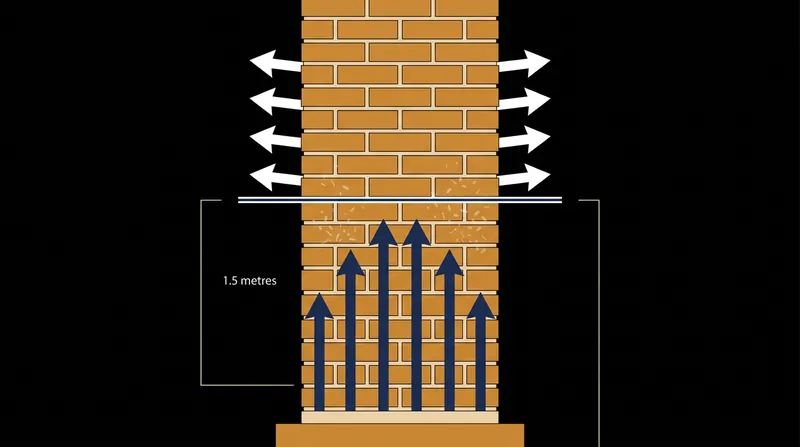

But houses are not sealed vacuums. As the moisture climbs, it is constantly exposed to the air on both the interior and exterior faces of the wall. The water evaporates into the room, leaving the wall at a rate that eventually matches the speed of the water being sucked up from the soil.

This creates a strict equilibrium point, usually between 1 and 1.5 metres above the ground. For a property owner, this physical limit is the ultimate diagnostic tool: if a damp patch stretches up to the second-floor bedroom, it is not rising damp, but rather a leak or condensation.[1]

The Mechanics of Capillary Suction

To understand why water climbs a wall in the first place, buyers and renovators have to look at the microscopic structure of their building materials. Bricks, stone, and mortar are not solid blocks; they are honeycombed with tiny voids and interconnected capillary tubes.

When the base of a wall sits in damp soil, the surface tension of the groundwater pulls it into these narrow channels. The narrower the tube, the stronger the upward pull. In building materials with a typical pore radius of one micrometre, this capillary suction is remarkably forceful.[2]

The water does not travel alone. Groundwater carries dissolved minerals and salts, particularly nitrates and chlorides, straight into the masonry. As the water moves upward, it drags this saline payload through the brickwork, turning the wall into a giant vertical filter.

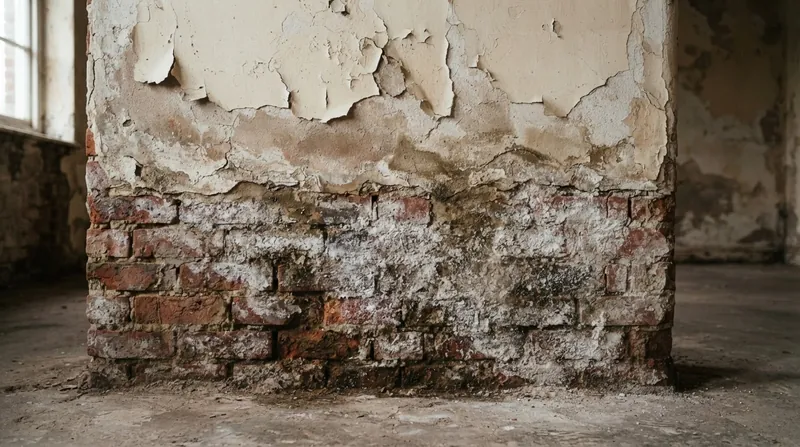

When the water finally evaporates at the equilibrium line, it leaves those salts behind in the plaster. This is why rising damp leaves a characteristic white, powdery tide mark across the lower section of a wall, often accompanied by bubbling paint and crumbling skirting boards.

How Evaporation Caps the Climb

The theoretical model for this balance was established in a 2007 paper by researchers Christopher Hall and William D. Hoff, who mapped the exact dynamics of capillary rise in walls. Their work proved that the height of the damp front is entirely dependent on the wall's ability to breathe.[2]

In a thin, well-ventilated wall, there is a large surface area relative to the volume of water inside the bricks. Evaporation happens quickly, meaning the upward flow is exhausted much lower down the wall. The tide mark might stop at just 30 to 50 centimetres.

Conversely, a thick masonry wall has less surface area for its volume, slowing the evaporation rate. The capillary suction can push the water higher before the balance is struck. This is why thick Victorian solid walls often show tide marks closer to the 1.5-metre maximum.[2]

The local environment inside the home also shifts this equilibrium. Higher indoor temperatures and good airflow increase evaporation, pushing the damp line down. During cold, humid winter months, evaporation slows, allowing the damp to creep slightly higher up the plaster.

The Danger of Trapping the Moisture

For homeowners, understanding this evaporation balance is crucial when attempting repairs. The most common mistake renovators make is trying to hide the tide mark by painting over it with waterproof, non-breathable acrylic paints or applying dense cement renders.

By sealing the surface, the homeowner shuts off the evaporation mechanism that was keeping the damp in check. With the water no longer able to escape into the air, the capillary suction faces no resistance, forcing the moisture to climb higher up the wall to find a new exit.[1]

A tide mark that was stable at one metre can suddenly shoot up to two metres simply because the wall was sealed. The trapped moisture then saturates the bricks entirely, increasing the risk of structural frost damage during winter and accelerating the decay of embedded timber joists.

The salts left behind also complicate the recovery. Because these ground salts are hygroscopic, they actively absorb moisture from the indoor air. Even if the rising damp is stopped at the source, salt-contaminated plaster will continue to look and feel wet on humid days.

Re-establishing the Barrier

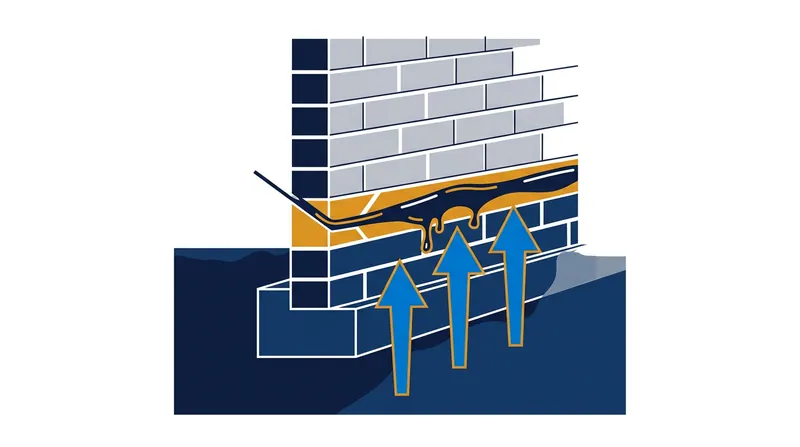

Modern construction prevents this entire process by installing a damp-proof course during the build. This impermeable layer of plastic or bitumen is laid into the mortar bed about 150 millimetres above the external ground level, physically severing the capillary pathways.

In older properties where the original slate barrier has cracked, or where raised garden beds have bridged over it, the capillary connection to the soil is restored. Fixing it requires cutting off the water supply so the wall can finally dry out.[1]

The standard intervention involves drilling a horizontal line of holes into the lowest accessible mortar joint and injecting a silane or siloxane-based cream. This chemical spreads through the pores and cures into a hydrophobic band, creating a new, artificial damp-proof course.

Once the upward suction is blocked, the evaporation process takes over completely. The wall will slowly dry out over several months, but the salt-laden plaster below the old tide mark must be hacked off and replaced with a breathable, salt-retardant render to finish the job.

Diagnosing the True Problem

Because true rising damp is strictly limited by this physical equilibrium, homeowners can use the height of a stain to avoid expensive misdiagnoses. The vast majority of damp problems in residential buildings are actually caused by condensation or penetrating rain, not rising groundwater.[1]

Adam Wareing, director of Sussex Damp Experts, notes that the limits are non-negotiable. "Rising damp can only climb as high as physics allows—about 1 to 1.2 metres above floor level, set by the capillary action in brick or stone," Wareing explains.[1]

If a damp patch appears on a second-story ceiling, around a window frame, or high up in a corner, capillary action from the soil is physically incapable of putting it there. Paying for a chemical damp-proof injection in these scenarios is a complete waste of renovation funds.[1]

By respecting the one-metre rule dictated by surface evaporation, property owners can accurately identify their moisture issues. When the physics of capillary rise are understood, a daunting damp problem becomes a predictable, measurable, and entirely fixable structural equation.[3]
