Weight vs. Fire Resistance: How Class A Roofing Upgrades Dictate Structural Load Limits

The fate of a roof replacement is sealed not when the homeowner selects a material, but weeks earlier, when a structural engineer calculates the existing framing's dead load capacity. If the trusses were built to hold standard asphalt shingles, they cannot legally or safely support the weight of premium fire-resistant tiles. This initial mathematical check dictates every subsequent decision in the renovation process.[5][6]

The push for better fire protection has driven a surge in demand for Class A roof assemblies, the highest fire-resistance rating recognized by the International Building Code (IBC). Under IBC Section 1505.2, Class A roofs are proven to be effective against severe fire test exposures, making them a standard requirement in wildfire-prone regions.[1]

To achieve this rating, materials must pass rigorous testing protocols outlined in UL 790 and ASTM E108. These standards subject roofing assemblies to burning brand tests, flying brand tests, and intermittent flame exposures to ensure the material will not ignite, blow off, or allow the fire to penetrate the roof deck.[3][4]

While certain asphalt shingles can achieve a Class A rating when installed over specific underlayments, many homeowners and builders opt for inherently non-combustible materials like clay, concrete, or slate. These materials offer superior longevity and absolute fire resistance without relying on chemical treatments or specialized sub-layers.[1][3]

However, the physical properties that make these materials impervious to fire also make them exceptionally heavy. This introduces the concept of "dead load"—the permanent, stationary weight of the building materials themselves, as opposed to "live loads" like snow, wind, or construction workers.[5][7]

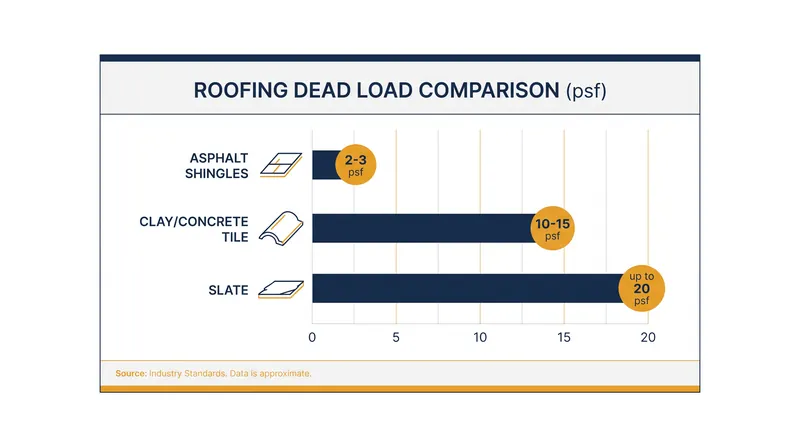

Standard asphalt shingles typically impose a dead load of 2 to 3 pounds per square foot (psf) on the roof structure. In contrast, concrete and clay tiles routinely weigh between 10 and 15 psf, while natural slate can reach up to 20 psf depending on its thickness.[5][7]

This weight disparity creates a critical structural bottleneck. A home originally framed in the 1980s or 1990s with standard 2x4 trusses was engineered specifically to carry the 3 psf dead load of asphalt, plus the regional live load requirements.[6]

Upgrading to a 15 psf concrete tile roof increases the permanent structural burden by 400 to 600 percent. According to structural engineering guidelines, placing this much uncalculated weight on a standard truss system will cause the rafters to deflect, sag, and eventually fail under the stress.[6][7][8]

The International Building Code strictly regulates these modifications. Under IBC 2021 Section 1607.14, any alteration that increases the dead load by more than 5 percent requires a comprehensive structural evaluation and, in almost all cases, a mandatory retrofit to bring the framing up to current load-bearing standards.[2]

During a roof load evaluation, structural engineers measure the span of the rafters, the spacing between trusses, the grade of the lumber, and the integrity of the connections. They calculate the total combined stress of the new dead load alongside the required environmental live loads.[6]

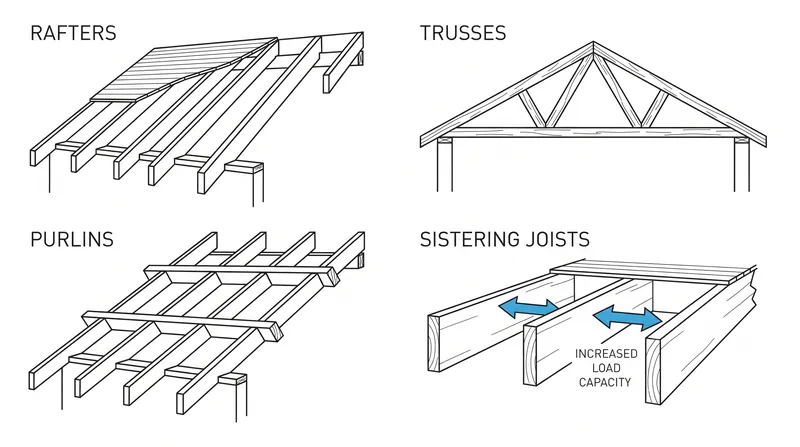

If the existing framing fails the mathematical stress test, the homeowner faces a structural retrofit. This process, known as "sistering," involves bolting or nailing new lumber directly alongside the existing rafters to increase their rigidity and load-bearing capacity.[5][6]

In more extreme cases, engineers may require the installation of additional purlins—horizontal beams that provide mid-span support to the rafters—or the reinforcement of the load-bearing walls down to the foundation to ensure the weight transfers safely to the ground.[5]

The financial implications of this structural reality are substantial. The cost of the engineering evaluation, the architectural drawings, the municipal permits, and the specialized framing labor can easily add thousands of dollars to the roofing project before a single tile is laid.[6]

For homeowners, the aesthetic and safety benefits of a Class A tile roof are undeniable, but the material cannot be chosen in a vacuum. The physical skeleton of the house always has the final say on what can be installed above it.[5][6][8]
