The 1/300 Rule: How Attic Square Footage Dictates Minimum Net Free Vent Area

For a passive attic ventilation system to function as designed, the ceiling plane separating the living space from the roof deck must be completely air-sealed. If that barrier leaks around recessed lights, attic hatches, or plumbing stacks, the roof vents stop drawing fresh air from the eaves and instead vacuum climate-controlled air straight out of the house. This pressure dynamic dictates whether a roof protects the structure or actively accelerates energy loss.[3]

The mathematical standard governing this airflow is codified in Section R806.2 of the 2021 International Residential Code (IRC). It establishes the baseline requirement for roof ventilation: the total net free ventilating area (NFVA) must equal 1/150 of the area of the vented space.[1]

However, the code offers a critical exception that cuts the required ventilation hardware in half, known across the construction industry as the 1/300 rule. To qualify for this reduction, the building must meet strict aerodynamic and moisture-control conditions.[1][2]

The primary condition requires a balanced distribution of airflow. Between 40 percent and 50 percent of the required ventilating area must be located at least three feet above the eave or cornice vents, typically at the roof ridge. The remaining capacity must be provided by intake vents positioned at the lowest point of the roof assembly.[1]

When intake and exhaust are balanced, the system leverages the natural physics of temperature. As the Building America Solution Center notes, passive ventilation relies on "the thermal buoyancy of air and wind pressure" to drive moisture out of the assembly. Cold air enters the lower soffit vents, warms as it absorbs heat radiating from the living space, and rises to escape through the ridge.[3]

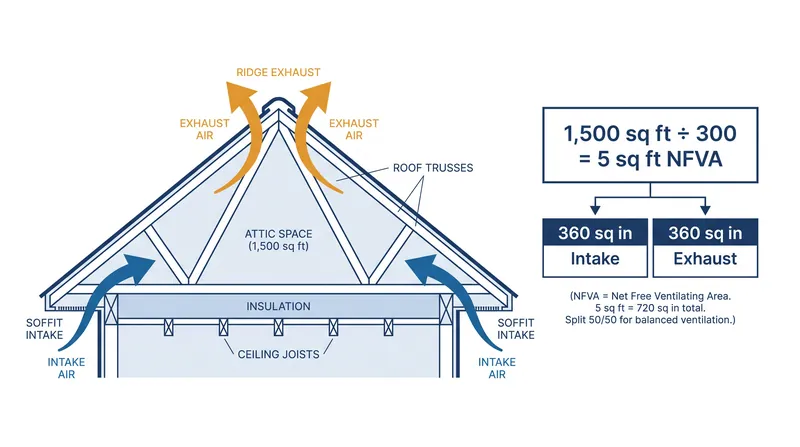

To understand what this means for an actual buyer or owner, consider a standard 1,500-square-foot attic footprint. Under the baseline 1/150 rule, that space requires 10 square feet of net free vent area. If the roof qualifies for the 1/300 exception, the requirement drops to exactly 5 square feet.[6][7]

Square feet of air space must then be converted into physical building materials. Five square feet equals 720 square inches of NFVA. To maintain the required balance, a contractor must split this capacity: 360 square inches dedicated to intake at the soffits, and 360 square inches dedicated to exhaust at the ridge.[4][8]

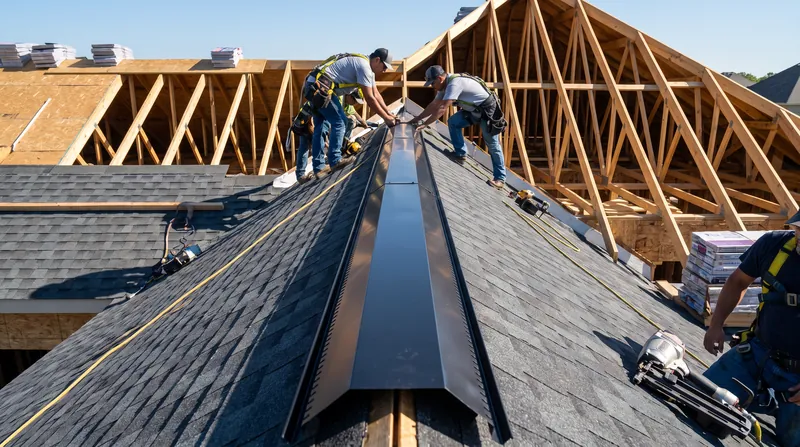

Standard continuous ridge vent products typically provide 18 square inches of NFVA per linear foot. Dividing the 360-square-inch exhaust requirement by 18 yields exactly 20 linear feet of ridge vent. The homeowner must ensure the soffits provide an equal or slightly greater intake capacity to prevent the ridge from pulling a vacuum on the house.[4]

The consequences of getting this ratio wrong manifest primarily in winter, not summer. While many homeowners associate attic vents with cooling the house, building scientists prioritize ventilation to manage humidity.[9]

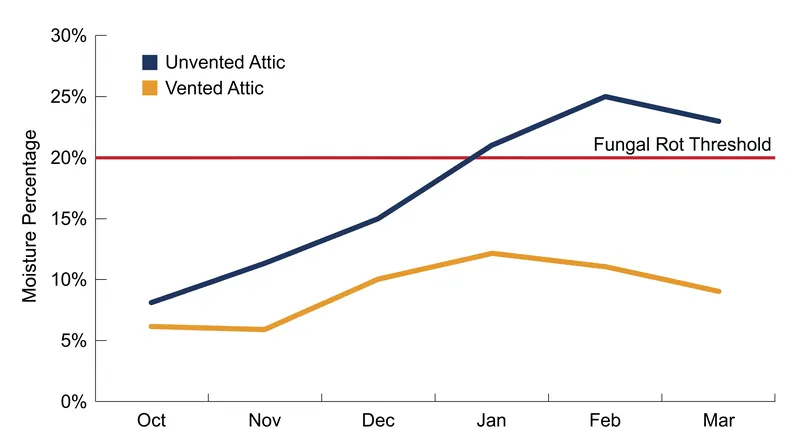

A 1992 field study conducted by the Oak Ridge National Laboratory (ORNL) measured temperature and sheathing moisture content in residential attic assemblies. The researchers found that without adequate ventilation, moisture migrating from the living space condenses on the cold underside of the roof deck, driving wood moisture content above the 20 percent threshold where fungal rot begins.[9]

In colder climates—specifically Climate Zones 6, 7, and 8 as defined by the Department of Energy—the IRC mandates a Class I or II vapor retarder on the warm-in-winter side of the ceiling to qualify for the 1/300 exception. This plastic or kraft-paper barrier physically blocks indoor humidity from reaching the cold attic air.[1]

Summer cooling loads present a secondary, though highly marketed, reason for the 1/300 rule. Asphalt shingle manufacturers generally require compliance with standard ventilation codes to maintain their 30-year or 50-year product warranties, arguing that trapped heat accelerates the degradation of the asphalt binder.[5]

Yet, adding mechanical force to a passive system often destroys the intended airflow. Roofing contractors frequently encounter homes where an owner installed a powered attic exhaust fan alongside a continuous ridge vent.[6]

Because the powered fan pulls air from the path of least resistance, it bypasses the restrictive soffit vents and sucks air directly inward through the nearby ridge vent. This short-circuiting pulls rain and snow into the attic while leaving the lower reaches of the roof deck completely stagnant.[7]

The 1/300 ratio itself is a legacy metric, originating in the 1942 Federal Housing Administration (FHA) property standards. Despite eight decades of advances in building science, the fraction remains the legal baseline because it provides a reliable, easily verifiable safety margin for standard gable and hip roof geometries.[4]

Complex roof designs complicate this math. Valleys, dormers, and multiple roof planes compartmentalize the attic, preventing cross-ventilation. In these scenarios, contractors cannot simply apply the 1/300 rule to the total footprint; they must calculate and balance the NFVA for each isolated rafter cavity.[2][8]

The modern alternative to calculating NFVA is abandoning ventilation entirely. The 2021 International Building Code (IBC) Section 1202.2.1 permits unvented attic assemblies if the roof deck is completely encapsulated in closed-cell spray polyurethane foam, moving the thermal boundary from the ceiling to the roof line.[2]

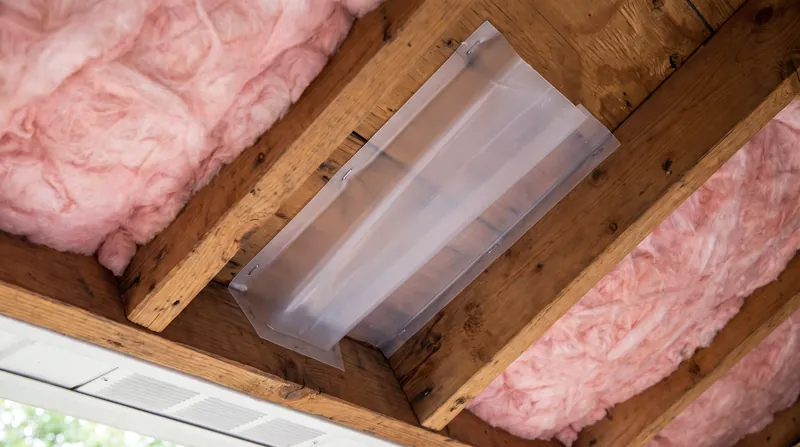

For the millions of existing homes relying on passive airflow, the 1/300 rule remains the governing law of the roof. Before a homeowner pays to cut more holes in their decking, the first diagnostic step is verifying that the existing soffit vents are not buried under blown-in fiberglass insulation.[3]
