How Capillary Siphonage Through Lapped Membranes Rots Below-Slab Timber

A pitched roof sheds water effortlessly because gravity pulls rain down across the overlapping asphalt shingles. But when builders apply that exact same overlapping logic to waterproofing membranes beneath a basement slab, the physical forces completely reverse.

Below the ground, moisture does not fall; it pushes upward through the soil. When two sheets of polyethylene vapor barrier are simply lapped over one another without a continuous seal, the microscopic gap between them stops acting like a shield and becomes a pump.

This phenomenon is known as capillary siphonage. For a homeowner finishing a basement or a buyer evaluating a new build, it represents a hidden structural threat. The very plastic meant to keep the floor dry actively draws water into the timber framing.

"The assumption that gravity alone will keep water out of a foundation is the single most expensive mistake in residential construction," notes Dr. Joseph Lstiburek of the Building Science Corporation in a 2024 technical bulletin.

The Physics of Capillary Siphonage

Capillary action occurs when the adhesive forces between a liquid and a solid surface are stronger than the cohesive forces within the liquid itself. In building materials, this dynamic allows water to travel vertically against gravity.

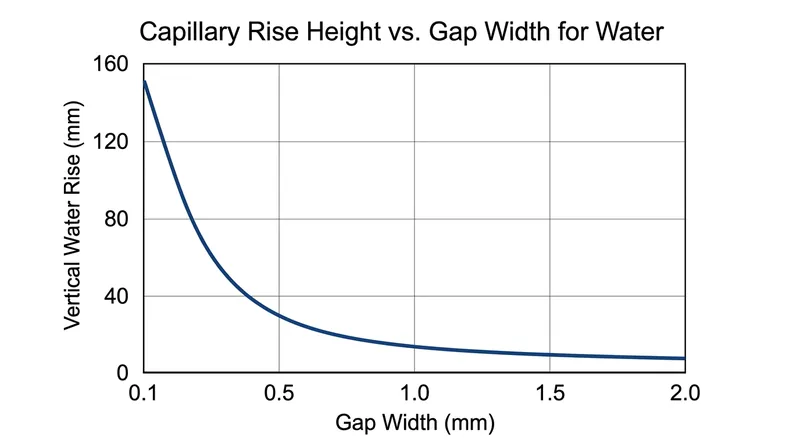

The height that water can climb depends entirely on the width of the gap it enters. In a space measuring just 0.1 millimetres wide, water can rise up to 150 millimetres vertically without any external pressure.[2]

When builders lay a 15-mil (0.38-millimetre) polyethylene moisture barrier over crushed stone, they typically overlap the seams by 150 to 300 millimetres. If those seams are not taped or sealed with mastic, the weight of the concrete slab presses the sheets tightly together.[1]

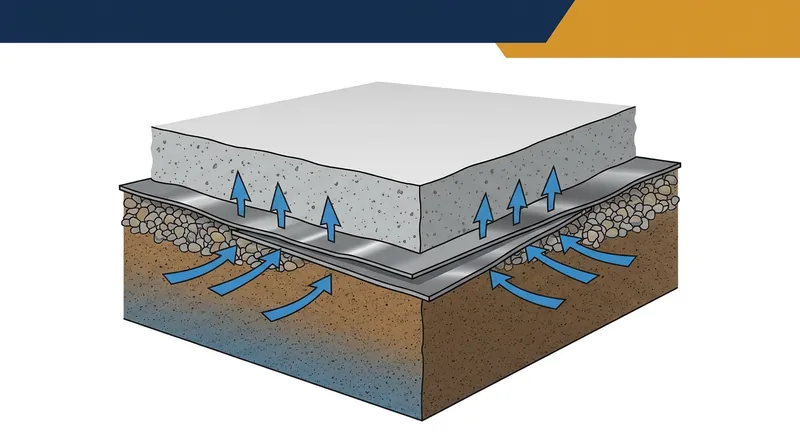

This heavy compression creates the perfect capillary tube beneath the floor. Instead of blocking the damp earth, the tight, unsealed overlap wicks moisture directly from the sub-grade soil, pulling it laterally and upward through the horizontal joint.

"Water will exploit any gap smaller than a millimetre," the Journal of Architectural Engineering reported in a 2025 study on sub-grade moisture transport. "In unsealed membrane laps, we observed continuous moisture migration at rates exceeding 12 millilitres per linear metre per day."[2]

How Standard Laps Become Micro-Pumps

The International Residential Code (IRC) mandates a minimum 150-millimetre overlap for sub-slab vapor retarders. However, the 2024 edition of the code only requires these joints to be sealed "where necessary," leaving the decision to local inspectors and individual contractors.[1]

In practice, many contractors simply overlap the plastic sheets and pour the concrete directly on top. They rely on the weight of the 100-millimetre thick slab to hold the plastic in place, assuming the tight compression will keep moisture out.

That compression is exactly what triggers the siphon effect. A loose overlap might allow water vapor to diffuse slowly, but a tightly pressed, unsealed seam creates the strong adhesive forces required for liquid water to climb rapidly.

Once the water reaches the top of the overlap, it pools directly against the underside of the concrete. Because concrete is naturally porous, it absorbs this concentrated moisture, transferring it upward to any organic material resting on top of the slab.

For a homeowner, this means the sleeper floors or bottom plates of basement framing are sitting on a continuously damp surface. The membrane, intended to be an impenetrable barrier, has effectively bypassed the protective gravel drainage layer.

The Hidden Rot in Sub-Slab Timber

Wood decay fungi require a moisture content of at least 20 percent to thrive and multiply. Standard kiln-dried framing lumber arrives at a job site with a moisture content between 12 and 15 percent, well below the biological danger zone.[3]

However, the continuous capillary pumping from an unsealed membrane seam changes that environment entirely. This steady moisture transfer can raise the moisture content of a resting timber plate to 28 percent within a single season.[3]

Because this moisture is trapped beneath finished flooring or behind drywall, the rot progresses entirely unseen. The Forest Products Laboratory notes that brown rot fungi can destroy up to 50 percent of a timber's structural capacity before any visible decay appears on the surface.[3]

"By the time a homeowner notices baseboards warping or smells a musty odor, the bottom plate of the wall is often completely compromised," the 2024 Forest Products Laboratory report states. The structural damage is already done.[3]

The financial impact of this hidden failure is severe. Replacing rotted bottom plates in a finished basement requires removing the drywall, shoring up the studs, and cutting out the decayed wood—a process that routinely exceeds $15,000 in labor and materials.

Prevention and Best Practices

The solution to capillary siphonage is straightforward but requires strict attention during the early phases of construction. The capillary chain must be broken permanently before the concrete slab is ever poured over the foundation.

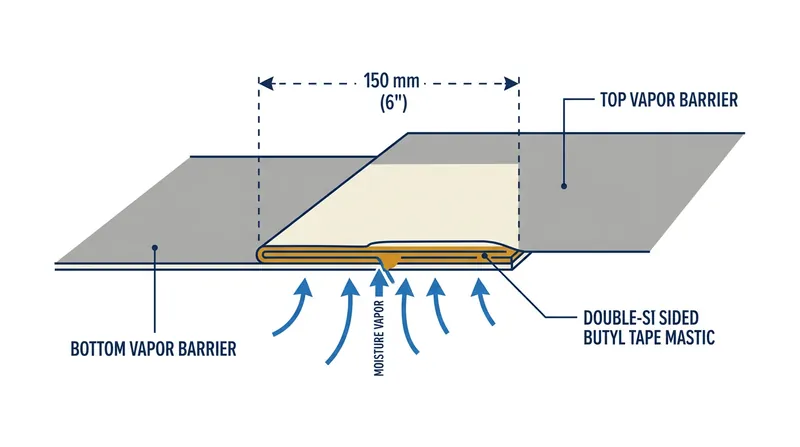

Building science experts recommend sealing every membrane overlap with a specialized double-sided butyl tape. This thick mastic creates a continuous, waterproof gasket that physically blocks the microscopic pathways water uses to climb between the sheets.

Alternatively, some modern foundation systems utilize single-piece, heavy-duty membranes that are custom-welded offsite. By eliminating the seams entirely, these systems remove the risk of capillary action, though they add roughly $1,200 to the cost of a standard residential build.[4]

For buyers purchasing a newly constructed home, verifying the sub-slab details is a critical step. Requesting construction photos of the vapor barrier before the slab was poured can reveal whether the seams were properly taped or left vulnerable.

If the plastic is simply lapped and loose, the risk of hidden moisture transport remains high. Understanding this microscopic mechanism allows owners to monitor basement humidity proactively, rather than waiting for the timber framing to fail.

Moisture meters can provide an early warning system for homeowners concerned about existing slabs. Probing the baseboards or the lower sections of drywall during the wettest months of the year can detect rising damp before the fungi take hold.

Keeping a basement dry requires respecting how water behaves under pressure. A membrane is only as effective as its weakest seam, and relying on gravity to seal a joint underground is a gamble that physics will always win.
