The 5 Principles of Passive House Design: How Super-Insulated Homes Cut Energy Bills by 90%

Most modern homes rely on a brute-force approach to comfort: when the temperature drops, a massive furnace kicks on to pump heat into the rooms, and when summer arrives, an air conditioner battles the sun to cool them down. This cycle of active climate control is expensive, noisy, and inherently inefficient, as the generated air constantly leaks through walls, roofs, and drafty windows. But a growing movement in residential and commercial construction is flipping this paradigm entirely. Instead of buying a bigger heater, architects are asking a simpler question: what if the house itself never lost the heat in the first place?[1][7]

This is the foundational philosophy behind the Passive House, or Passivhaus, standard. Born in Germany in the early 1990s under the guidance of physicist Dr. Wolfgang Feist, the concept was designed to drastically reduce a building's ecological footprint while maximizing human comfort. Feist theorized that by using specific materials and rigorous construction techniques, a building could be heated and cooled with minimal need for bought-in energy. It relies instead on "passive" sources—the sun shining through the windows, the body heat of the occupants, and the residual warmth generated by everyday appliances like ovens and televisions.[1][2]

The results of this methodology are staggering. According to decades of monitored data, certified Passive House buildings consume up to 90 percent less heating and cooling energy than older conventional housing stock, and roughly 75 percent less than average newly constructed homes. This is not a theoretical model; it is a proven, science-based performance standard that requires rigorous testing to achieve certification. The building either meets the strict energy thresholds, or it does not.[1][2]

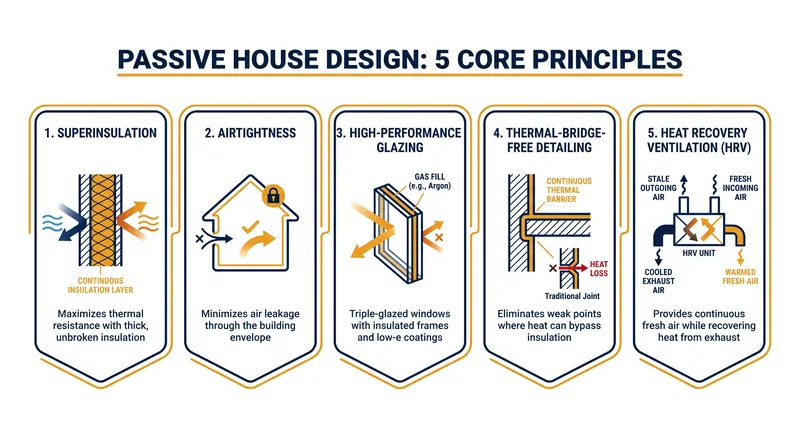

To achieve this level of extreme efficiency, the design cannot rely on a single silver bullet. Instead, it functions much like a high-quality thermos. If you pour hot coffee into a standard paper cup, the heat immediately radiates outward, burning your hand and leaving the drink cold. Pour it into a vacuum-sealed thermos, and the liquid stays hot for hours without any internal heating element. A Passive House applies this exact thermodynamic principle to human habitation, utilizing five interlocking architectural principles that must work in perfect harmony.[7]

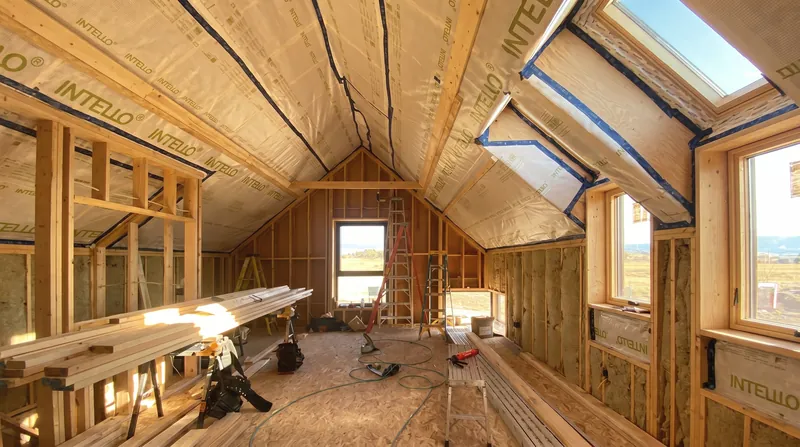

The first of these five principles is superinsulation. In a conventional home, insulation is often stuffed between wooden studs, leaving gaps and thin spots. A Passive House requires a thick, continuous layer of high-performance insulation wrapping the entire building envelope—under the foundation, up the walls, and across the roof. This continuous blanket ensures that the interior temperature remains completely isolated from the extreme weather outside, keeping the home warm in the winter and cool in the summer.[3]

The second principle is extreme airtightness. A super-insulated wall is useless if cold winter wind can blow right through the electrical outlets or under the baseboards. Passive House construction requires a meticulous "Ziploc bag" seal around the entire structure, utilizing specialized tapes and smart vapor membranes. Builders verify this seal using a "Blower Door test," which depressurizes the house to measure escaping air. To pass, the building must allow no more than 0.6 air changes per hour at 50 Pascals of pressure (ACH50)—a standard exponentially stricter than conventional building codes.[3]

Because the walls are so heavily fortified, the windows become the most critical variable. The third principle mandates high-performance glazing, typically utilizing triple-pane glass filled with insulating argon or krypton gas. These heavy-duty windows are strategically positioned and tuned for solar gain. South-facing windows are designed to capture the low winter sun, flooding the home with free radiant heat, while calculated roof overhangs or exterior shades block the high summer sun to prevent overheating.[3]

The fourth principle is the elimination of thermal bridges. A thermal bridge is a highly conductive structural element—like a steel beam, a concrete balcony slab, or even a wooden wall stud—that penetrates the insulation layer, creating a fast-track highway for heat to escape. Passive House architects use specialized thermal breaks and careful detailing at every junction and corner to ensure that the continuous insulation layer is never compromised, eliminating the cold spots that typically cause condensation and mold in standard homes.[3]

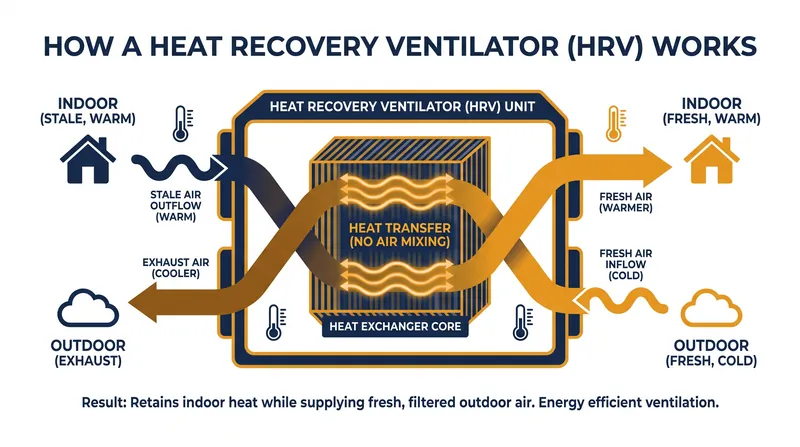

If a house is sealed as tight as a submarine, the obvious question is how the occupants breathe. This brings in the fifth and final principle: mechanical ventilation with heat recovery. A Heat Recovery Ventilator (HRV) or Energy Recovery Ventilator (ERV) acts as the lungs of the house. It continuously exhausts stale, moisture-laden air from kitchens and bathrooms while pulling in fresh, filtered outdoor air for the bedrooms and living spaces. Crucially, the two airstreams cross paths inside a heat exchanger core without ever mixing. The outgoing stale air transfers its thermal energy to the incoming fresh air, recovering up to 90 percent of the heat that would otherwise be lost.[1][3]

For decades, the primary barrier to widespread Passive House adoption was the upfront cost. Achieving this level of precision requires specialized materials, imported windows, and highly trained tradespeople. This "Green Premium" historically added 15 to 20 percent to the initial construction budget, relegating the standard to wealthy eco-enthusiasts. However, as the supply chain has matured and domestic manufacturing has scaled up, that premium has plummeted. Recent industry data shows that the upfront cost bump now averages just 3 to 8 percent above standard construction.[4][6]

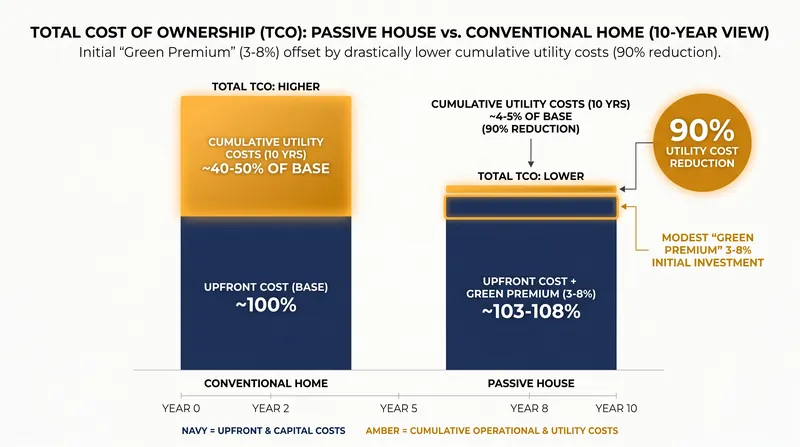

When evaluating the true financial impact, urban planners and homeowners are increasingly looking past the sticker price to the Total Cost of Ownership. While the initial mortgage might be slightly higher, that expense is immediately offset by plunging utility bills. Because the house retains its temperature so effectively, builders can completely eliminate the cost of purchasing and installing massive central furnaces and complex ductwork. The monthly cash flow often stabilizes or improves from day one, as the dramatic reduction in heating expenses outweighs the incremental mortgage increase.[4][5]

This cost parity is becoming especially evident in large-scale developments. A recent survey of 45 multifamily Passive House buildings in New York and Massachusetts found that construction costs were only 3.5 percent higher on average than conventional structures. When factoring in utility incentives, affordable housing finance programs, and federal tax credits like those in the Inflation Reduction Act, many of these high-performance buildings are now cheaper to build than their standard, energy-leaking counterparts.[4][6]

Public housing authorities are also proving that scale erases the premium. In the United Kingdom, the Exeter City Council began constructing Passivhaus social housing over a decade ago. While their early projects in 2009 faced a 20 percent cost premium, years of refining their delivery model and training local contractors have inverted the math. Today, the council delivers superior, ultra-efficient public housing at a 4 percent cost savings compared to standard UK building regulations.[7]

Beyond the financial mechanics, the standard offers a profound advantage in an era of climate instability: resilience. During extreme weather events, such as a polar vortex or a historic heatwave, power grids frequently fail. A conventional home will drop to freezing temperatures within hours of losing power. A Passive House, heavily insulated and airtight, can maintain a safe, survivable indoor temperature for days or even weeks without any active heating or cooling, protecting vulnerable residents from the elements.[1][4]

The airtight envelope and continuous mechanical ventilation also provide unparalleled indoor air quality. Because all incoming air passes through the HRV's MERV-13 or HEPA filters, the system actively scrubs out pollen, urban smog, and wildfire smoke. Residents enjoy a whisper-quiet, draft-free environment where the air is constantly refreshed, drastically reducing asthma triggers and respiratory irritants compared to the stagnant air found in many conventional homes.[4]

As governments worldwide scramble to meet aggressive carbon-reduction targets, the building sector—which accounts for a massive portion of global emissions—is facing a reckoning. The Passive House standard proves that the technology to build zero-emission, climate-resilient housing already exists, and it no longer requires a luxury budget. By shifting the focus from generating more energy to simply wasting less of it, the construction industry has a clear, proven blueprint for the future of human shelter.[1][5]
