The 2:12 Minimum Slope: How Double Underlayment Allows Asphalt Shingles on Low-Pitch Roofs

A steep 8:12 gable roof sheds water purely through gravity, relying on the simple overlap of asphalt shingles to guide rain downward before it can penetrate the deck. A low-pitch roof operates on the exact same overlapping principle, but with one critical difference: it lacks the gravitational assist required to overcome wind-driven rain and capillary action, forcing the hidden underlayment to act as the primary waterproofing barrier rather than a secondary backup.[4]

The physics of water shedding dictate how every residential roof in North America is built. When a roof's pitch drops, water drains slower, snow melts longer, and the risk of moisture moving laterally through shingle overlaps increases. To prevent catastrophic water intrusion, the 2015 and 2021 editions of the International Residential Code (IRC) establish strict mechanical boundaries for where asphalt shingles can legally be installed.[1]

Under IRC Section R905.2.2, standard asphalt shingle installation is only permitted on roofs with a slope of 4:12 or greater—meaning the roof rises at least four inches vertically for every 12 inches of horizontal run. At this angle, gravity easily overpowers the surface tension of water, allowing a single layer of standard underlayment to suffice.[1]

However, modern residential architecture frequently incorporates shallower angles for porch additions, shed dormers, and garage transitions. For these sections, the IRC defines a specific "low-slope" band ranging from 2:12 up to 4:12. In this zone, shingles are still legally permitted, but their standard installation method is fundamentally compromised.[1][2][3]

"At a very low slope, any water on the roof, whether rain water or snow melt, drains very slowly and there is a risk of lateral water movement around and through the shingle overlaps," notes manufacturer IKO. To counteract this, the building code mandates a double underlayment application for any shingle roof pitched between 2:12 and 4:12.[1]

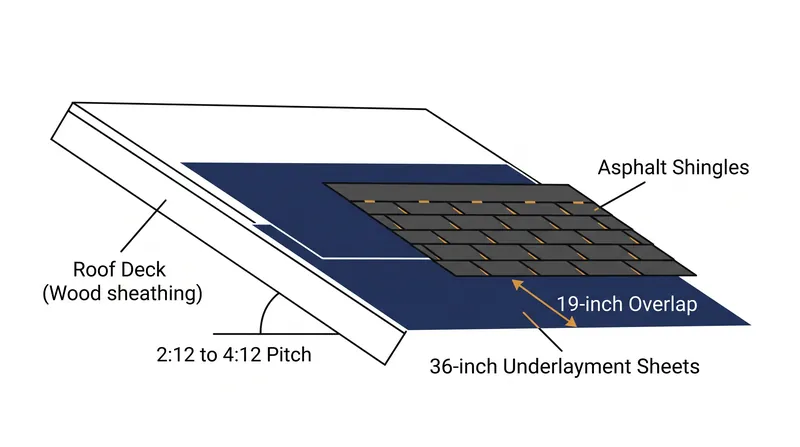

The double underlayment mechanism is highly specific. Installers cannot simply lay down two independent sheets of felt. According to IRC Table R905.1.1(2), the process requires starting with a 19-inch strip of underlayment at the eave, followed by full 36-inch-wide sheets that overlap successive courses by exactly 19 inches.[1]

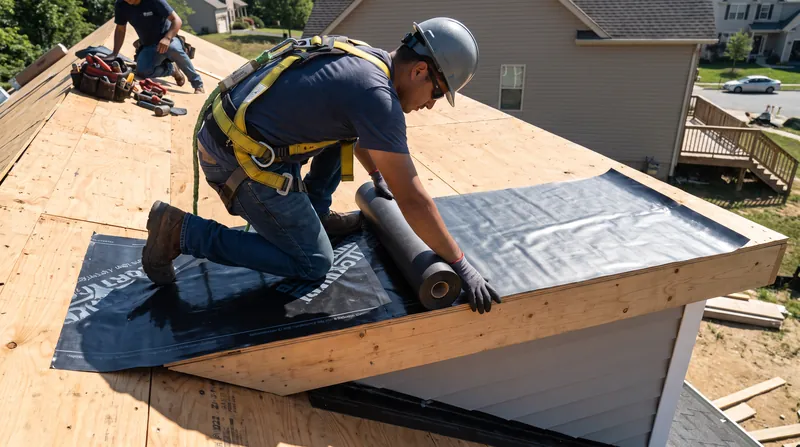

This 19-inch overlap on a 36-inch sheet ensures that every square inch of the roof deck is covered by at least two layers of felt, creating a continuous, shingle-like barrier beneath the actual asphalt shingles. Many major manufacturers, including GAF and Owens Corning, also allow contractors to substitute this two-ply felt system with a single layer of self-adhering, rubberized ice and water shield across the entire low-slope section.[1][2][3]

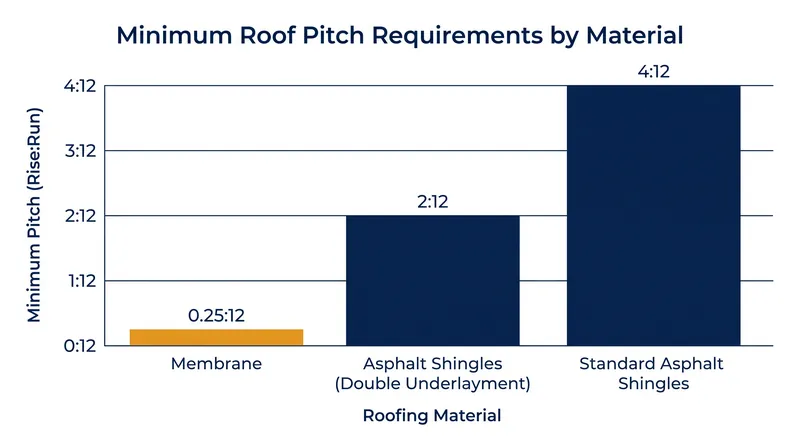

But the allowances end abruptly at the 2:12 mark. A 2:12 pitch equates to an angle of roughly 9.5 degrees, and it represents the absolute mechanical floor for asphalt shingles. "Below 2:12 there is no shingle option in the IRC at all," reports The Roofing Brief. "The roof has to change covering, not just change underlayment."

When a roof drops below 2:12, it enters the realm of flat roofing. Because water will inevitably pool at these angles, the roof requires a completely impermeable, continuous membrane system—such as EPDM rubber, TPO, or modified bitumen. Nailing thousands of individual asphalt shingles into a deck at a 1:12 pitch guarantees a leak, regardless of how much sealant is applied.[3]

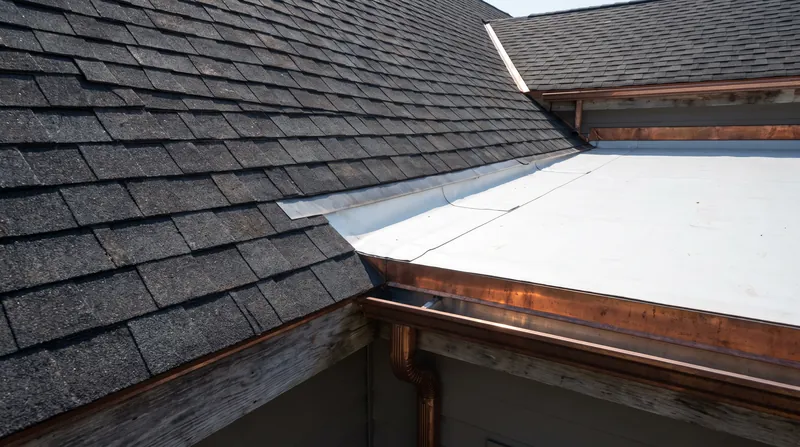

This strict 2:12 threshold is the primary failure point for mixed-pitch houses. A home with a steep main roof and a shallow rear addition carries two entirely different roofing environments. Roofing crews attempting to save time or maintain aesthetic uniformity will often run the main roof's asphalt shingles straight down over the low-slope addition without transitioning to a membrane or doubling the underlayment.[4]

AI

The consequences of ignoring the slope rules are severe. "In the case of a low slope roof, if a double layer of roof underlayment is not installed, or if the shingles are installed below the recommended minimum slope for shingles of 2:12, it is not possible to guarantee that the roof will not leak," warns GAF. Furthermore, installing shingles below the 2:12 minimum instantly voids the manufacturer's warranty.[2][3]

Roof pitch operates as a mechanical requirement, not an aesthetic suggestion. Homeowners navigating a roof replacement must ensure their contractors physically measure the slope of dormers and porches, rather than assuming standard shingles will perform across the entire structure. The angle of the deck dictates the material, and gravity cannot be bypassed by a warranty.[3][4]
