Why Fast-Closing Appliance Valves Turn Plumbing Into Acoustic Shockwave Chambers

Many plumbers and homeowners claim that a loud bang behind the drywall simply means a pipe has slipped loose from its mounting bracket. Others insist the noise is caused by trapped air bubbling through the lines. The American Society of Plumbing Engineers notes that these explanations completely misdiagnose the physics at work.

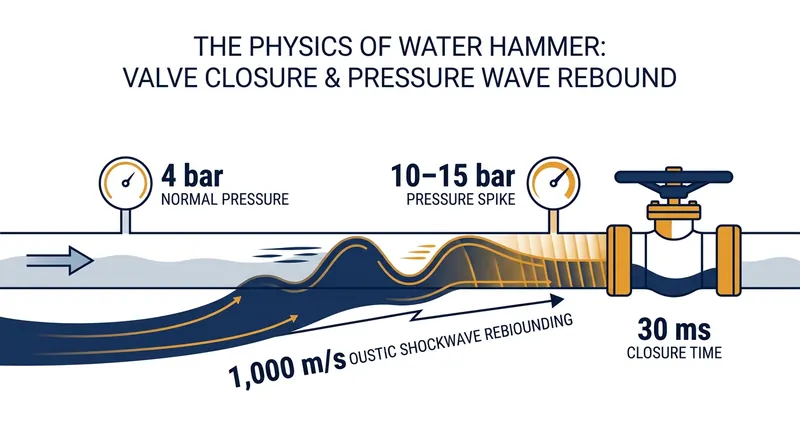

The violent shuddering is actually a 1,000-metre-per-second acoustic shockwave, a phenomenon engineers call hydraulic shock or water hammer. It occurs when a column of water traveling at high speed is forced to stop instantly. The fluid's momentum has nowhere to go, so it converts directly into a massive pressure spike.[1]

For a homeowner, this means the washing machine or dishwasher is not just making an annoying sound. It is actively turning the home's plumbing network into a high-pressure stress chamber. Every time that valve snaps shut, the resulting shockwave searches for the weakest joint in the wall.[3]

The Physics of Fluid Momentum

Water is essentially incompressible, meaning it behaves like a solid rod of glass when confined inside a copper or PEX tube. If a homeowner opens a tap, a heavy, continuous column of liquid begins moving through the house. A standard half-inch pipe holds roughly a kilogram of water per metre.[2]

When that moving mass is halted abruptly, the kinetic energy cannot simply vanish. According to the Journal of Hydraulic Engineering, the sudden deceleration compresses the water slightly and stretches the pipe wall. This creates a high-pressure acoustic wave that rebounds backward through the system.[1]

This wave travels at incredible speeds—roughly 1,000 metres per second in standard copper plumbing. It bounces between the closed valve and the municipal water main, reflecting back and forth until friction finally dissipates the energy. The banging sound is the pipe physically expanding and contracting as the wave passes.[1]

The pressure inside the pipe during this microsecond event is staggering. While standard residential water pressure sits around four bar, a hydraulic shockwave can instantly spike the internal load to 10 or even 15 bar. That is enough force to slowly deform brass fittings and weaken solder joints over time.

Why Modern Appliances Make It Worse

Older homes rarely suffered from severe water hammer because traditional plumbing fixtures used manual screw valves. Turning a bathroom faucet off takes a human hand at least a full second. That slow closure gives the moving water column time to decelerate gradually, bleeding off the kinetic energy without a pressure spike.[3]

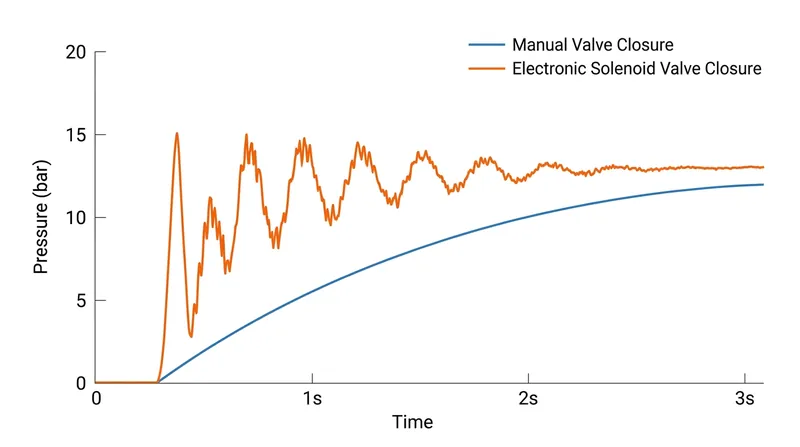

Modern high-efficiency appliances operate on a completely different mechanical principle. Washing machines, dishwashers, and smart refrigerators use electronic solenoid valves to control their water intake. These magnetic valves do not close gradually; they snap shut in as little as 30 milliseconds.

The Plumbing and Drainage Institute warns that this instantaneous closure is the primary trigger for modern hydraulic shock. Their engineering standard explicitly notes that "fast-acting valves generate pressure transients that far exceed the safe working limits of standard piping." Because the valve shuts faster than the acoustic wave can travel, the system experiences the maximum theoretical pressure spike.[2]

For a homeowner upgrading to a new smart appliance, the result is often an immediate and terrifying banging in the walls. The new machine is simply halting the water faster than the old one did. This exposes the rigid copper pipes to violent kinetic energy transfers they were never designed to handle.[3]

The Hidden Cost of Pressure Spikes

The immediate annoyance of a rattling wall is only the superficial symptom of a much deeper mechanical problem. Every time a 10-bar shockwave rips through a home's plumbing, it stresses the weakest points in the network. Rubber washing machine hoses are particularly vulnerable to these extreme pressure cycles.

Over months and years, the repeated expansion and contraction fatigues the metal at soldered elbows and threaded connections. The Journal of Hydraulic Engineering notes that hydraulic shock is a leading cause of premature catastrophic failure in domestic water systems. These failures often result in sudden, massive leaks behind finished drywall.[1]

Plastic PEX piping absorbs some of this energy better than rigid copper because the tubing itself can expand slightly. However, the plastic-to-metal crimp rings used to join PEX segments still bear the brunt of the shockwave. Eventually, the constant hammering can cause these mechanical seals to slip or fail entirely.[3]

Appliance lifespans are also shortened by the constant battering. The delicate plastic components and sensors inside a modern dishwasher are subjected to the same 15-bar spikes as the copper pipes. Protecting the home's infrastructure requires addressing the physics of the moving water column directly.[2]

Arresting the Acoustic Wave

Plumbers historically tried to solve water hammer by installing vertical dead-end pipes, known as air chambers, near the valves. The theory was that trapped air would compress and act as a shock absorber. However, water gradually absorbs this air, rendering the chambers completely useless within a few years.

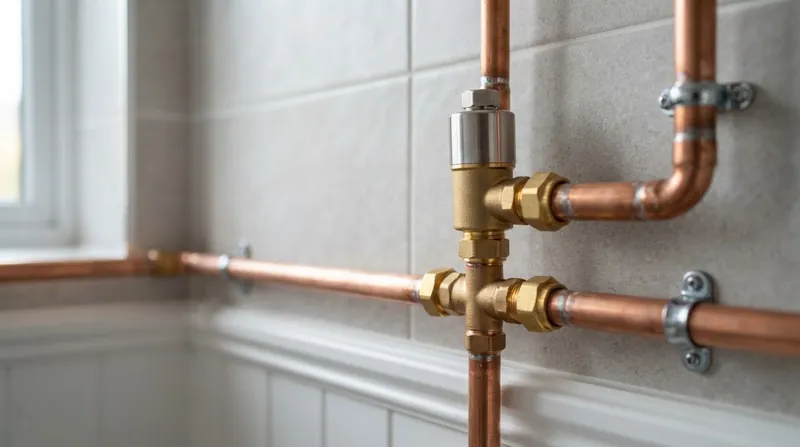

The modern, permanent solution is a mechanical water hammer arrester. These small, cylindrical devices contain a pressurized chamber of nitrogen gas separated from the water supply by a sliding piston or a rubber diaphragm. They act as dedicated, sealed shock absorbers for the plumbing system.[2]

When a washing machine solenoid snaps shut and the 1,000-metre-per-second wave hits the arrester, the water pushes against the piston. The nitrogen gas compresses, absorbing the kinetic energy safely. This prevents the pressure spike from traveling back into the rigid copper pipes.[1]

The American Society of Plumbing Engineers mandates that these arresters be installed as close to the fast-closing valve as possible. If the arrester is placed too far away, the shockwave still has enough runway to rattle the pipes. The nitrogen chamber must absorb the blow before the wave hits a vulnerable fitting.

For homeowners facing a sudden onset of banging pipes, the fix is often entirely external. Screw-on arresters can be attached directly to the back of a washing machine, sitting between the appliance and the supply hose. This simple intervention stops the acoustic wave before it ever enters the wall.[3]

Managing Baseline Pressure

Beyond mechanical arresters, managing the home's baseline water pressure is a critical defensive step. If the municipal supply enters the house at six or seven bar, the baseline is already dangerously high. A pressure reducing valve at the main can lower this to a safe three bar.

Lowering the starting pressure means the water column travels slightly slower, and the resulting shockwave from a closed valve is exponentially weaker. By combining regulated baseline pressure with targeted nitrogen arresters, homeowners can completely silence the acoustic shockwaves. This dual approach protects their plumbing from premature failure and costly repairs.[3]
