Henry's Law Dissolves the Air Cushion: Why Capped Pipe Chambers Inevitably Waterlog and Fail to Stop Water Hammer

Old-school plumbers look at a modern mechanical water hammer arrestor and see an expensive, over-engineered point of failure. For decades, the standard practice was simply to solder a 12-inch vertical length of capped copper pipe behind a washing machine or sink.[1]

This simple "air chamber" trapped a pocket of atmospheric air, providing a compressible cushion to absorb the violent hydraulic shock of a suddenly closed valve. It had no moving parts, cost pennies in scrap copper, and worked perfectly on the day it was installed.

But modern code officials and mechanical engineers look at that same capped pipe and see a physics violation waiting to happen. They mandate manufactured arrestors with sealed internal pistons, arguing that the traditional air chamber is doomed by the fundamental laws of chemistry.[2]

The disagreement centers on a principle formulated in 1803 by English chemist William Henry. Henry’s Law dictates that the amount of gas dissolved in a liquid is directly proportional to the partial pressure of that gas above the liquid.[3]

In a residential plumbing system, that physical law acts as a slow, invisible clock. The static pressure of the municipal water supply forces the trapped air cushion to dissolve into the passing water, inevitably rendering the chamber useless.[4]

The Physics of Hydraulic Shock

To understand why the air cushion is there in the first place, one must look at the kinetic energy of moving water. When a faucet is open, a solid column of water flows through the pipes at high velocities.

If a valve closes slowly, that column decelerates gently. But modern appliances rely on solenoid valves that snap shut instantly. Washing machines, dishwashers, and ice makers halt the flow of water in a fraction of a second.[1]

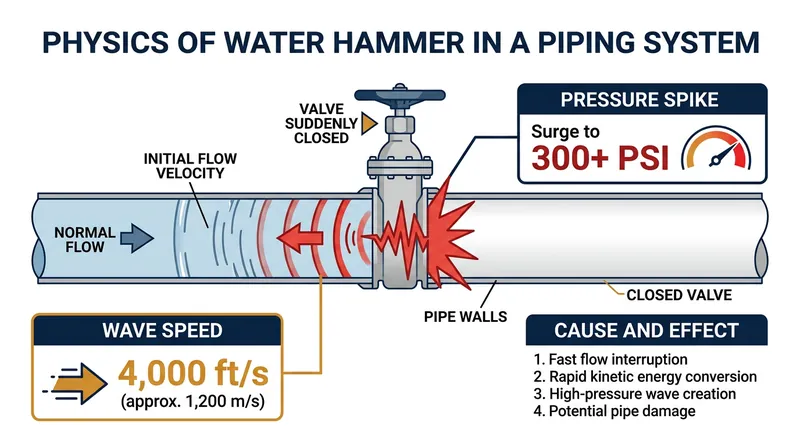

Because water is essentially incompressible, that sudden halt creates a massive pressure spike. The kinetic energy converts into a shockwave that travels backward through the piping system at roughly 4,000 feet per second, a phenomenon known as water hammer.

Engineers calculate this force using the Joukowsky equation, which shows that the pressure rise is directly proportional to the fluid density, the wave speed, and the change in velocity. A sudden stop can easily generate a localized spike exceeding 300 pounds per square inch.

This violent force causes the pipes to bang against the wall framing, stresses soldered copper joints, and can eventually burst the rubber supply hoses connected to the back of the washing machine.

The traditional defense was the air chamber. Because gases are highly compressible, a trapped pocket of air acts like a shock absorber. When the pressure wave hits, it compresses the air pocket instead of rupturing the copper pipe.[1]

Henry's Law and the Dissolution Problem

The fatal flaw of the capped pipe is that nothing separates the air from the water. The two substances sit in direct contact under the continuous static pressure of the home’s plumbing system, which typically ranges from 40 to 80 psi.[1]

According to Henry’s Law, elevating the pressure of a gas increases its solubility in a liquid. At a standard 60 psi, the water is under roughly four atmospheres of pressure, forcing the nitrogen and oxygen molecules in the trapped air to dissolve across the interface.[3][4]

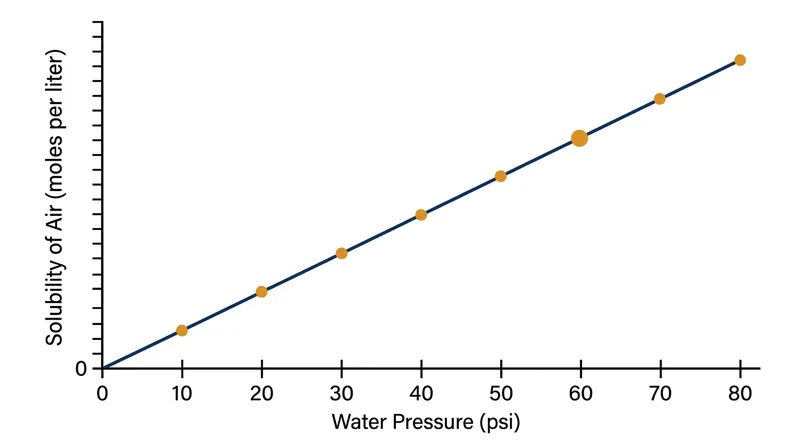

The solubility of air in water is approximately 7.9 × 10^-4 moles per liter at 20°C and one atmosphere. When the pressure quadruples, the water’s capacity to absorb that air quadruples alongside it.[3]

If the water in the pipe were completely stagnant, the system would eventually reach equilibrium and the dissolution would stop. But a plumbing system is dynamic. Every time the fixture is used, fresh water flows past the base of the chamber.

That fresh water absorbs a little more of the trapped air and carries it down the drain. Over a period of weeks or months, the entire 12-inch pocket of air is systematically dissolved and washed away.

The Waterlogged Dead Leg

Once the air is gone, the vertical pipe fills entirely with water. Plumbers refer to this state as being "waterlogged." Because the chamber is now filled with an incompressible liquid, it offers absolutely zero shock absorption.[1]

The destructive water hammer returns, often startling homeowners who assume their plumbing is protected. The only way to restore the traditional air chamber is to shut off the main water supply, open all the faucets, and completely drain the house to let air back in.

This draining process is a temporary fix. As soon as the system is re-pressurized, Henry’s Law resumes its work, and the countdown to the next waterlogged chamber begins again.[3]

Beyond the loss of shock absorption, a waterlogged air chamber creates a secondary hazard. It becomes a "dead leg"—a stagnant branch of piping where water sits at room temperature without circulating, creating an ideal breeding ground for bacterial growth.

The ASSE 1010 Mechanical Barrier

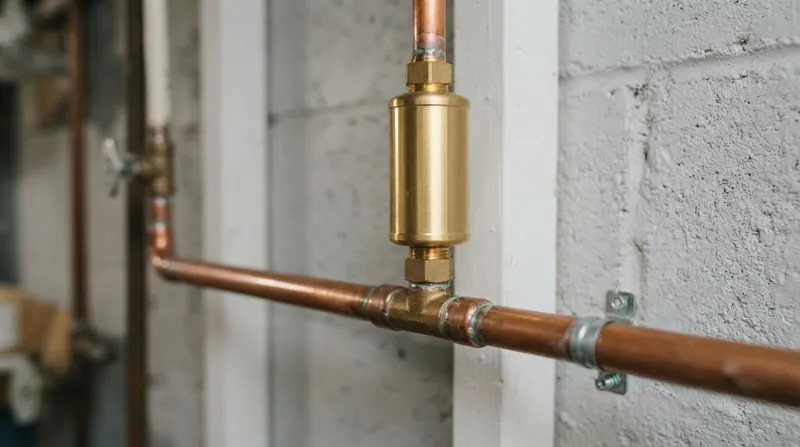

The modern solution to the Henry’s Law problem is the mechanical water hammer arrestor. Rather than relying on a raw pocket of air, these manufactured devices isolate the compressible gas from the water using a physical barrier.

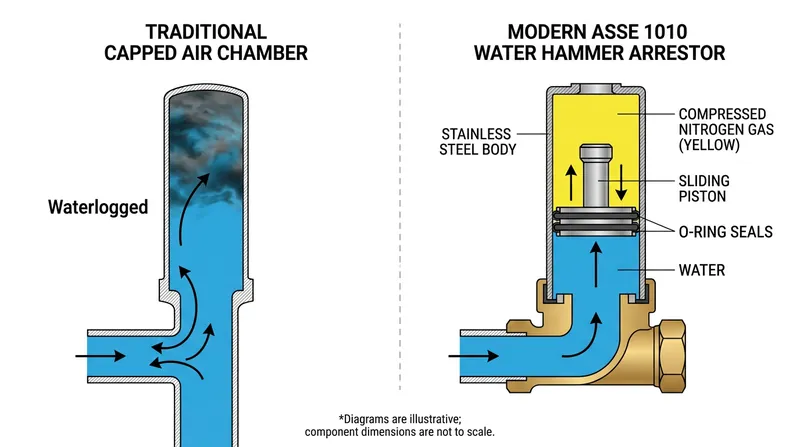

A standard arrestor consists of a copper or stainless steel cylinder containing a sliding piston equipped with rubber O-rings. Above the piston is a factory-sealed chamber charged with pressurized nitrogen gas; below it is the system water.

When a solenoid valve snaps shut, the hydraulic shockwave pushes the piston upward, compressing the nitrogen to absorb the blow. Because the O-rings maintain a watertight seal, the nitrogen never touches the water and cannot dissolve.

To earn the ASSE 1010 certification, a mechanical arrestor must survive a grueling endurance test. The standard requires the device to withstand 10,000 cycles of hydraulic shock without failing, leaking, or losing its pressurized gas charge.[2]

The publication of the 2000 model plumbing codes marked the official end of the capped pipe. The International Plumbing Code Section 604.9 now explicitly requires that water hammer arrestors be installed wherever quick-closing valves are utilized.[2]

Both the International Plumbing Code and the National Standard Plumbing Code do not recognize the use of this air chamber. The codes mandate that all arrestors conform to the rigorous ASSE 1010 performance standard.[1][2]

The transition from simple capped pipes to mechanical arrestors is not a case of manufacturers pushing unnecessary gadgets. It is a necessary correction to a century-old plumbing practice that worked in the short term, but fundamentally ignored physical chemistry.[5]
