Why Fresh Silicone Caulk Fails to Bond to Cured Silicone Beads

Fresh silicone caulk fails to bond to old silicone because the cured bead presents a thermodynamic and chemical barrier that the new sealant cannot cross. The existing silicone possesses an extremely low surface energy of roughly 21 millinewtons per meter (mN/m), which physically prevents the fresh liquid from wetting the surface.[1]

At the same time, the old bead is fully crosslinked after its initial 24-hour curing window. Its chemical curing process is complete, meaning it has no available reactive sites to form molecular bonds with the fresh application.[5]

For a homeowner or renter trying to patch a leaky shower corner, this means applying a fresh layer of caulk over an old one is a guaranteed failure. The new bead will simply rest on top of the old one, eventually peeling away cleanly as soon as the joint flexes.[3]

The Physics of Surface Energy and Wetting

To understand why nothing sticks to silicone, you have to look at how adhesives interact with solid surfaces. Every material has a specific surface energy, which dictates how well a liquid can spread out and make intimate contact with it.[2]

This spreading process is known as wetting, and it is the absolute prerequisite for adhesion. High-energy surfaces, like glass or bare metal, pull liquids flat, allowing adhesives to anchor themselves at the microscopic level and establish a durable mechanical grip.[4]

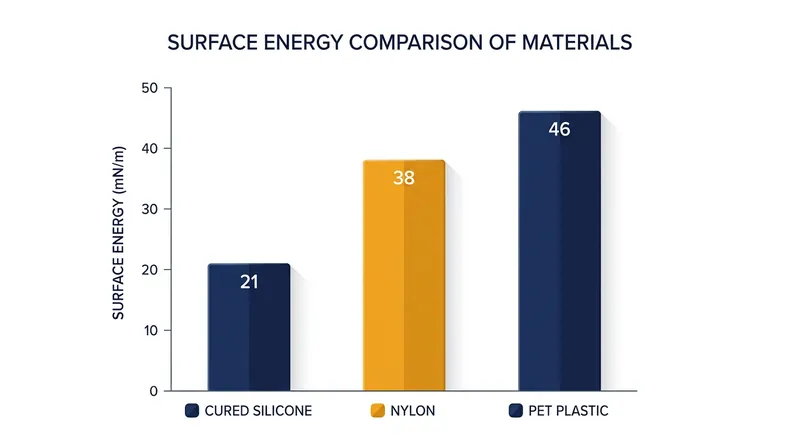

Cured silicone, however, is notoriously inert. Its surface energy sits between 20 and 24 mN/m, which is drastically lower than the 38 mN/m typical of nylon or the 46 mN/m of standard PET plastics.[4]

Because the fresh silicone caulk has a higher surface tension than the cured bead's surface energy, the liquid sealant refuses to spread flat. Instead, it tries to bead up, minimizing its contact area with the old caulk.[1]

"Silicone does not bond easily to itself, even when both parts are made from the same material," notes ElastoStar Rubber Corporation in their technical guidance. "This is because cured silicone has extremely low surface energy, which prevents most adhesives from forming a reliable bond."[2]

The Chemistry of Silicone Crosslinking

Even if the physical wetting problem could be solved, an impenetrable chemical barrier remains. Silicone sealants cure through a process called room-temperature vulcanization, or RTV, which relies on atmospheric moisture to trigger a structural reaction.[1]

During this curing phase, the liquid silicone reacts with moisture in the air to form long, flexible siloxane polymer chains. These chains crosslink with one another, transforming the gooey paste into a tough, rubbery solid over 24 to 72 hours.[5]

When two pieces of uncured silicone are pressed together, their polymer chains crosslink across the boundary, fusing into a single continuous mass. Properly prepared RTV silicone bonds can achieve tensile strengths of 100 to 400 psi.[1]

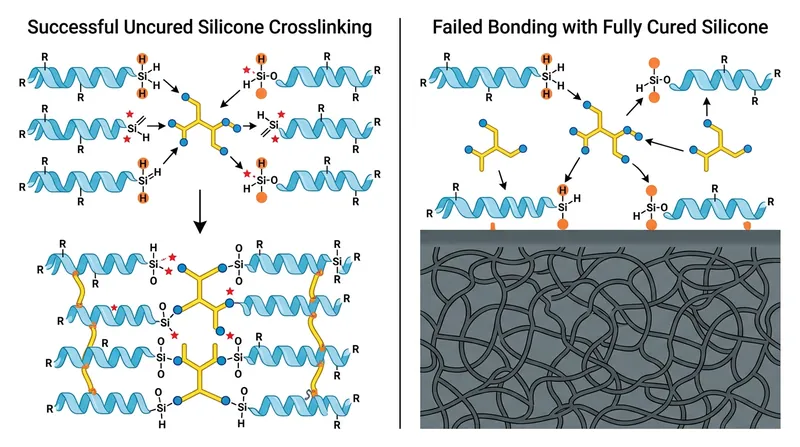

However, once a silicone bead is fully cured, that chemical reaction is entirely finished. Every available reactive site on the polymer chains has been consumed by the initial curing process, leaving the surface chemically inert.[6]

When you apply fresh silicone over this fully cured bead, the new sealant undergoes its own crosslinking process internally, but it cannot find any open chemical bonds on the old surface to grab onto.[1]

The result is two separate pieces of rubber sitting tightly against each other, but sharing absolutely no molecular connection. Under a microscope, the boundary between the two layers remains sharply defined and structurally weak.[2]

Contamination and Micro-Separation

In a real-world bathroom or kitchen, the adhesion problem is compounded by environmental contamination. An old silicone bead is rarely pristine; its surface is typically coated in microscopic layers of soap scum, body oils, and hard water minerals.[3]

"Once the sealant cures, it forms a skin," explains GE Sealants regarding residential applications. "When you apply silicone over old sealant, you're bonding to that skin, not the actual surface, and that layer is often contaminated."[3]

Furthermore, older silicone can experience plasticizer migration. Low-molecular-weight siloxanes and oils slowly rise to the surface of the cured bead over time, creating an invisible, slippery film that further repels new adhesives.[2]

When a homeowner applies fresh caulk over this contaminated layer, the new sealant bonds to the dirt and oil rather than the silicone itself. Even if the new bead looks perfectly smooth upon application, the lack of a true bond creates a severe vulnerability.[3]

As the bathtub or sink flexes under weight, the unbonded edges experience micro-separation. This invisible gap allows water and mildew spores to slip between the old and new layers of caulk, accelerating the failure and causing the fresh bead to lift.[3]

Cohesive Versus Interfacial Failure

Industrial adhesive engineers measure bond strength by looking at how a joint fails under stress. A successful bond results in cohesive failure, where the adhesive itself tears before the bond line gives way.[5]

Applying fresh silicone over cured silicone inevitably results in interfacial failure. This means the bond breaks cleanly exactly at the boundary between the two materials, leaving the old bead perfectly intact and the new bead peeling away in long strips.[5]

In manufacturing environments, engineers overcome this interfacial failure by using specialized silane-based primers. These primers act as a chemical bridge, with one end bonding to the cured silicone and the other providing reactive sites for the new adhesive.[2]

Industrial applications also use plasma or corona treatments to temporarily blast the silicone surface with energy, raising its surface energy to roughly 38 mN/m just long enough to apply a new coating.[4]

Alternatively, technicians might scuff the surface with 220 to 400 grit sandpaper to create mechanical grip. However, these techniques require precise timing and controlled environments, making them entirely impractical for a residential bathroom repair.[1]

Why Complete Removal is Mandatory

Because of these unyielding physical and chemical laws, there is no reliable shortcut for repairing a degraded silicone seal. The old bead must be completely removed to expose the high-energy substrate beneath it.[3]

Scraping away the bulk of the old caulk is only the first step. Even a microscopic smear of cured silicone left on the tile or tub will retain that 21 mN/m surface energy, creating a dead zone where the new caulk will fail to adhere.[3]

Homeowners must use a dedicated silicone remover or mineral spirits to dissolve the invisible residue. This should be followed by a thorough cleaning with isopropyl alcohol to leave the surface completely bare and ready for adhesion.[1]

Only when the fresh silicone caulk can wet a high-energy surface like porcelain or glass, and crosslink securely against it, will the resulting seal remain watertight. Attempting to bypass this chemistry will only guarantee a second repair job weeks later.[3]
